Conrader CTLB1212 In-Tank Check Valve - 1/2" FNPT x 1/2" MNPT, 1/8" Unloader

Conrader CTLB1212 In-Tank Check Valve - 1/2" FNPT x 1/2" MNPT, 1/8" Unloader

$25.95 USD
$25.95 USD
Sale Sold out
Orders $25 or more ship free to the lower 48. Shipping details.
Condition : New
Tell a friend
View full details

Product Description

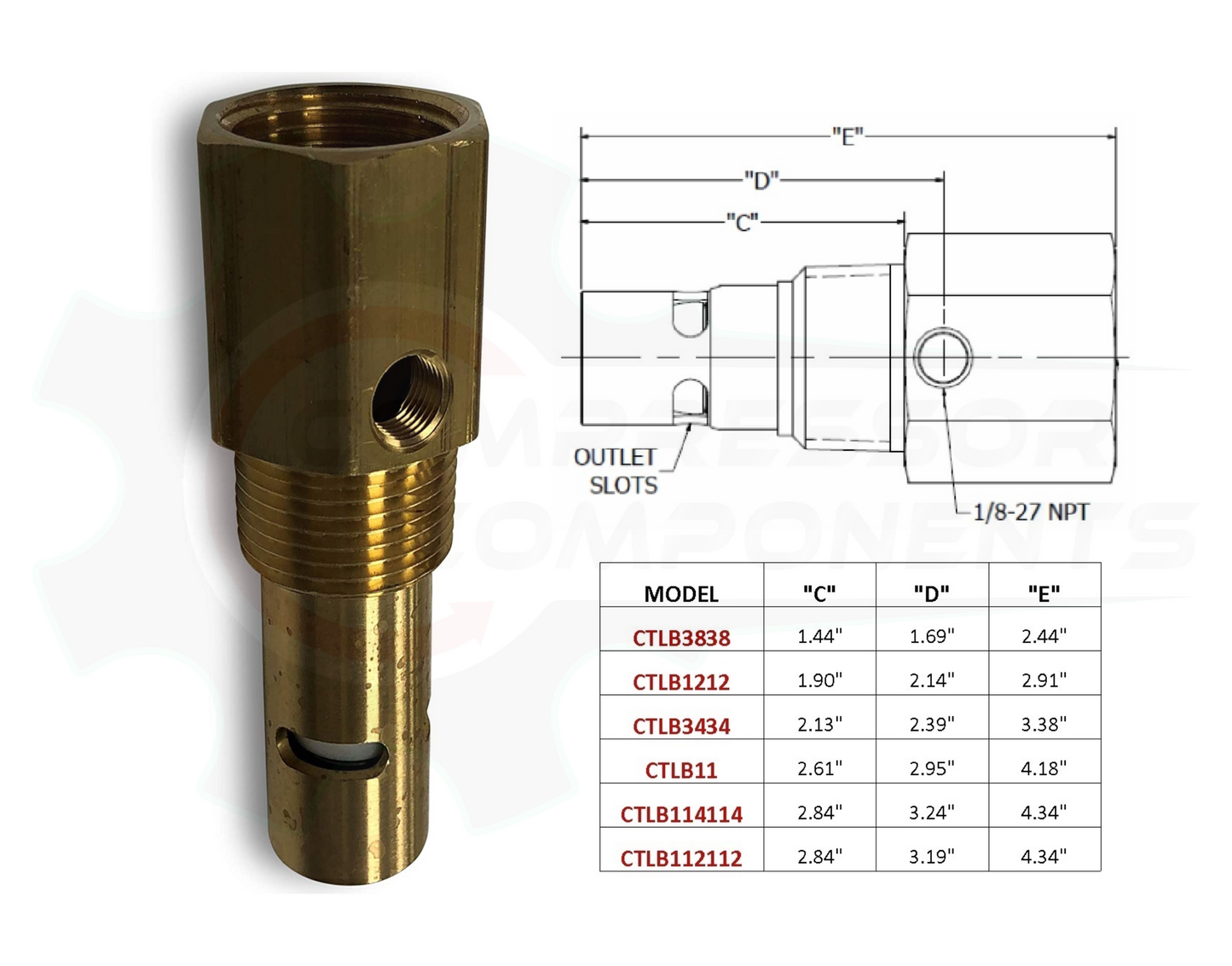

Conrader CTLB1212 one-piece brass in-tank air compressor check valve with a 1/2" FNPT compressor-side inlet, 1/2" MNPT tank connection, and 1/8" FNPT unloader port.

Specifications

Manufacturer part number CTLB1212
Conrader numeric reference 5849
Construction One-piece brass body
Compressor-side inlet 1/2" FNPT
Tank connection 1/2" MNPT
Unloader port 1/8" FNPT
Maximum flow 20 SCFM
Maximum pressure 500 PSI
Maximum temperature 450°F

Existing CDI cross-reference: P5050T

Verified Cross-Reference

  • SVI: AS-4400-127

Selection note: Verify the 1/2" female compressor-side connection, 1/2" male tank connection, and 1/8" unloader-port requirement before ordering.
