Conrader CTLB1212-TT In-Tank Check Valve - 1/2" FNPT x 1/2" MNPT, Dual 1/8" Ports

Conrader CTLB1212-TT In-Tank Check Valve - 1/2" FNPT x 1/2" MNPT, Dual 1/8" Ports

$25.95 USD
$25.95 USD
Sale Sold out
Orders $25 or more ship free to the lower 48. Shipping details.
Condition : New
Tell a friend
View full details

Product Description

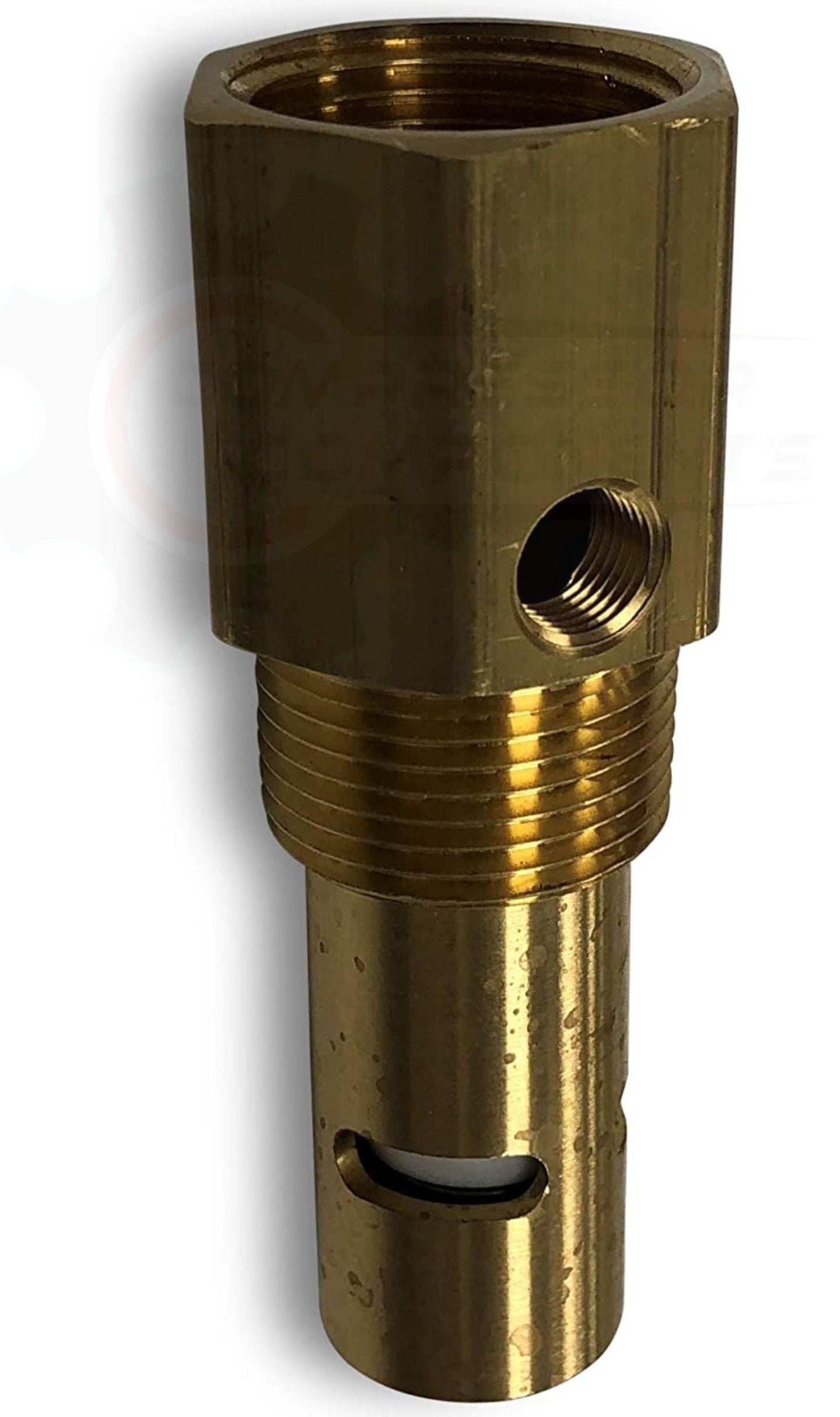

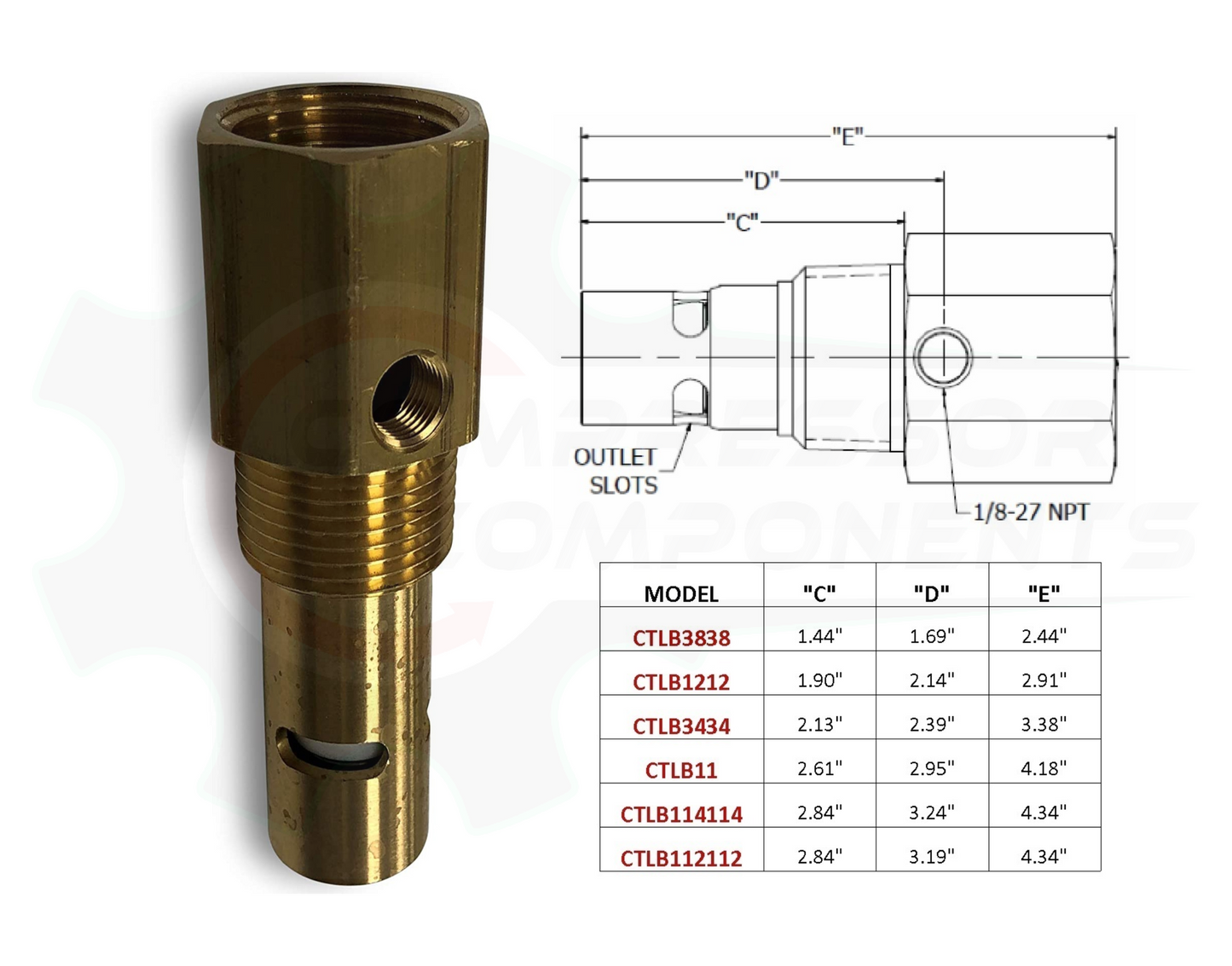

Conrader CTLB1212-TT one-piece brass in-tank air compressor check valve with a 1/2" FNPT compressor-side inlet, 1/2" MNPT tank connection, and two 1/8" NPT tapped auxiliary/unloader ports.

Specifications

Manufacturer part number CTLB1212-TT
Construction C360 machined one-piece brass body
Spring 302 stainless steel
Poppet Glass-filled PTFE
Compressor-side inlet 1/2" FNPT
Tank connection 1/2" MNPT
Auxiliary / unloader ports Two 1/8" NPT tapped ports
Rated flow 20 SCFM
Maximum pressure 500 PSI
Maximum temperature 450°F

Existing CDI cross-reference: P5050TT

Selection note: Verify the 1/2" female inlet, 1/2" male tank connection, and dual tapped-port requirement before ordering.
