Conrader CTB121 Two-Piece In-Tank Check Valve - 1/2" FNPT x 1" MNPT, 1/8" Unloader

Conrader CTB121 Two-Piece In-Tank Check Valve - 1/2" FNPT x 1" MNPT, 1/8" Unloader

$58.95 USD
$58.95 USD
Sale Sold out
Orders $25 or more ship free to the lower 48. Shipping details.
Condition : New
Tell a friend
View full details

Product Description

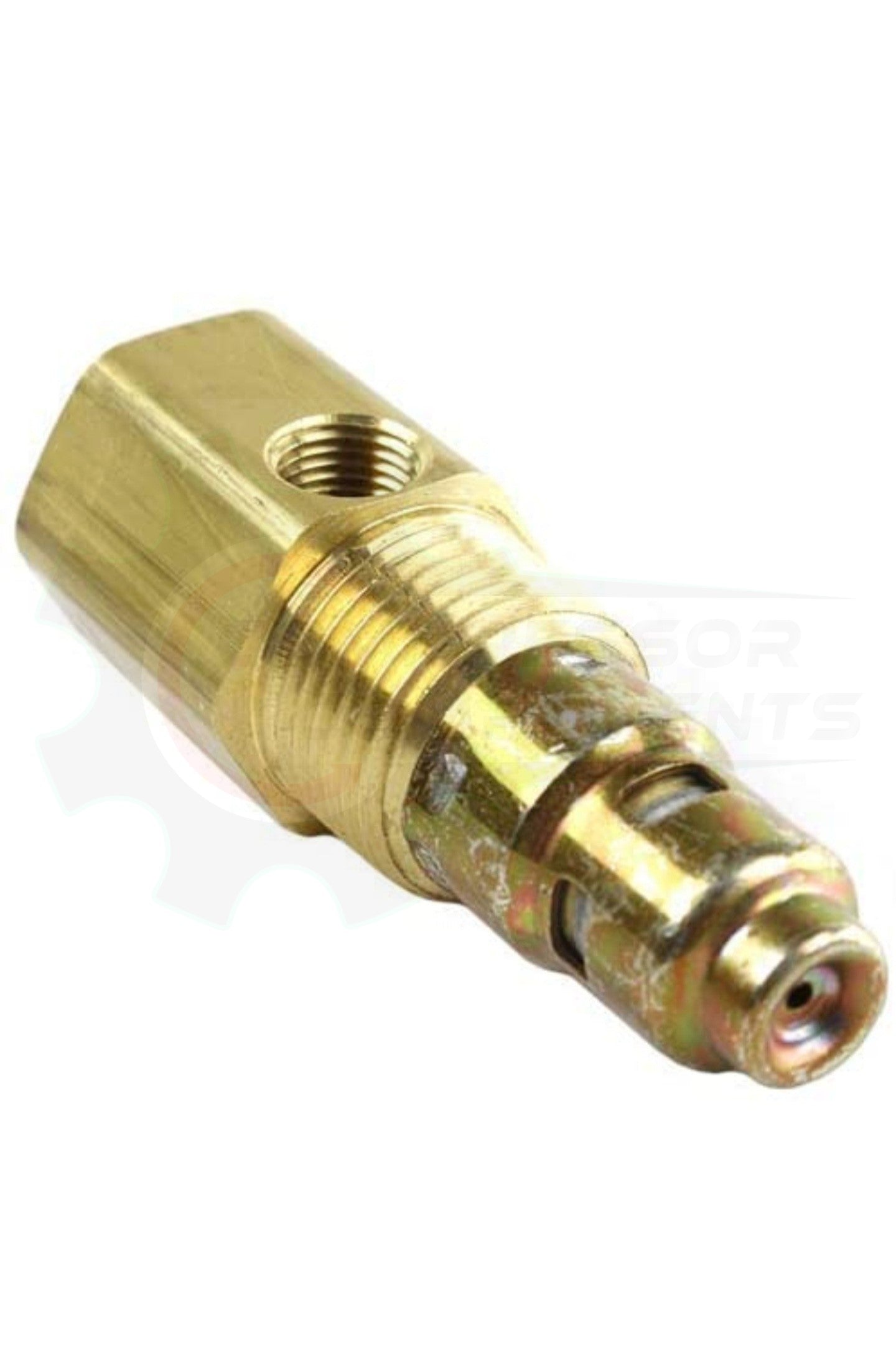

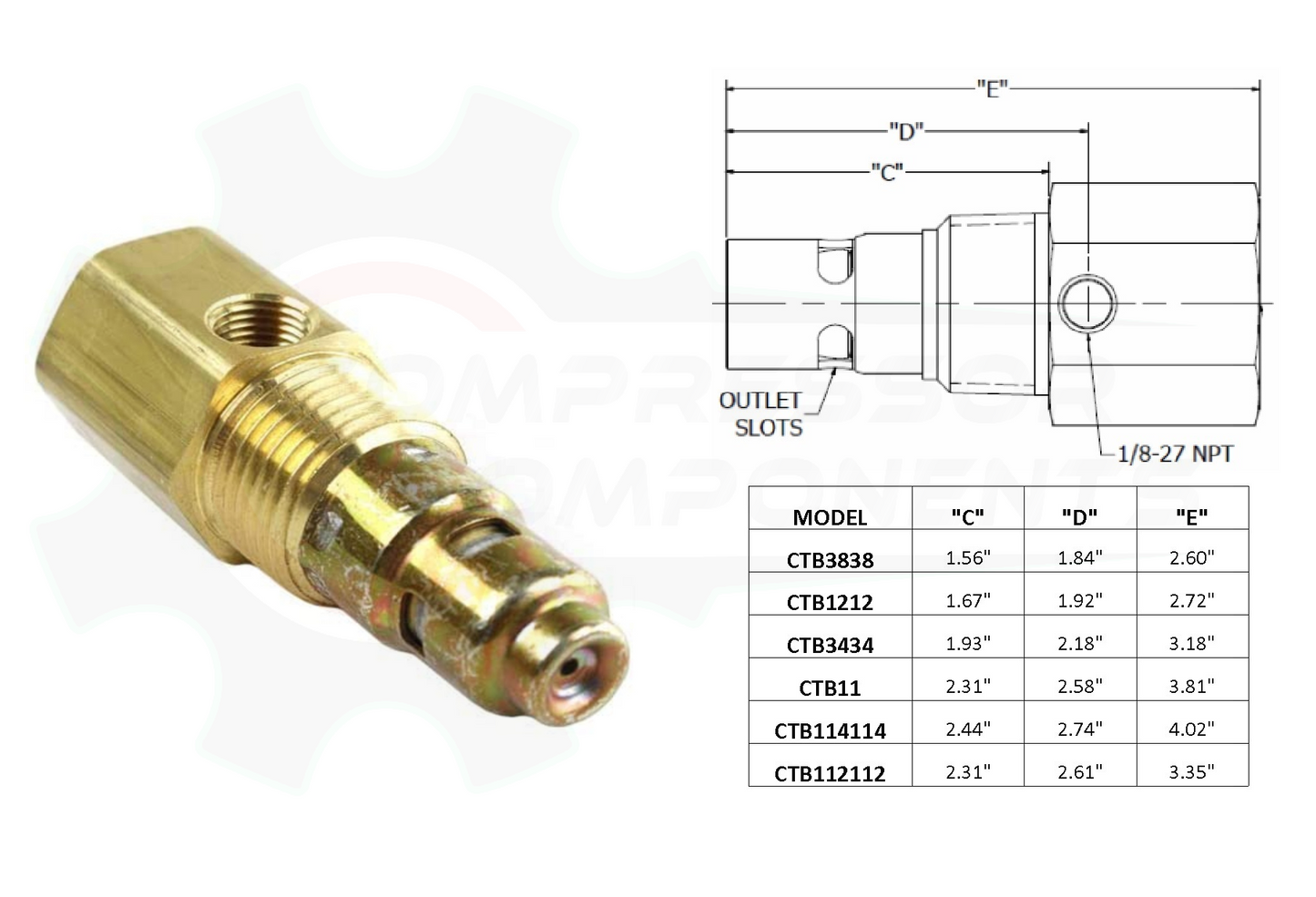

Conrader CTB121 two-piece brass in-tank air compressor check valve with a 1/2" FNPT top inlet, 1" MNPT tank outlet, and standard 1/8" FNPT side/unloader port.

Specifications

Manufacturer part number CTB121
Conrader numeric reference 0583
Construction Two-piece brass body
Top inlet 1/2" FNPT
Tank outlet 1" MNPT
Side / unloader port 1/8" FNPT
Rated flow 60 SCFM at 100 PSIG
Flow factor Cv 6.3
Cracking pressure 0.7 PSI
Maximum pressure 500 PSI
Operating temperature -65°F to 450°F

Selection note: Verify the 1/2" female inlet, 1" male tank connection, and 1/8" side-port requirement before ordering.
