Conrader CTB1234 Two-Piece In-Tank Check Valve - 1/2" FNPT x 3/4" MNPT, 1/8" Unloader

Conrader CTB1234 Two-Piece In-Tank Check Valve - 1/2" FNPT x 3/4" MNPT, 1/8" Unloader

$24.95 USD
$24.95 USD
Sale Sold out
Orders $25 or more ship free to the lower 48. Shipping details.
Condition : New
Tell a friend
View full details

Product Description

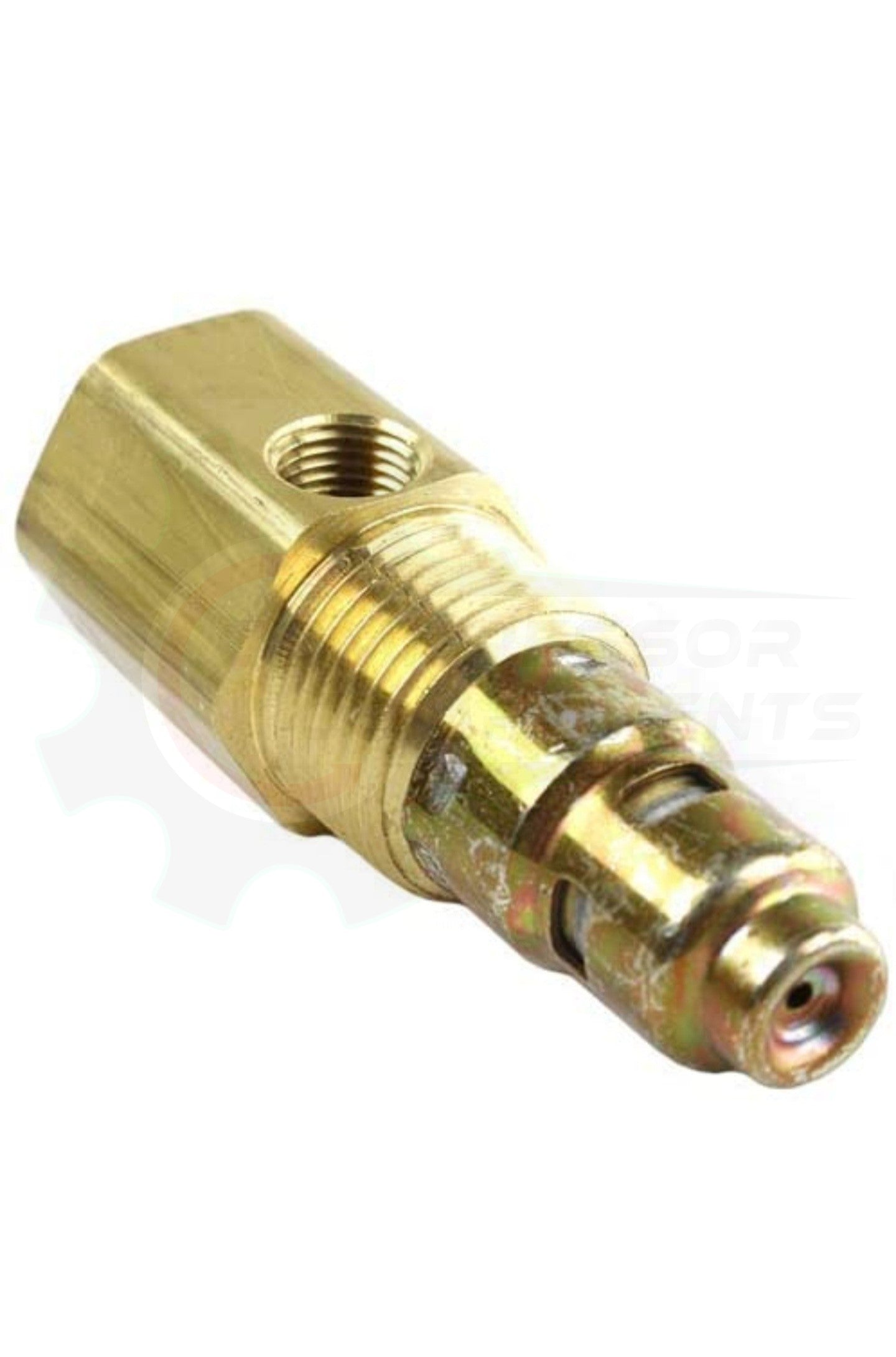

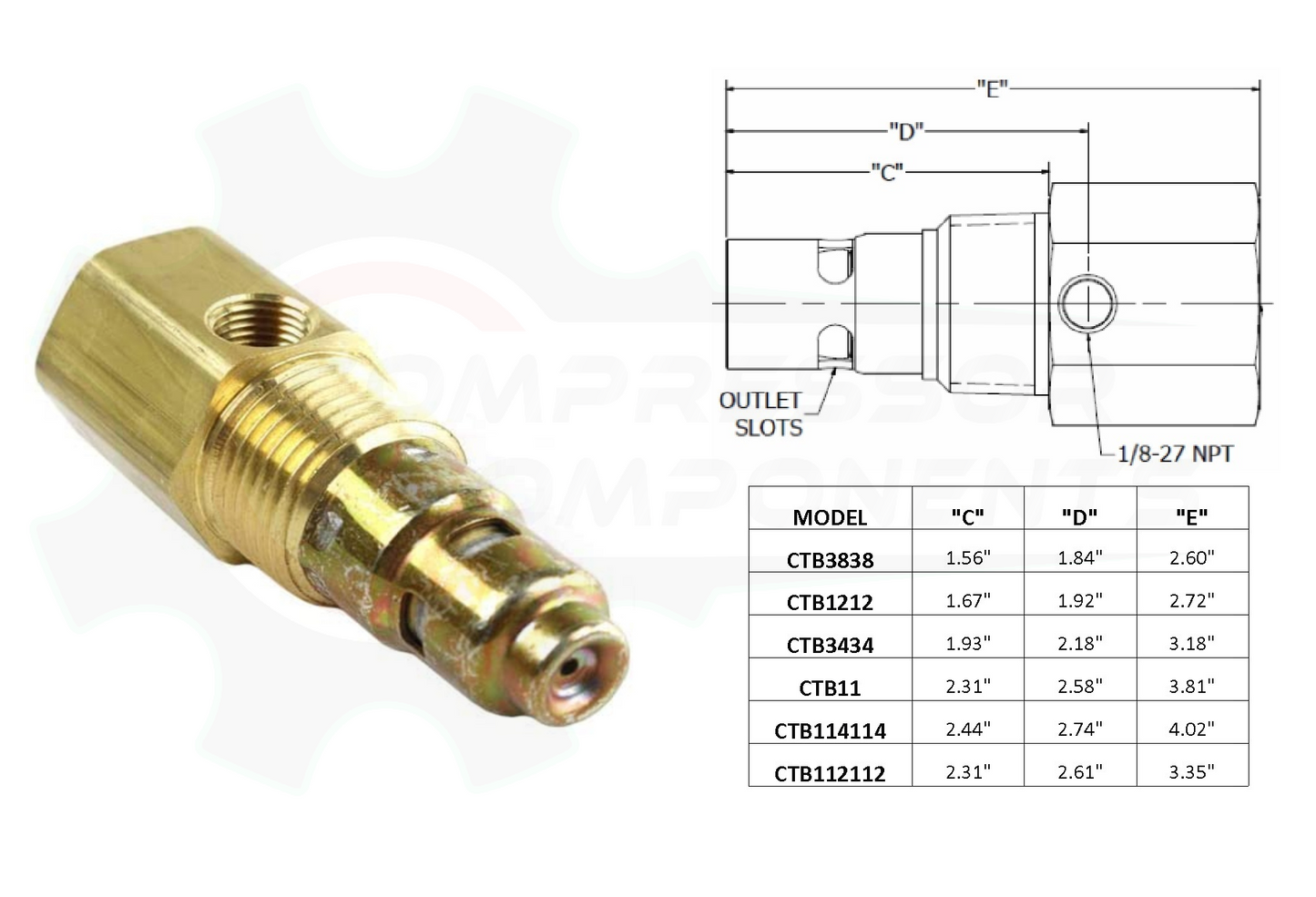

Conrader CTB1234 two-piece brass in-tank air compressor check valve with a 1/2" FNPT top inlet, 3/4" MNPT tank outlet, and 1/8" FNPT side port for the unloader line. Helps prevent receiver air from flowing back into the compressor discharge line.

Specifications

Manufacturer part number CTB1234
Conrader numeric reference 0580
Construction Two-piece brass body
Top inlet 1/2" FNPT
Tank outlet 3/4" MNPT
Side / unloader port 1/8" FNPT
Rated flow 30 SCFM at 100 PSIG
Flow factor Cv 3.9
Cracking pressure 0.5 PSI
Maximum operating pressure 500 PSI
Operating temperature -65°F to 450°F

Cross-Reference

  • CDI P5075T

Selection note: Match the inlet and tank threads, unloader-port location, valve clearance, and required flow before ordering. FNPT denotes female NPT; MNPT denotes male NPT.
