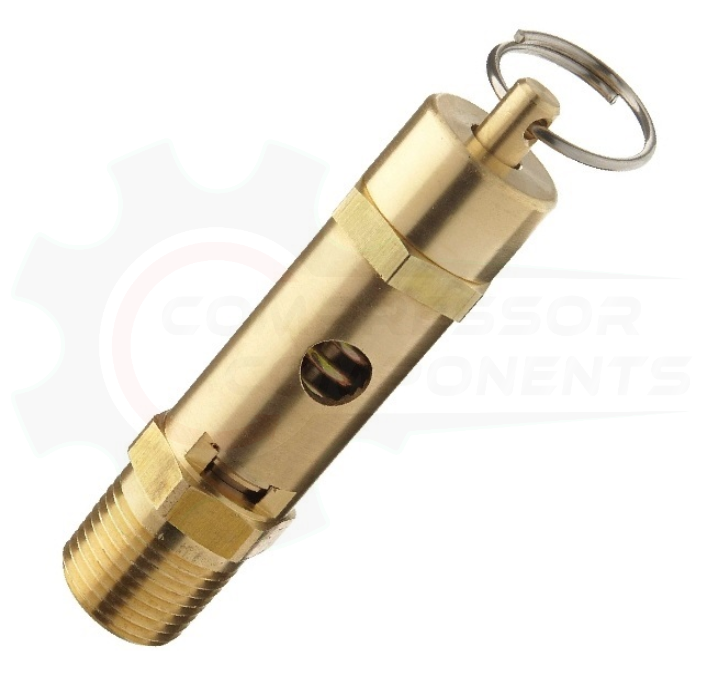

Kingston 118CSS-4 Hard-Seat Safety Relief Valve
The Kingston 118CSS-4 is a high-flow brass safety relief valve with a 1/2" male NPT inlet for compressed-air pressure protection. Its stainless steel ball seats against a machined metal seat, and the pull ring permits manual testing. Choose the factory-set pressure required by your equipment.
Specifications
| Manufacturer | Kingston |
|---|---|
| Model | 118CSS-4 |
| Inlet connection | 1/2" male NPT |
| Valve construction | Brass body with stainless steel ball |
| Seat type | Precision-machined hard seat (metal-to-metal) |
| Spring and pull ring | Stainless steel |
| Discharge | Vent to atmosphere |
| Available set pressures | 50–300 PSIG; select the required pressure option |
| Series set-pressure range | 25–300 PSIG |
| Maximum temperature | 400°F (204°C) |
| Overall height | 3-13/16 in. |
| Hex size | 7/8 in. |
| Certification | ASME code certified; UV and NB stamps |
| Pressure setting | Factory set and sealed |
Set Pressure and Air Flow Capacity
Air-flow capacities below are from Kingston’s 118CSS data sheet and apply to this connection size at the listed set pressure.
| 50 PSIG | 107 SCFM |
|---|---|
| 70 PSIG | 141 SCFM |
| 75 PSIG | 150 SCFM |
| 90 PSIG | 175 SCFM |
| 100 PSIG | 192 SCFM |
| 120 PSIG | 226 SCFM |
| 125 PSIG | 234 SCFM |
| 135 PSIG | 251 SCFM |
| 140 PSIG | 260 SCFM |
| 150 PSIG | 277 SCFM |
| 165 PSIG | 302 SCFM |
| 170 PSIG | 311 SCFM |
| 175 PSIG | 319 SCFM |
| 190 PSIG | 344 SCFM |
| 200 PSIG | 361 SCFM |
| 215 PSIG | 387 SCFM |
| 225 PSIG | 404 SCFM |
| 250 PSIG | 446 SCFM |
| 275 PSIG | 488 SCFM |
| 300 PSIG | 531 SCFM |
Application and Selection
Match the inlet threads, required set pressure, relieving capacity and available installation clearance to the original valve and equipment requirements. The 400°F temperature rating supports applications where a high-temperature hard-seat valve is specified, including compressor discharge service within the valve’s ratings. Do not select a safety valve by thread size alone.
Hard-seat safety valves are not inherently bubble-tight and may exhibit slight leakage as operating pressure approaches the set pressure. Keep the factory pressure setting intact and follow the equipment manufacturer’s installation and testing instructions.
