Conrader SRV390 High-Flow Safety Relief Valve - 1/2" MNPT, Select PSI

Conrader SRV390 High-Flow Safety Relief Valve - 1/2" MNPT, Select PSI

Regular price $12.15 USD
Regular price Sale price $12.15 USD
Sale Sold out
Orders $25 or more ship free to the lower 48. Shipping details.
Condition : New

View full details

Product Description

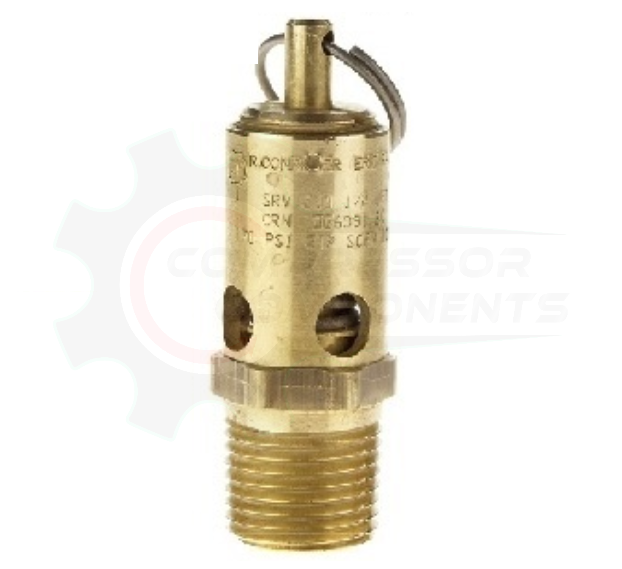

Conrader SRV390 High-Flow Safety Relief Valve

Brass air compressor safety relief valve with a 1/2" male NPT inlet and a silicone soft seat. Select the preset pressure required by your equipment. Each option is a separate valve with its own pressure setting and relieving capacity.

Specifications

Manufacturer Conrader
Model SRV390-1/2
Inlet connection 1/2" male NPT
Valve type High-flow soft-seat safety relief / pop-off valve
Body Brass
Standard seal Silicone
Spring 17-7 stainless steel
Pressure setting Choose one preset setting from 25–300 PSIG
Relieving capacity 66–534 SCFM, depending on selected pressure; see chart below
Operating temperature −65°F to 400°F (standard silicone configuration)
Set-pressure tolerance ±2 PSIG through 70 PSIG; ±3% above 70 PSIG
Standard code configuration ASME BPVC Section XIII; CSA B51

Pressure Settings and Relieving Capacity

The pressure selector identifies the preset pressure and corresponding relieving capacity in SCFM (standard cubic feet per minute). This capacity is not the compressor’s normal operating airflow.

25 PSIG 66 SCFM
50 PSIG 108 SCFM
75 PSIG 150 SCFM
100 PSIG 193 SCFM
125 PSIG 235 SCFM
135 PSIG 252 SCFM
140 PSIG 261 SCFM
150 PSIG 278 SCFM
165 PSIG 304 SCFM
175 PSIG 321 SCFM
200 PSIG 363 SCFM
220 PSIG 397 SCFM
225 PSIG 406 SCFM
235 PSIG 423 SCFM
250 PSIG 449 SCFM
275 PSIG 491 SCFM
300 PSIG 534 SCFM

Selection and Installation Notes

Match the original valve’s inlet thread, specified relief pressure, required relieving capacity and certification. Do not select by thread size alone or increase the relief setting to prevent nuisance opening. The selected setting must comply with the equipment manufacturer’s requirements and the protected vessel’s maximum allowable working pressure. This valve does not replace the compressor’s pressure switch or operating pressure control.

The available 25–300 PSIG settings describe separate preset variants, not a user-adjustable range. Use the valve type specified by the equipment manufacturer for hot compressor-discharge service. Install and service according to the equipment and valve manufacturer’s instructions.

Conrader SRV390 technical datasheet and capacity chart
