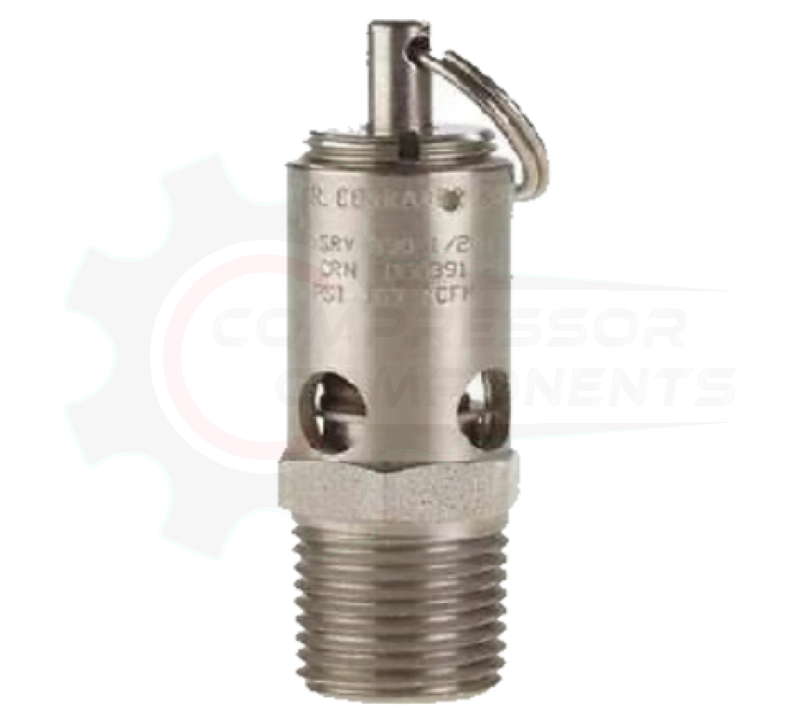

Conrader SRV390-SS Stainless Steel Safety Relief Valve - 1/2" MNPT, Select PSI

Conrader SRV390-SS Stainless Steel Safety Relief Valve - 1/2" MNPT, Select PSI

Regular price $93.20 USD
Regular price Sale price $93.20 USD
Sale Sold out
Orders $25 or more ship free to the lower 48. Shipping details.
Condition : New

View full details

Product Description

Conrader SRV390-SS Stainless Steel Safety Relief Valve

Stainless-steel air compressor safety relief valve with a 1/2" male NPT inlet and silicone soft seat. Choose the preset pressure required by your equipment. Each option is a separate valve with its own pressure setting and relieving capacity.

Specifications

Manufacturer Conrader
Model SRV390, 1/2" NPT stainless steel
Inlet connection 1/2" male NPT
Valve type Soft-seat safety relief / pop-off valve
Body material Stainless steel (ASTM A582)
Standard seal Silicone
Spring 17-7 stainless steel
Available pressure settings 25–300 PSIG; select one preset setting
Relieving capacity 66–534 SCFM, depending on selected pressure
Operating temperature −65°F to 400°F (standard silicone configuration)
Set-pressure tolerance ±2 PSIG through 70 PSIG; ±3% above 70 PSIG
Standard code configuration ASME BPVC Section XIII; CSA B51

Pressure Settings and Relieving Capacity

Manufacturer-rated air relieving capacity in SCFM at each listed set pressure. This is valve relief capacity, not the compressor's normal air delivery.

25 PSI 66 SCFM
50 PSI 108 SCFM
75 PSI 150 SCFM
100 PSI 193 SCFM
125 PSI 235 SCFM
135 PSI 252 SCFM
140 PSI 261 SCFM
150 PSI 278 SCFM
165 PSI 304 SCFM
175 PSI 321 SCFM
200 PSI 363 SCFM
225 PSI 406 SCFM
250 PSI 449 SCFM
275 PSI 491 SCFM
300 PSI 534 SCFM

Selection and Installation

Match the inlet thread, required set pressure and relieving capacity to the equipment manufacturer's requirements and receiver rating. Stainless construction does not change this valve's soft-seat temperature limit. For hot compressor-discharge service, select a suitable hard-seat valve. Depressurize the system before installation; do not adjust the factory pressure setting or obstruct the relief outlet.

Conrader SRV390 technical data sheet
