Conrader CTLB114114 In-Tank Check Valve - 1-1/4" FNPT x 1-1/4" MNPT, 1/8" Unloader

Conrader CTLB114114 In-Tank Check Valve - 1-1/4" FNPT x 1-1/4" MNPT, 1/8" Unloader

$101.95 USD
$101.95 USD
Sale Sold out
Orders $25 or more ship free to the lower 48. Shipping details.
Condition : New
Tell a friend
View full details

Product Description

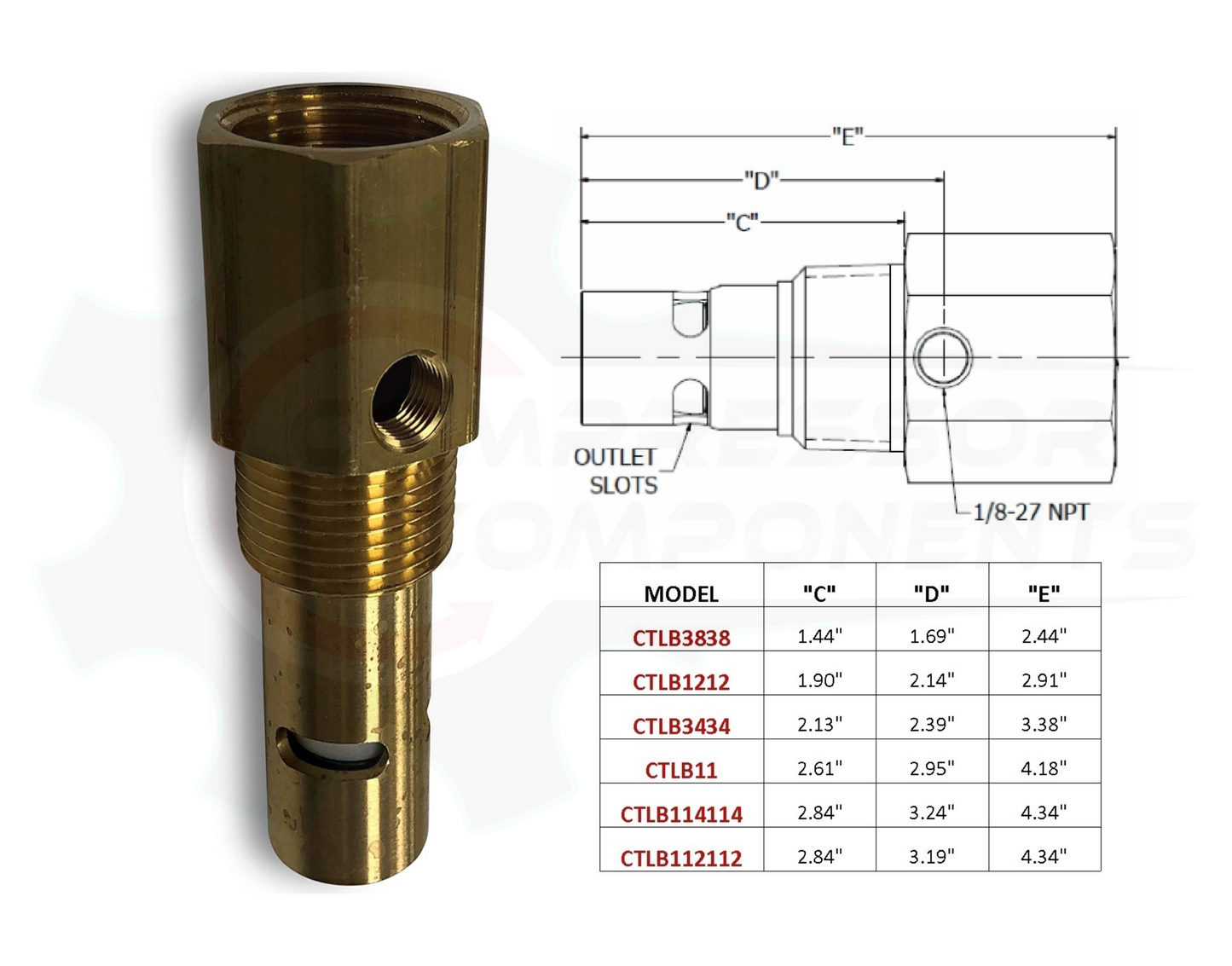

Conrader CTLB114114 one-piece brass in-tank air compressor check valve with a 1-1/4" FNPT compressor-side inlet, 1-1/4" MNPT tank connection, and standard 1/8" NPT side/unloader port.

Specifications

Manufacturer part number CTLB114114
Conrader numeric reference 5862
Construction One-piece brass body
Compressor-side inlet 1-1/4" FNPT
Tank connection 1-1/4" MNPT
Side / unloader port 1/8" NPT
Rated flow 130 SCFM at 100 PSIG
Flow factor Cv 17.4
Cracking pressure 0.6 PSI
Maximum pressure 500 PSI
Maximum temperature 450°F

Existing CDI cross-reference: P1212T

Verified Replacement For

  • Champion P03590A
  • FS-Curtis FVV818

Selection note: Verify the 1-1/4" female inlet, 1-1/4" male tank connection, and 1/8" side-port requirement before ordering.
