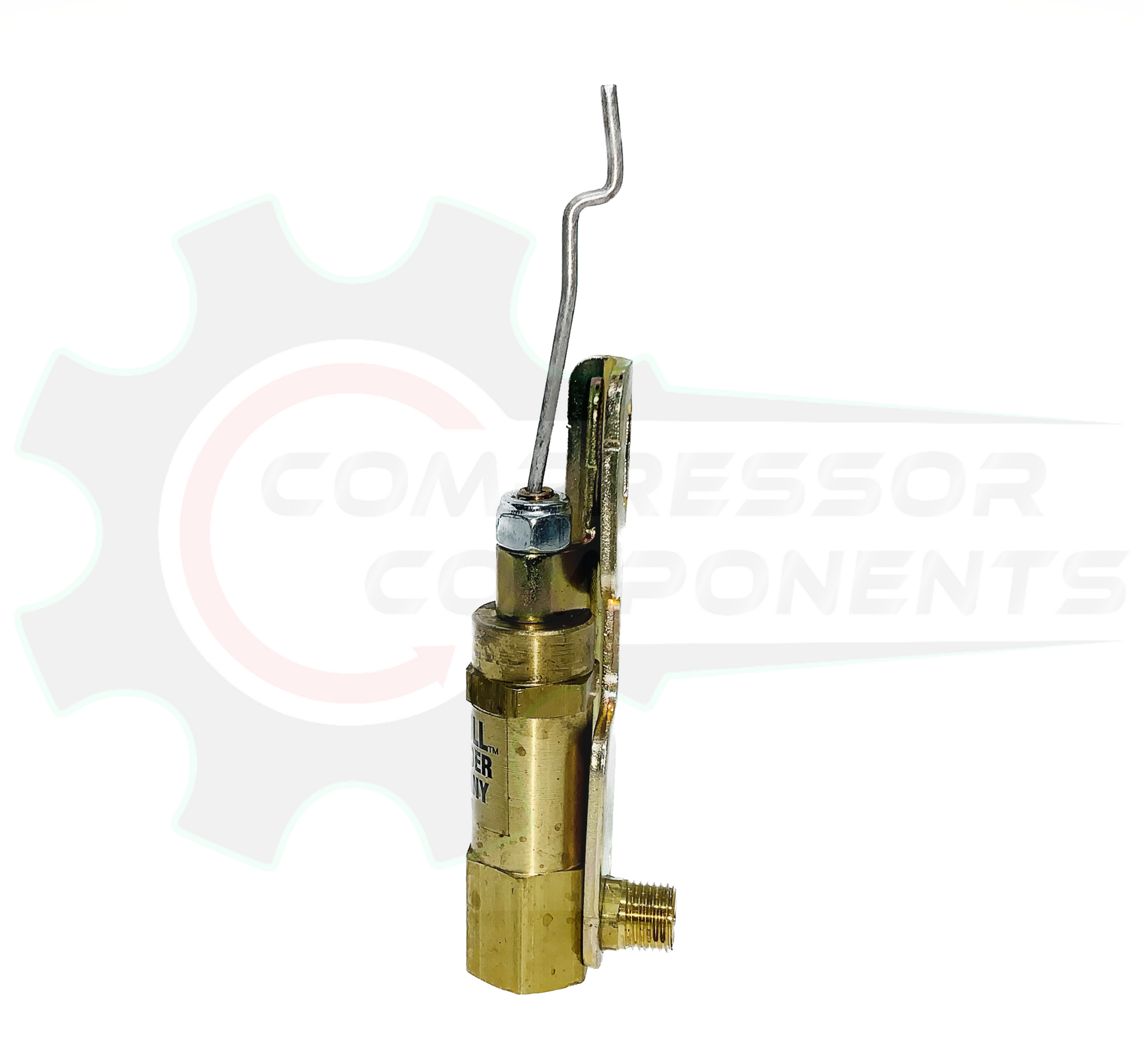

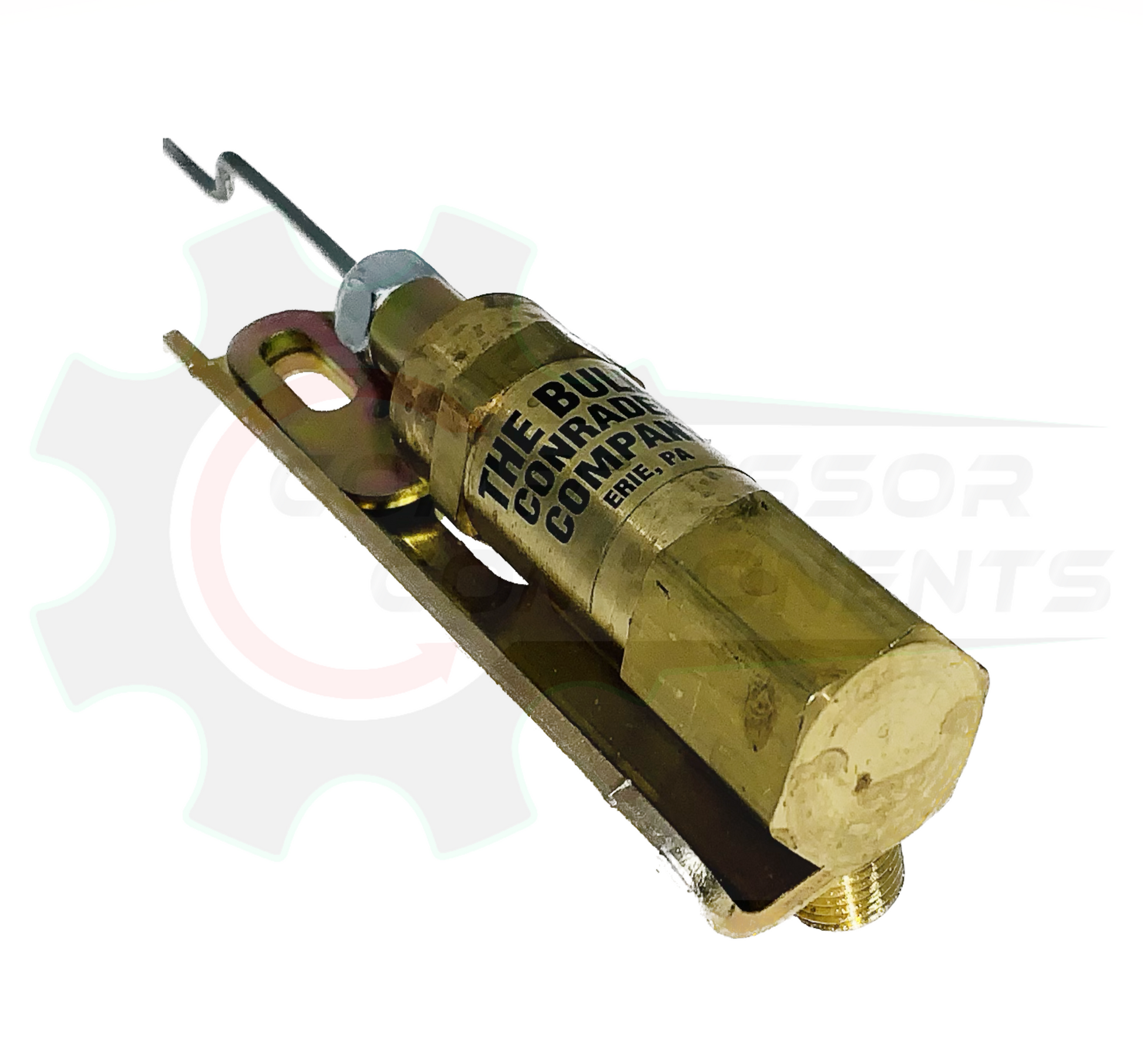

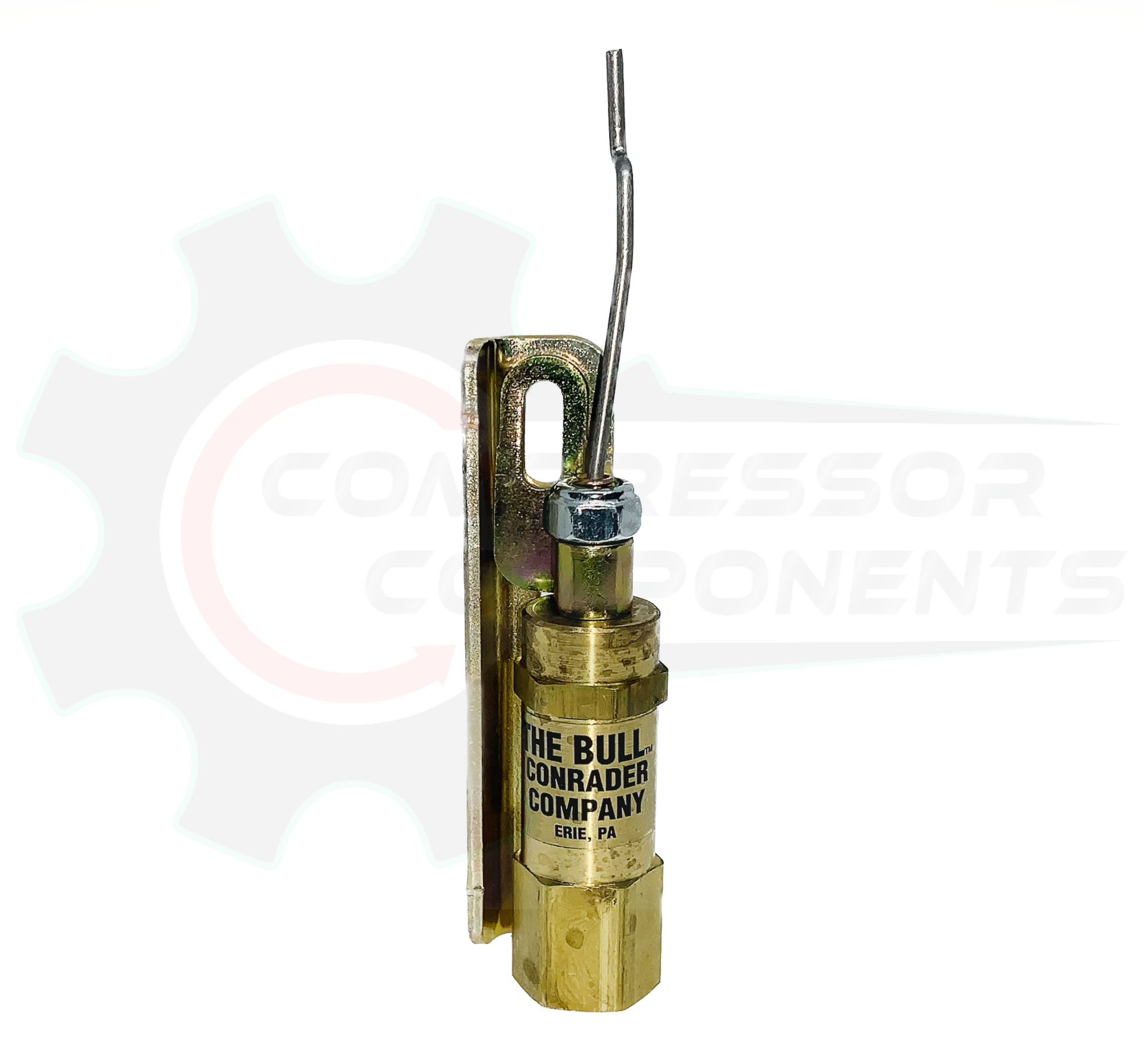

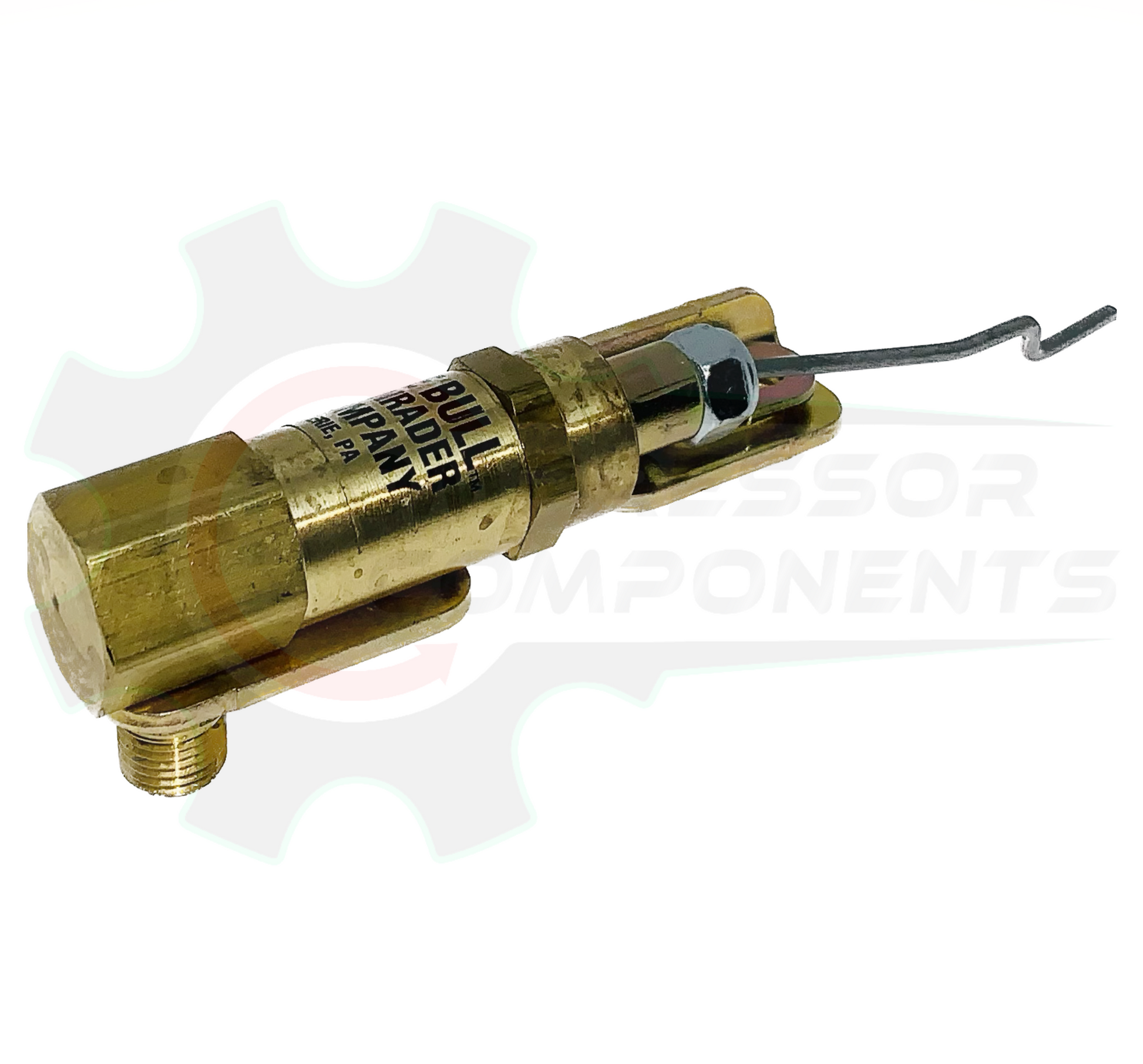

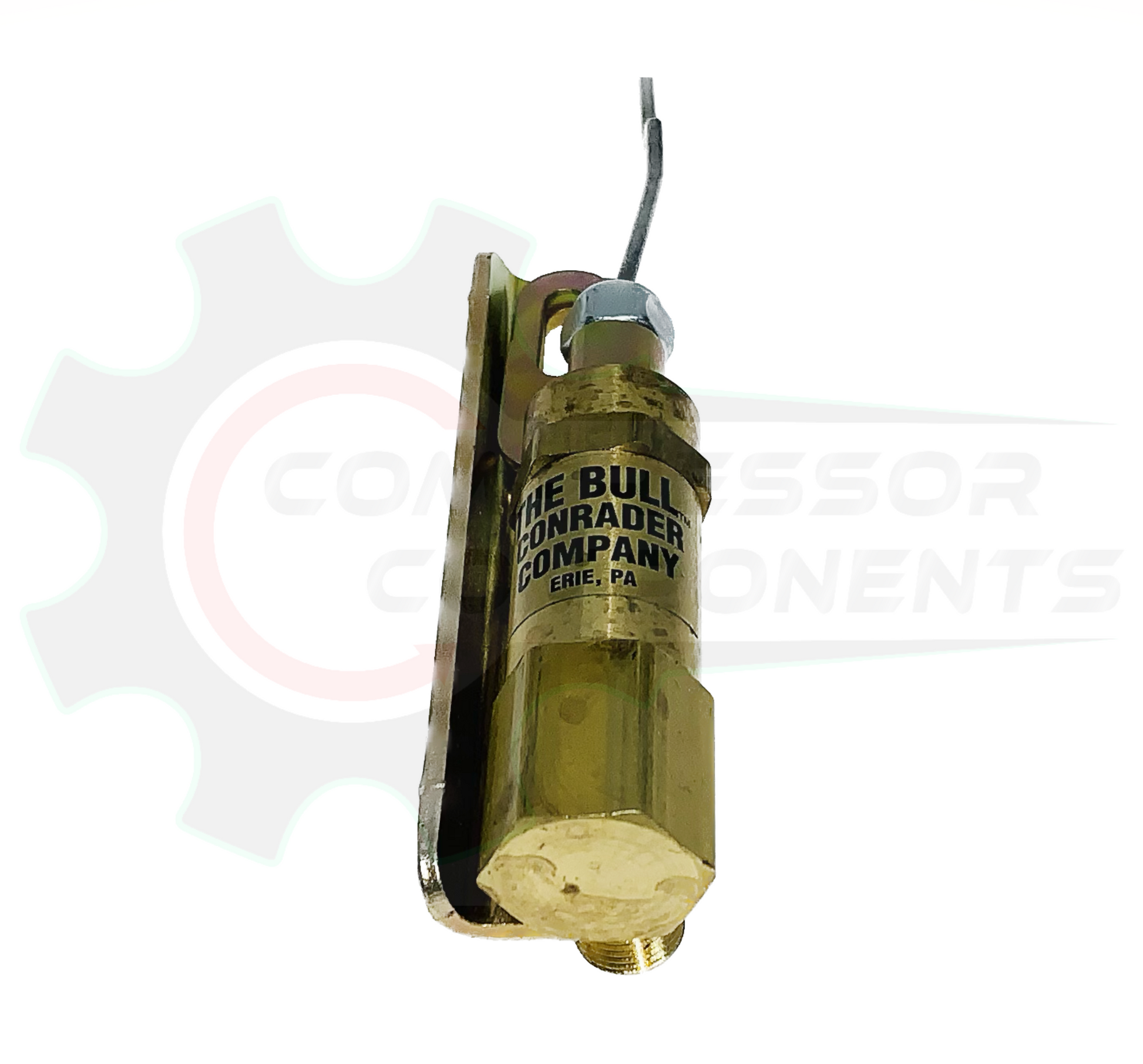

Honda GX240 / GX270 Air Compressor Throttle Actuator – Large Bracket

Honda GX240 / GX270 Air Compressor Throttle Actuator – Large Bracket

Regular price $56.95 USD
Regular price Sale price $56.95 USD
Sale Sold out
Orders $25 or more ship free to the lower 48. Shipping details.
Condition : New

View full details

Product Description

Engine-mounted pneumatic throttle actuator for Honda GX240 and GX270 gas air compressors. This large-bracket configuration uses the pilot/unloader valve’s air signal to reduce engine speed during unloading, then releases the throttle as the signal vents.

Part and application references: store/supplier SKU TCMA-4625; existing reference TCMA-H-8090-LB. Your matching legacy eBay listing identifies the Honda 8–9 HP assembly as TCSP-H-0809-B. Preserve these identifiers when comparing an original assembly; confirm the large bracket, rod bend and mounting arrangement. Conrader’s catalog lists the related TCMA-H-8090-LB-NF / 6449 configuration for GX240/GX270; the NF suffix identifies a separately cataloged configuration and does not establish identical supplied hardware.

Specifications

Specification Detail
Engine application Honda GX240 / GX270; legacy 8–9 HP designation

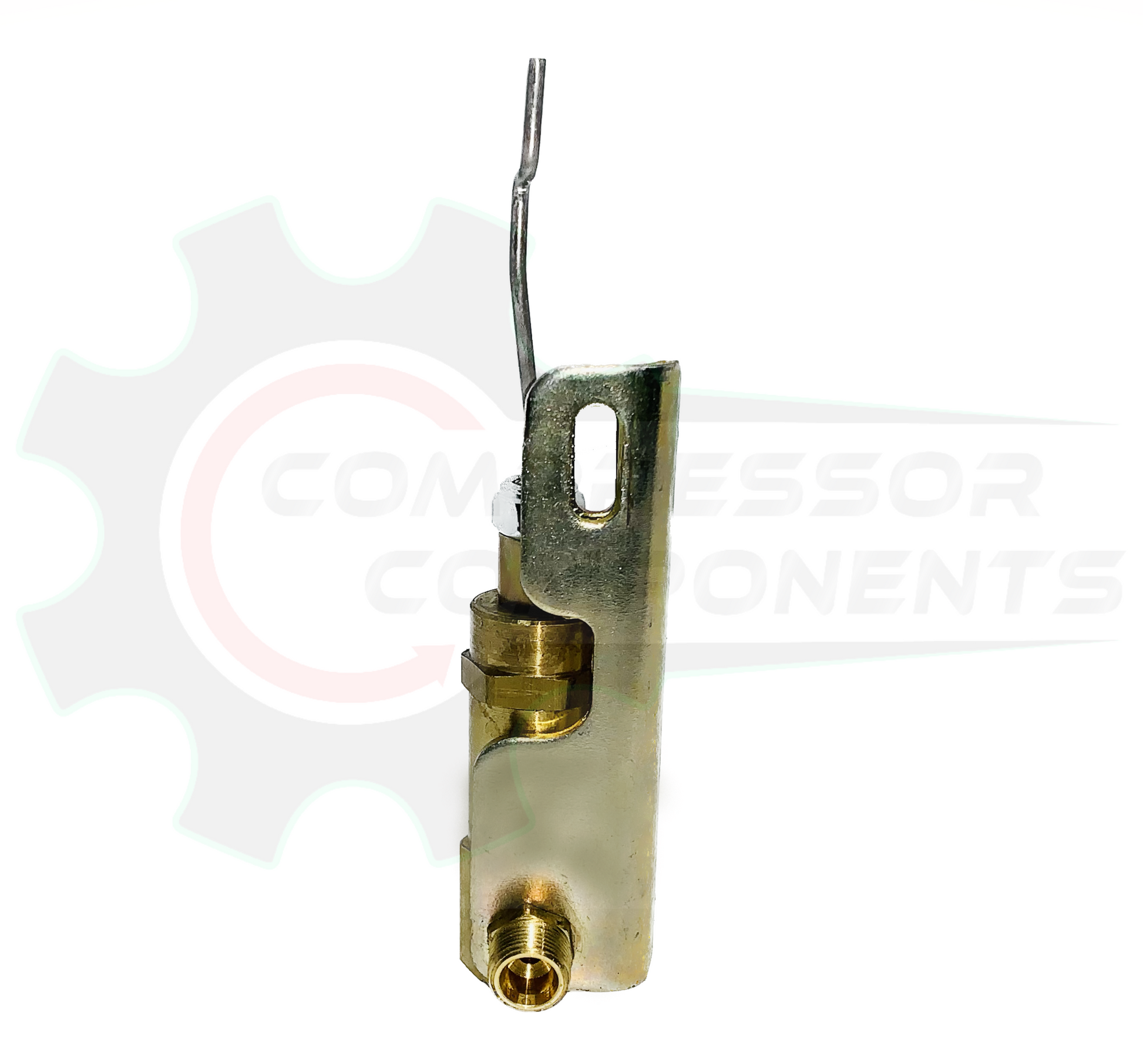

Mounting style Large slotted bracket; engine throttle-arm linkage
Air-signal connection 1/4″ OD compression tubing
Linkage Formed wire rod; compare bend, orientation and travel
Body / piston Brass

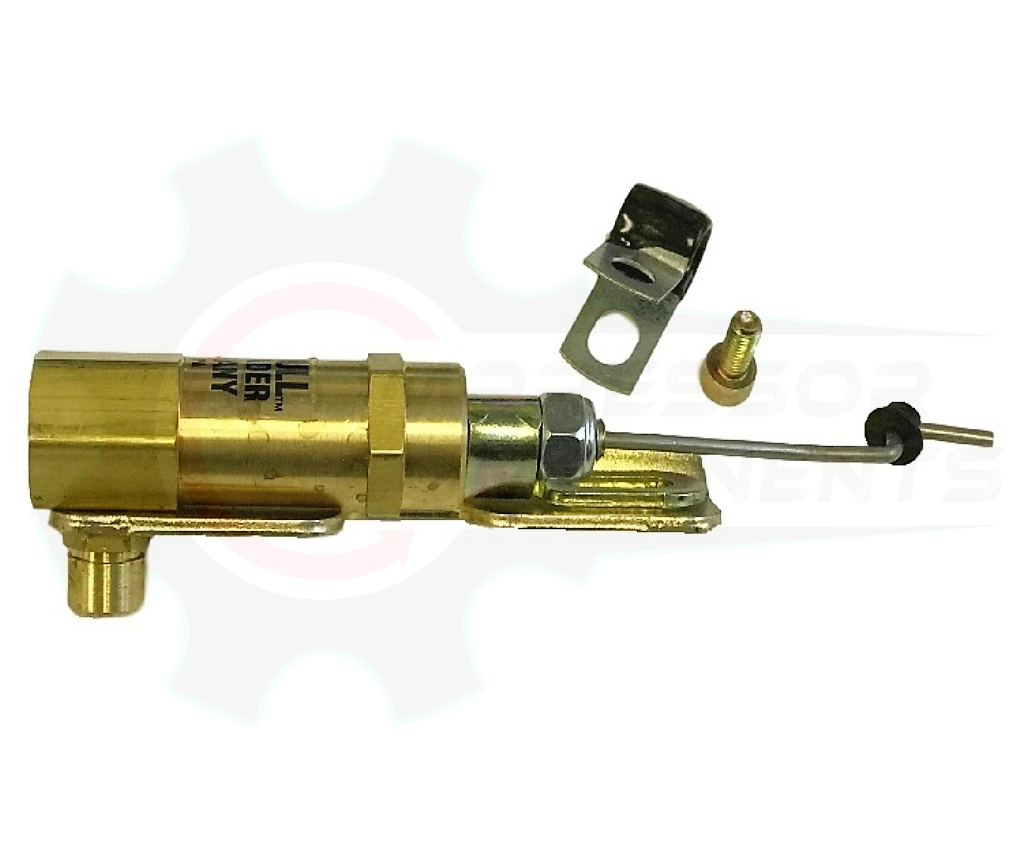

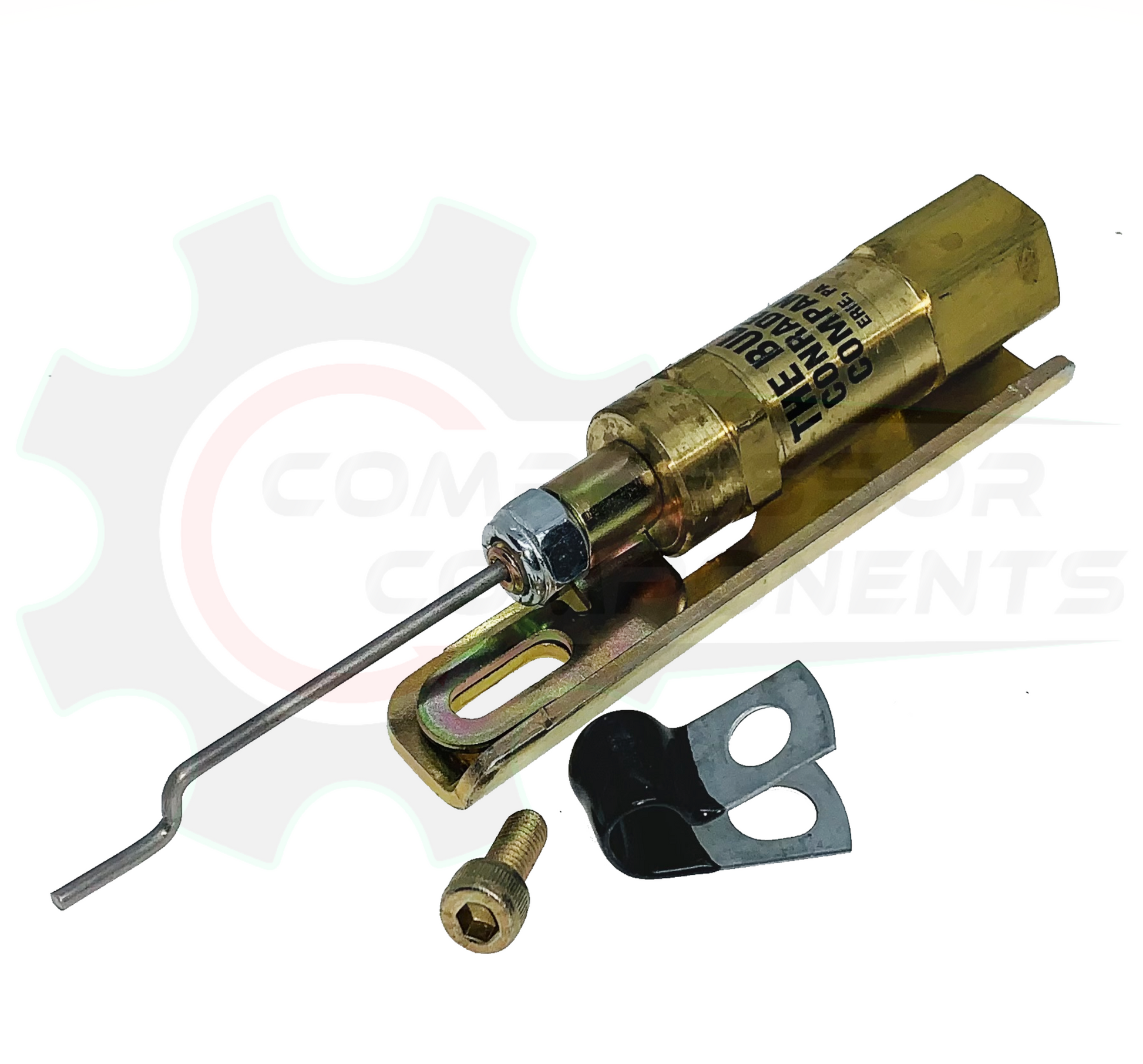

Mounting components Bracket and hardware included
Listed assembly working pressure 60–250 PSI
TCMA series stroke reference Approximately 0.63″; confirm original travel
TCMA series spring-force reference 8.8 lbf retracted

Engine and linkage matching

Match GX240/GX270 engine identification with the existing large bracket, slot positions, rod offset, inlet orientation and available clearance. Do not use horsepower alone. The manufacturer also offers a separate governor-arm actuator for GX270; it is not the same mounting configuration.

The listed working pressure above remains the rating for this assembly. The current TCMA series data gives broader series ratings; do not use those to increase the allowable pressure of an assembly marked or specified for 250 PSI.

Pilot signal connection

Use a pilot/unloader valve that supplies the required throttle signal during unloading and releases that signal during loading. Match the compressor flow, set pressure, signal fitting and tubing. No single pilot valve is implied for every GX240/GX270 installation.

Manufacturer documentation: TC series engine and mounting configurations · TCMA series reference data.
