Conrader CTB1412 Two-Piece In-Tank Check Valve - 1/4" FNPT x 1/2" MNPT, 1/8" Unloader

Conrader CTB1412 Two-Piece In-Tank Check Valve - 1/4" FNPT x 1/2" MNPT, 1/8" Unloader

$19.95 USD
$19.95 USD
Sale Sold out
Orders $25 or more ship free to the lower 48. Shipping details.
Condition : New
Tell a friend
View full details

Product Description

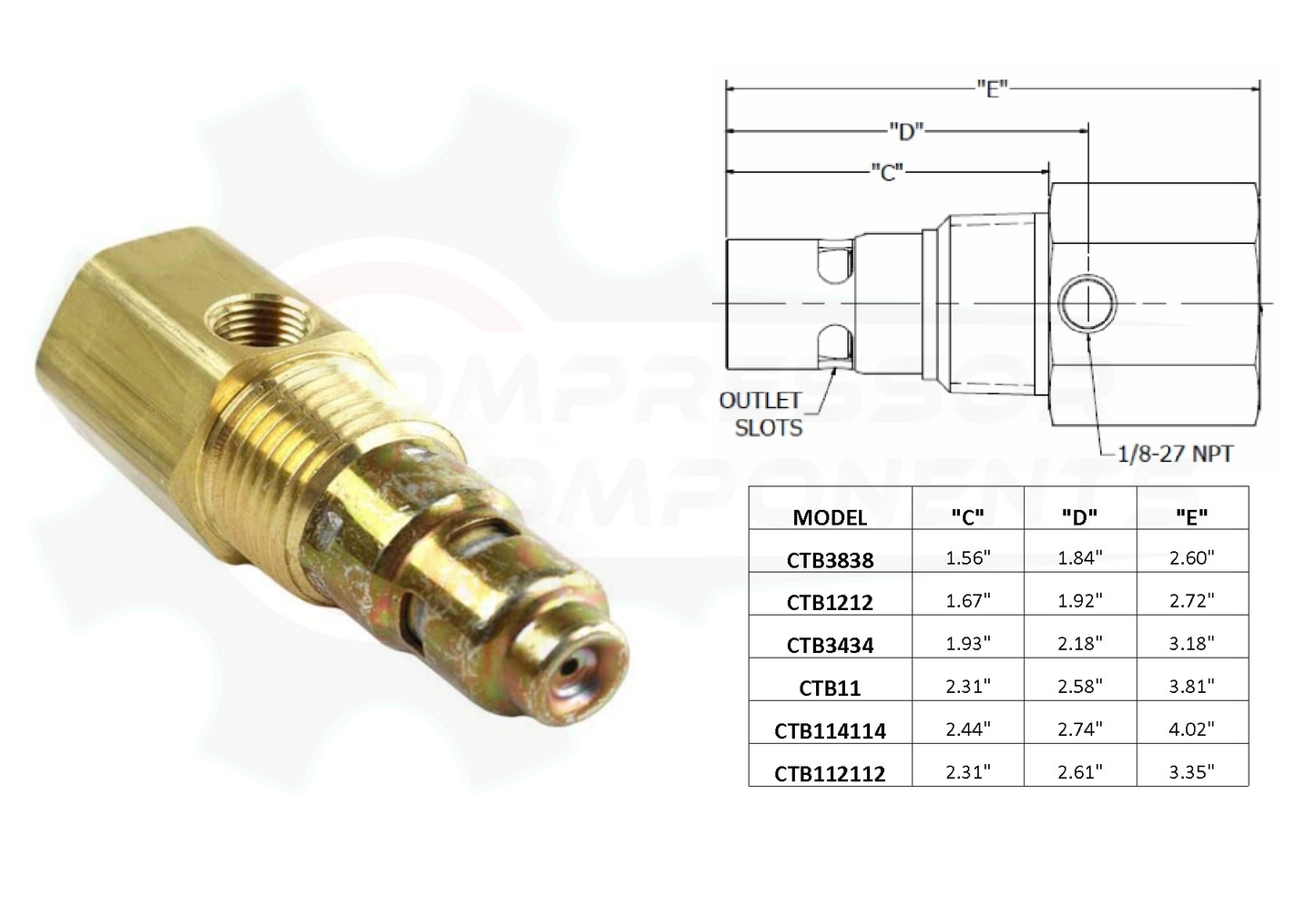

Conrader CTB1412 two-piece brass in-tank air compressor check valve with a 1/4" FNPT top inlet, 1/2" MNPT tank outlet, and standard 1/8" FNPT side/unloader port.

Specifications

Manufacturer part number CTB1412
Conrader numeric reference 4669
Construction Two-piece brass body
Top inlet 1/4" FNPT
Tank outlet 1/2" MNPT
Side / unloader port 1/8" FNPT
Rated flow 20 SCFM at 100 PSIG
Flow factor Cv 2.3
Cracking pressure 2.2 PSI
Maximum pressure 500 PSI
Operating temperature -65°F to 450°F

Verified Replacement For

  • Campbell Hausfeld CV221517AV

Selection note: Verify the 1/4" female inlet, 1/2" male tank connection, and 1/8" unloader-port requirement before ordering.
