Product Description
Conrader RCT-HU Pilot Valve with Manual Hand Unloader

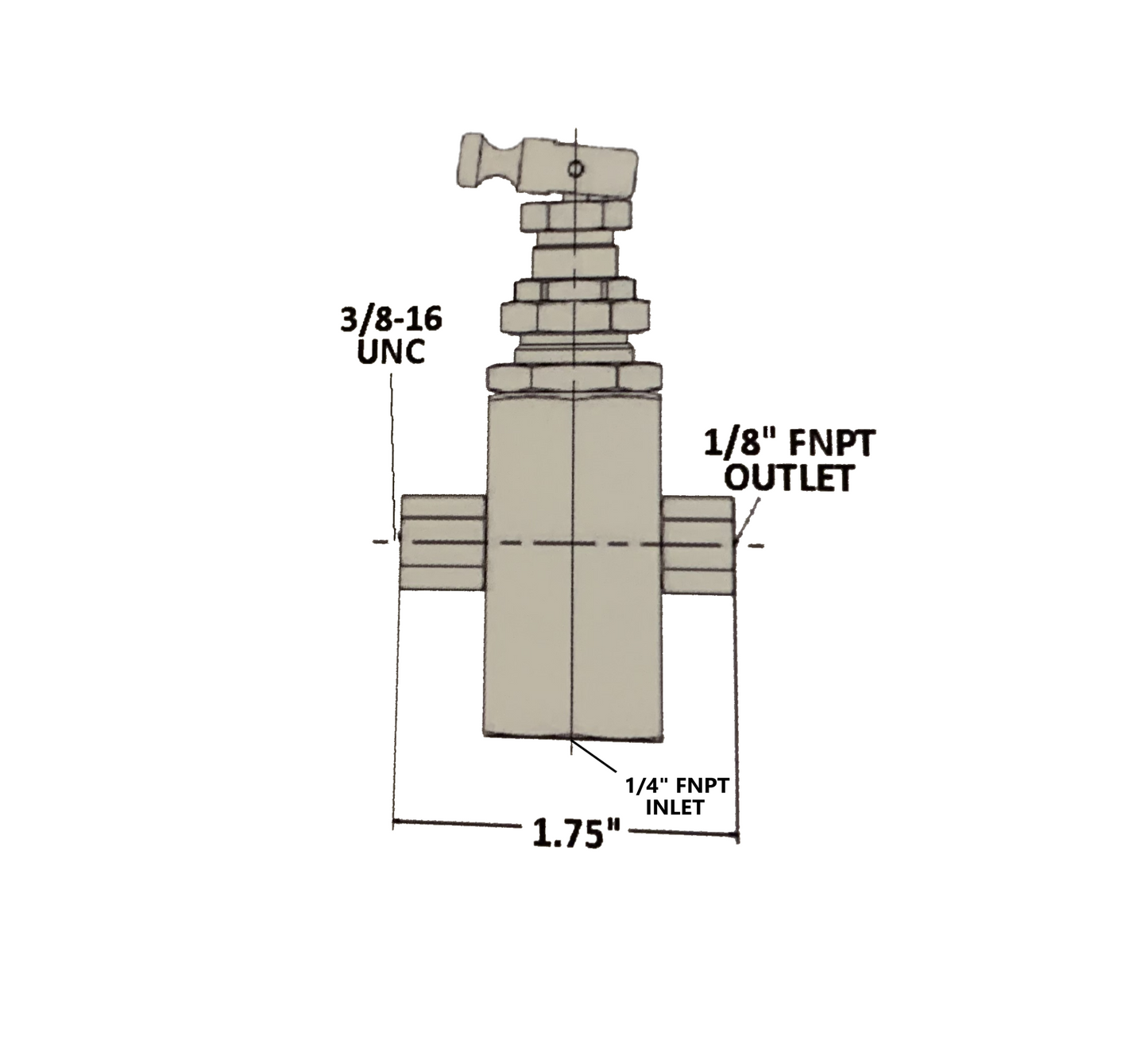

The Conrader RCT-HU uses receiver pressure to send a pneumatic control signal to compressor unloaders, throttle controls or other compatible devices. This model has a 1/4" FNPT inlet and two 1/8" FNPT outlets, with a 3/8-16 mounting boss. The hand lever provides manual unloading control.
Specifications
| Manufacturer | Conrader |
|---|---|
| Model | RCT-HU |
| Valve function | Pneumatic pilot control |
| Manual control | Hand unloader lever |
| Inlet | 1/4" FNPT |
| Pilot outlet | Two 1/8" FNPT outlets |
| Body material | Brass |
| Pressure setting | Select the required cut-in / cut-out pair |
| Mounting boss | 3/8-16 UNC |
Available Pressure Settings
The lower number is the load (cut-in) setting. The higher number is the unload (cut-out) setting. At cut-out, the pilot opens to pressurize the downstream control line; at cut-in, it closes and releases that control signal.
| 30-40 PSI | Loads at 30 PSI; unloads at 40 PSI |
|---|---|
| 95-115 PSI | Loads at 95 PSI; unloads at 115 PSI |
| 95-125 PSI | Loads at 95 PSI; unloads at 125 PSI |
| 100-120 PSI | Loads at 100 PSI; unloads at 120 PSI |
| 115-135 PSI | Loads at 115 PSI; unloads at 135 PSI |
| 120-140 PSI | Loads at 120 PSI; unloads at 140 PSI |
| 140-160 PSI | Loads at 140 PSI; unloads at 160 PSI |
| 140-175 PSI | Loads at 140 PSI; unloads at 175 PSI |
| 160-175 PSI | Loads at 160 PSI; unloads at 175 PSI |
| 215-250 PSI | Loads at 215 PSI; unloads at 250 PSI |
Application and Selection
Match the original inlet thread, pilot outlet connection, mounting and both pressure settings. This valve controls another device through a pilot signal; it is not a direct replacement for a discharge-unloader/check-valve combination or a certified safety relief valve. Keep the compressor’s separate pressure-protection devices in place.
