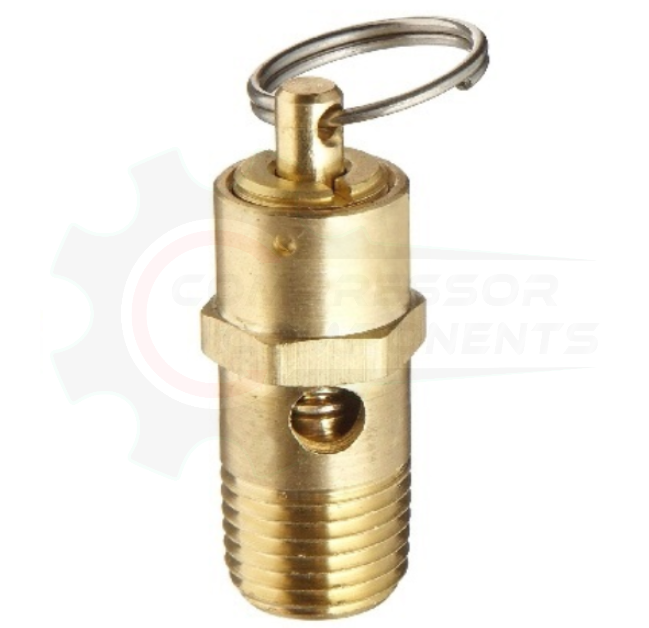

Kingston KSV25-2 Soft-Seat Safety Relief Valve
Brass air compressor safety relief valve with a 1/4" male NPT inlet and a silicone soft seat. Choose the factory-set pressure required by your equipment. Each pressure option is a separate valve with its own relieving capacity.
Specifications
| Manufacturer | Kingston |
|---|---|
| Model | KSV25-2 |
| Inlet connection | 1/4" male NPT |
| Valve type | Soft-seat safety relief / pop-off valve; vents to atmosphere |
| Body and stem | Brass |
| Standard disc | Silicone |
| Compression spring | Stainless steel or music wire, per manufacturer configuration |
| Pull ring | Stainless steel |
| Available pressure settings | 25–300 PSI; select one preset setting |
| Relieving capacity | 31–250 SCFM, depending on selected pressure |
| Operating temperature | −20°F to 400°F |
| Orifice area | 0.049 in² |
| NB-rated slope | 0.726 SCFM/PSIA |
| Overall height | 2.01 in. |
| Hex size | 0.687 in. |
| Certification | ASME code / National Board certified; verify valve stamping |
| Seat-tightness design | API 527 |
Pressure Settings and Relieving Capacity
The following air-relief capacities are from Kingston's KSV specification guide. SCFM describes valve relieving capacity, not the compressor's normal air delivery.
| 25 PSI | 31 SCFM |
|---|---|
| 35 PSI | 38 SCFM |
| 50 PSI | 50 SCFM |
| 60 PSI | 58 SCFM |
| 70 PSI | 66 SCFM |
| 75 PSI | 70 SCFM |
| 80 PSI | 74 SCFM |
| 90 PSI | 82 SCFM |
| 100 PSI | 90 SCFM |
| 110 PSI | 98 SCFM |
| 120 PSI | 106 SCFM |
| 125 PSI | 110 SCFM |
| 135 PSI | 118 SCFM |
| 140 PSI | 122 SCFM |
| 150 PSI | 130 SCFM |
| 160 PSI | 138 SCFM |
| 165 PSI | 142 SCFM |
| 170 PSI | 146 SCFM |
| 175 PSI | 150 SCFM |
| 180 PSI | 154 SCFM |
| 190 PSI | 162 SCFM |
| 200 PSI | 170 SCFM |
| 215 PSI | 182 SCFM |
| 225 PSI | 190 SCFM |
| 250 PSI | 210 SCFM |
| 260 PSI | 218 SCFM |
| 275 PSI | 230 SCFM |
| 300 PSI | 250 SCFM |
Selection and Installation
Match the required set pressure, 1/4" NPT connection and relieving capacity to the equipment manufacturer's requirements and receiver rating. A soft seat is intended for suitable receiver and compressed-air service; select an appropriate hard-seat valve for hot compressor-discharge applications. Depressurize the system before installation. Do not adjust the factory setting or obstruct the relief outlet.
