Product Description

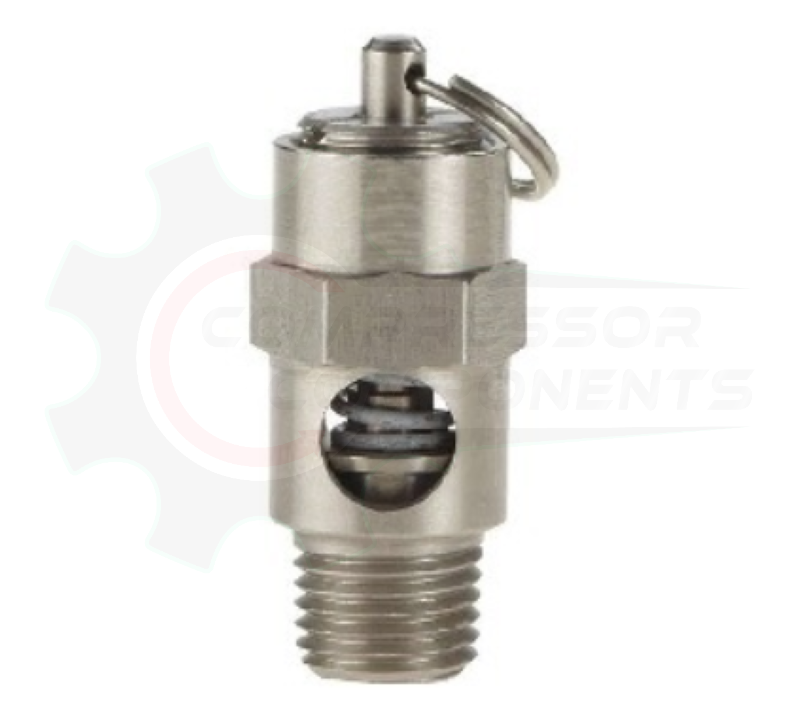

Conrader SRV250-SS Stainless Steel Safety Relief Valve
Stainless-steel air compressor safety relief valve with a 1/4" male NPT inlet and silicone soft seat. Choose the preset pressure required by your equipment. Each option is a separate valve with its own pressure setting and relieving capacity.
Specifications
| Manufacturer | Conrader |
|---|---|
| Model | SRV250, 1/4" NPT stainless steel |
| Inlet connection | 1/4" male NPT |
| Valve type | Soft-seat safety relief / pop-off valve |
| Body material | Stainless steel (ASTM A582) |
| Standard seal | Silicone |
| Spring | 17-7 stainless steel |
| Available pressure settings | 25–350 PSIG; select one preset setting |
| Relieving capacity | 31–295 SCFM, depending on selected pressure |
| Operating temperature | −65°F to 400°F (standard silicone configuration) |
| Set-pressure tolerance | ±2 PSIG through 70 PSIG; ±3% above 70 PSIG |
| Standard code configuration | ASME BPVC Section XIII; CSA B51 |
Pressure Settings and Relieving Capacity
Manufacturer-rated air relieving capacity in SCFM at each listed set pressure. This is valve relief capacity, not the compressor's normal air delivery.
| 25 PSI | 31 SCFM |
|---|---|
| 35 PSI | 39 SCFM |
| 50 PSI | 51 SCFM |
| 60 PSI | 59 SCFM |
| 70 PSI | 67 SCFM |
| 75 PSI | 71 SCFM |
| 80 PSI | 75 SCFM |
| 90 PSI | 84 SCFM |
| 100 PSI | 92 SCFM |
| 125 PSI | 112 SCFM |
| 135 PSI | 120 SCFM |
| 140 PSI | 124 SCFM |
| 150 PSI | 132 SCFM |
| 165 PSI | 145 SCFM |
| 175 PSI | 153 SCFM |
| 200 PSI | 173 SCFM |
| 215 PSI | 185 SCFM |
| 225 PSI | 194 SCFM |
| 250 PSI | 214 SCFM |
| 275 PSI | 234 SCFM |
| 300 PSI | 255 SCFM |
| 325 PSI | 275 SCFM |
| 350 PSI | 295 SCFM |
Selection and Installation
Match the inlet thread, required set pressure and relieving capacity to the equipment manufacturer's requirements and receiver rating. Stainless construction does not change this valve's soft-seat temperature limit. For hot compressor-discharge service, select a suitable hard-seat valve. Depressurize the system before installation; do not adjust the factory pressure setting or obstruct the relief outlet.
