Conrader SRV250-18 High-Flow Safety Relief Valve - 1/8" MNPT, Select PSI

Conrader SRV250-18 High-Flow Safety Relief Valve - 1/8" MNPT, Select PSI

Regular price $10.25 USD
Regular price Sale price $10.25 USD
Sale Sold out
Orders $25 or more ship free to the lower 48. Shipping details.
Condition : New

View full details

Product Description

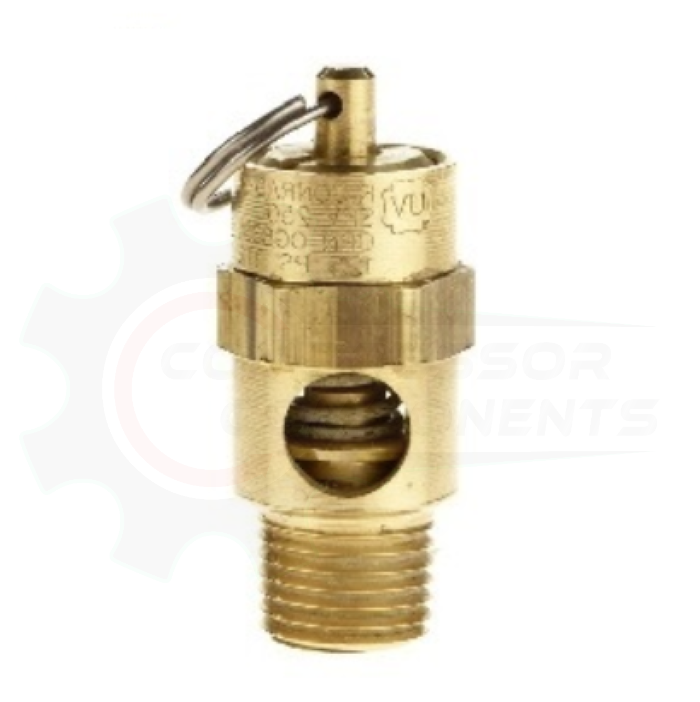

Conrader SRV250-18 High-Flow Safety Relief Valve

Brass air compressor safety relief valve with a 1/8" male NPT inlet and a silicone soft seat. Select the preset pressure required by your equipment. Each option is a separate valve with its own pressure setting and relieving capacity.

Order by the required pressure setting. For example, the 35 PSI option is listed as SRV250-18-35.

Specifications

Manufacturer Conrader
Base model SRV250-18 (manufacturer notation: SRV250-1/8)
Inlet connection 1/8" male NPT
Valve type High-flow soft-seat safety relief / pop-off valve
Body Brass
Standard seal Silicone
Spring 17-7 stainless steel
Pressure setting Choose one preset setting from 25–350 PSIG
Relieving capacity 31–295 SCFM, depending on selected pressure; see chart below
Operating temperature −65°F to 400°F (standard silicone configuration)
Set-pressure tolerance ±2 PSIG through 70 PSIG; ±3% above 70 PSIG
Standard code configuration ASME BPVC Section XIII; CSA B51

Pressure Settings and Relieving Capacity

The pressure selector identifies the preset pressure and corresponding relieving capacity in SCFM (standard cubic feet per minute). This capacity is not the compressor's normal operating airflow.

25 PSIG 31 SCFM
35 PSIG 39 SCFM
50 PSIG 51 SCFM
60 PSIG 59 SCFM
70 PSIG 67 SCFM
75 PSIG 71 SCFM
80 PSIG 75 SCFM
90 PSIG 84 SCFM
100 PSIG 92 SCFM
110 PSIG 100 SCFM
120 PSIG 108 SCFM
125 PSIG 112 SCFM
135 PSIG 120 SCFM
140 PSIG 124 SCFM
150 PSIG 132 SCFM
160 PSIG 141 SCFM
165 PSIG 145 SCFM
170 PSIG 149 SCFM
175 PSIG 153 SCFM
180 PSIG 157 SCFM
190 PSIG 165 SCFM
200 PSIG 173 SCFM
215 PSIG 185 SCFM
225 PSIG 194 SCFM
250 PSIG 214 SCFM
260 PSIG 222 SCFM
275 PSIG 234 SCFM
300 PSIG 255 SCFM
325 PSIG 275 SCFM
350 PSIG 295 SCFM

Selection and Installation Notes

Match the original valve's inlet thread, specified relief pressure, required relieving capacity and certification. Do not select by thread size alone or increase the relief setting to prevent nuisance opening. The selected setting must comply with the equipment manufacturer's requirements and the protected vessel's maximum allowable working pressure. This valve does not replace the compressor's pressure switch or operating pressure control.

The available 25–350 PSIG settings describe separate preset variants, not a user-adjustable range. Install and service according to the equipment and valve manufacturer's instructions.
