Product Description

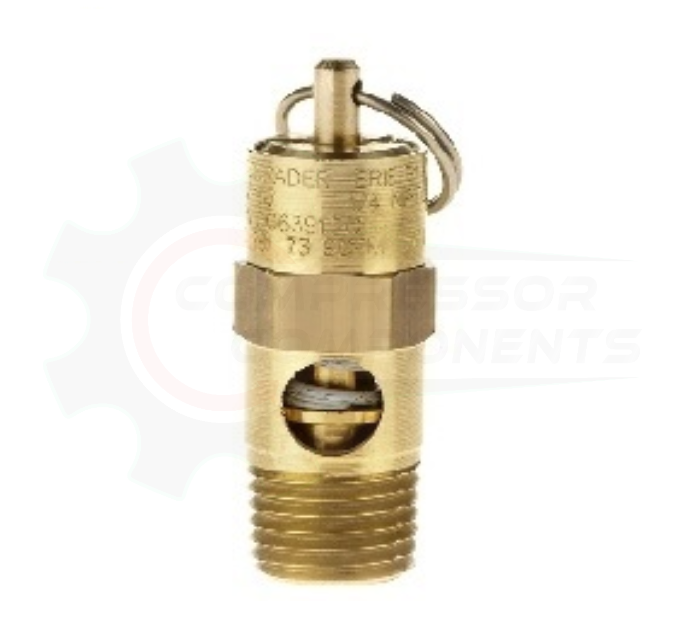

Conrader SRV187-18 Soft-Seat Safety Relief Valve
Compact brass air compressor safety relief valve with a 1/8" male NPT inlet and a silicone soft seat. Select the preset pressure required by your equipment. Each option is a separate valve with its own pressure setting and relieving capacity.
Specifications
| Manufacturer | Conrader |
|---|---|
| Base model | SRV187-18 (manufacturer notation: SRV187-1/8) |
| Inlet connection | 1/8" male NPT |
| Valve type | Soft-seat safety relief / pop-off valve |
| Body | Brass |
| Standard seal | Silicone |
| Spring | 17-7 stainless steel |
| Pressure setting | Choose one preset setting from 25–250 PSIG |
| Relieving capacity | 17–118 SCFM, depending on selected pressure; see chart below |
| Maximum temperature | 350°F |
| Set-pressure tolerance | ±2 PSIG through 70 PSIG; ±3% above 70 PSIG |
| Standard code configuration | ASME BPVC Section XIII; CSA B51 |
Pressure Settings and Relieving Capacity
The pressure selector identifies the preset pressure and corresponding airflow capacity. Capacity is stated in SCFM (standard cubic feet per minute); it is not the compressor's normal operating airflow.
| 25 PSIG | 17 SCFM |
|---|---|
| 30 PSIG | 19 SCFM |
| 35 PSIG | 21 SCFM |
| 50 PSIG | 28 SCFM |
| 60 PSIG | 33 SCFM |
| 65 PSIG | 35 SCFM |
| 70 PSIG | 37 SCFM |
| 75 PSIG | 39 SCFM |
| 80 PSIG | 42 SCFM |
| 100 PSIG | 51 SCFM |
| 120 PSIG | 60 SCFM |
| 125 PSIG | 62 SCFM |
| 135 PSIG | 66 SCFM |
| 140 PSIG | 69 SCFM |
| 150 PSIG | 73 SCFM |
| 160 PSIG | 78 SCFM |
| 165 PSIG | 80 SCFM |
| 170 PSIG | 82 SCFM |
| 175 PSIG | 84 SCFM |
| 180 PSIG | 87 SCFM |
| 190 PSIG | 91 SCFM |
| 200 PSIG | 96 SCFM |
| 215 PSIG | 102 SCFM |
| 225 PSIG | 107 SCFM |
| 230 PSIG | 109 SCFM |
| 250 PSIG | 118 SCFM |
Selection and Installation Notes
Match the original valve's inlet thread, specified relief pressure, required relieving capacity and certification. Do not select by thread size alone or increase the relief setting to prevent nuisance opening. The selected setting must comply with the equipment manufacturer's requirements and the protected vessel's maximum allowable working pressure. This valve does not replace the compressor's pressure switch or operating pressure control.
The available 25–250 PSIG settings describe separate preset variants, not a user-adjustable range. Install and service according to the equipment and valve manufacturer's instructions.
