Conrader CTB1114 Two-Piece In-Tank Check Valve - 1" FNPT x 1-1/4" MNPT, 1/8" Unloader

Conrader CTB1114 Two-Piece In-Tank Check Valve - 1" FNPT x 1-1/4" MNPT, 1/8" Unloader

$104.95 USD
$104.95 USD
Sale Sold out
Orders $25 or more ship free to the lower 48. Shipping details.
Condition : New
Tell a friend
View full details

Product Description

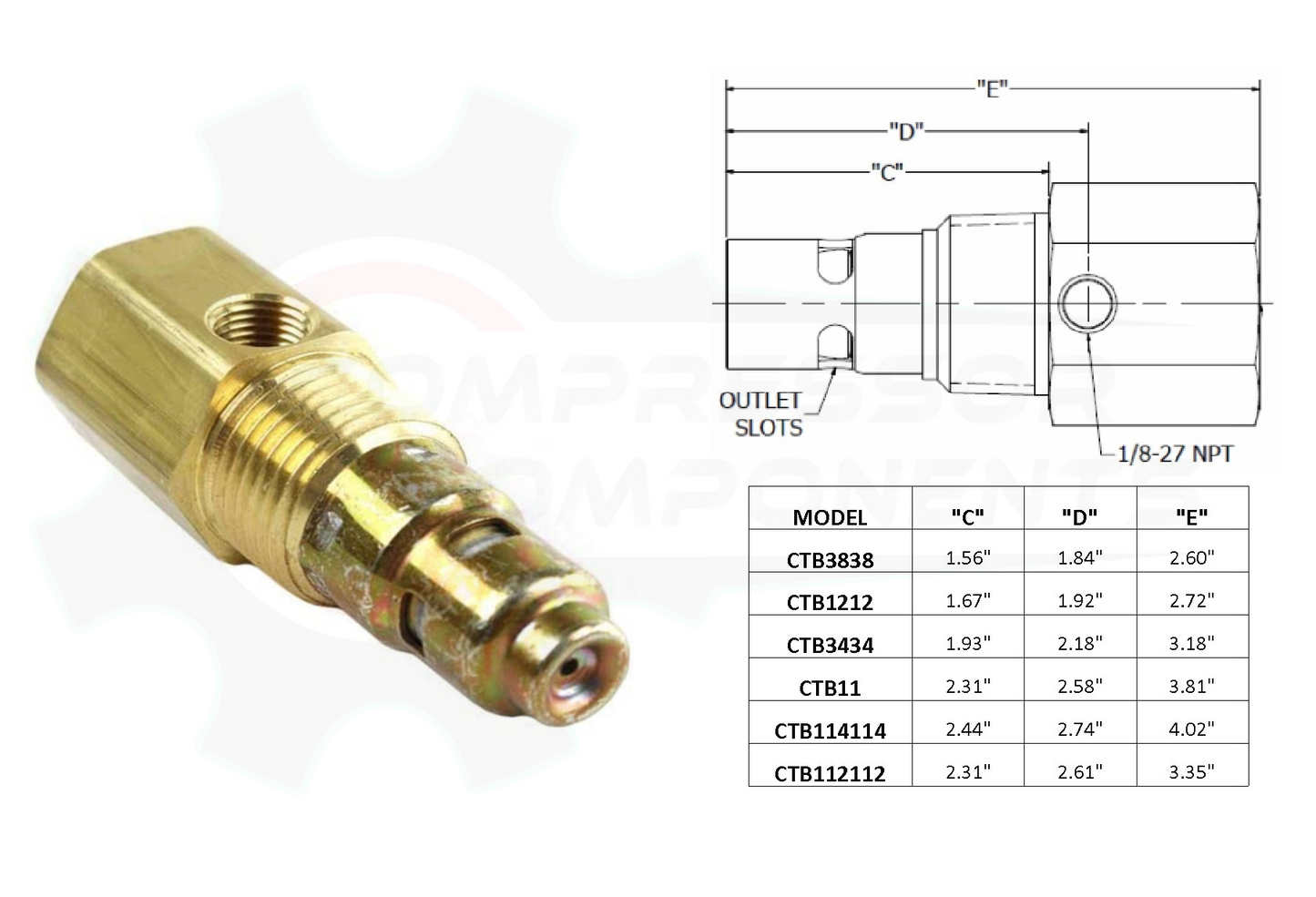

Conrader CTB1114 two-piece brass in-tank air compressor check valve with a 1" FNPT top inlet, 1-1/4" MNPT tank outlet, and standard 1/8" FNPT side/unloader port.

Specifications

Manufacturer part number CTB1114
Conrader numeric reference 4627
Construction Two-piece brass body
Top inlet 1" FNPT
Tank outlet 1-1/4" MNPT
Side / unloader port 1/8" FNPT
Rated flow 95 SCFM at 100 PSIG
Flow factor Cv 13.7
Cracking pressure 1.0 PSI
Maximum pressure 500 PSI
Operating temperature -65°F to 450°F

Selection note: Verify the 1" female inlet, 1-1/4" male tank connection, and 1/8" side-port requirement before ordering.
