Conrader CTB11 Two-Piece In-Tank Check Valve - 1" FNPT x 1" MNPT, 1/8" Unloader

Conrader CTB11 Two-Piece In-Tank Check Valve - 1" FNPT x 1" MNPT, 1/8" Unloader

$52.95 USD
$52.95 USD
Sale Sold out
Orders $25 or more ship free to the lower 48. Shipping details.
Condition : New
Tell a friend
View full details

Product Description

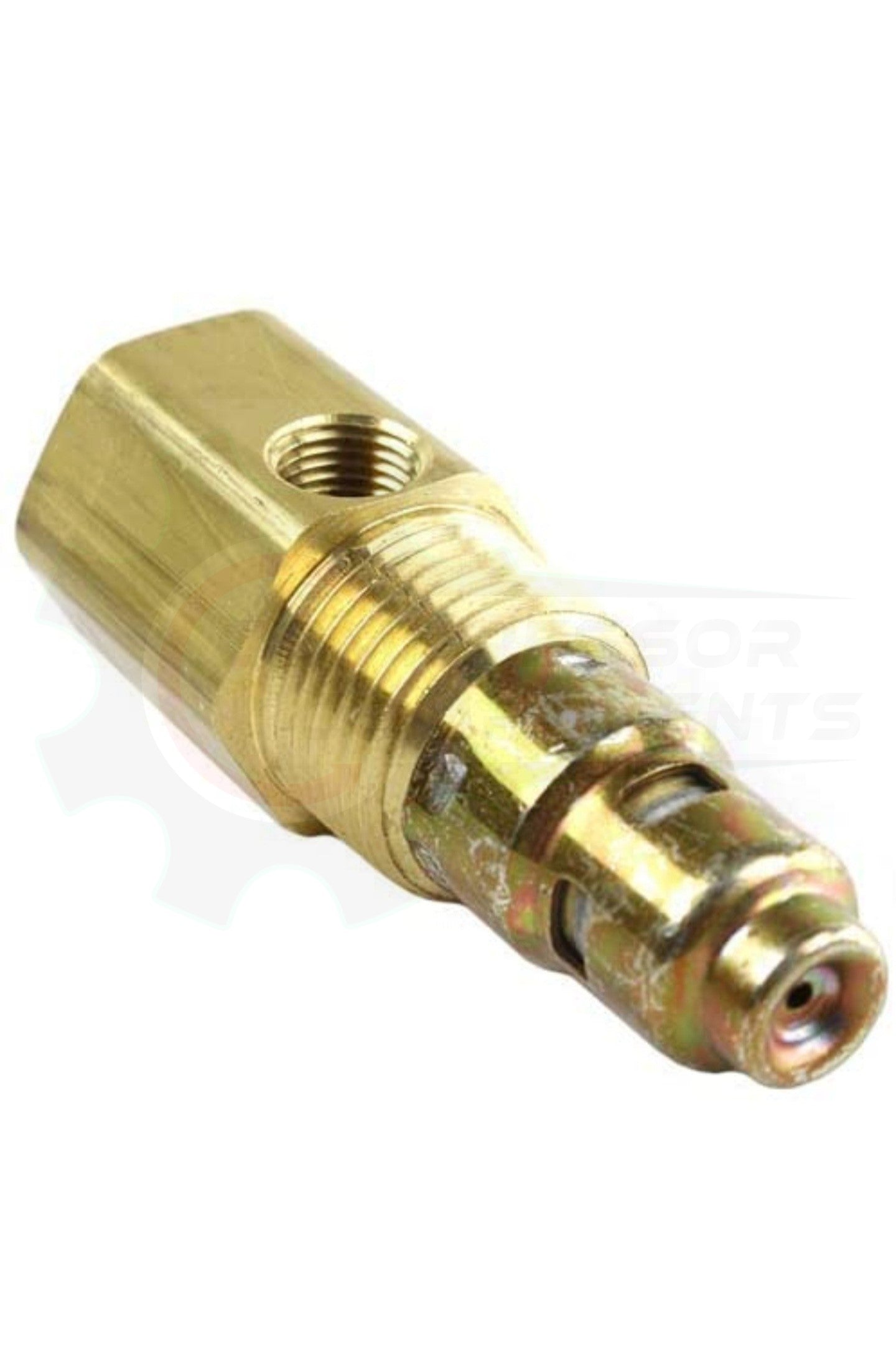

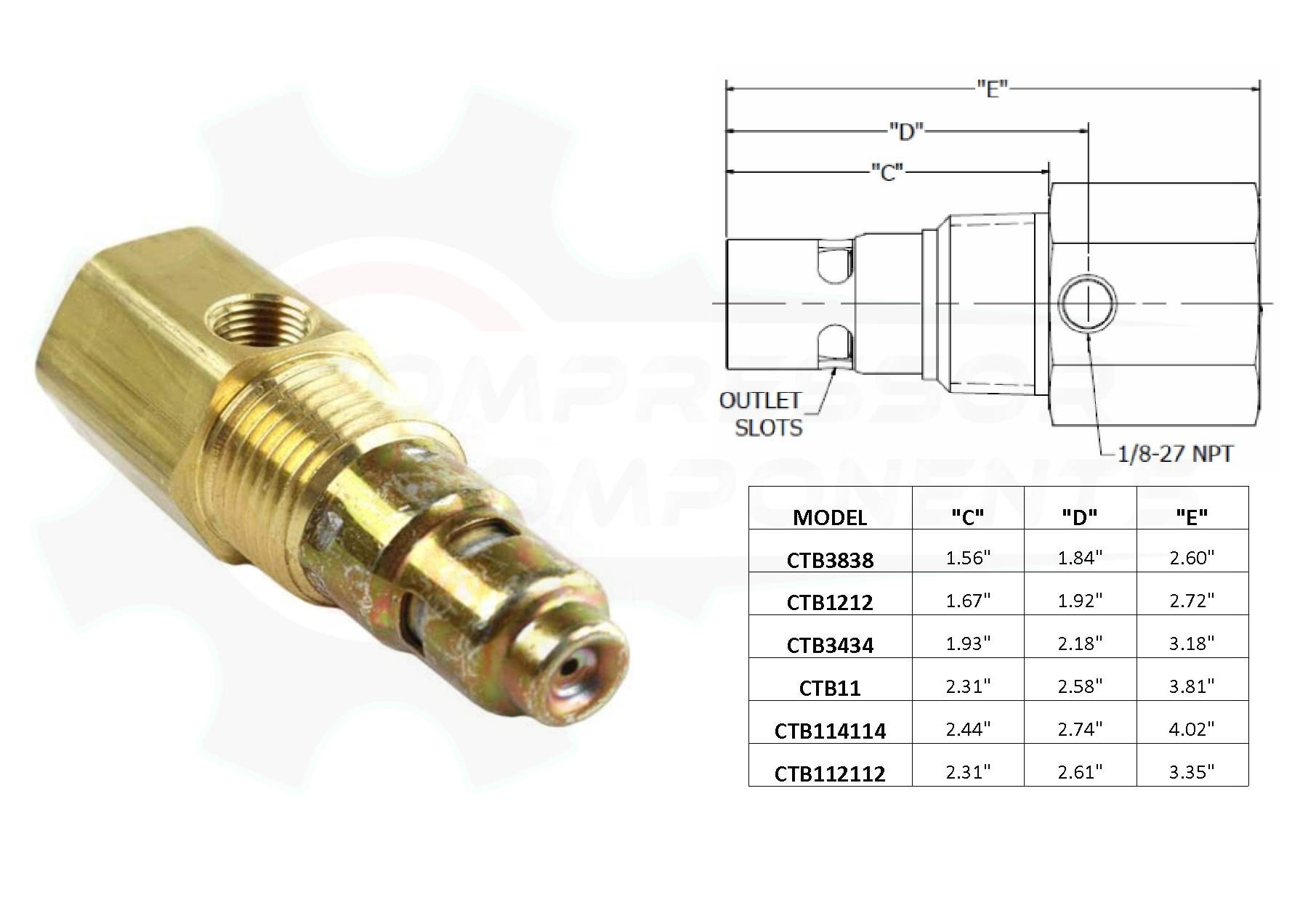

Conrader CTB11 two-piece brass in-tank air compressor check valve with a 1" FNPT top inlet, 1" MNPT tank outlet, and standard 1/8" FNPT side/unloader port.

Specifications

Manufacturer part number CTB11
Conrader numeric reference 0588
Construction Two-piece brass body
Top inlet 1" FNPT
Tank outlet 1" MNPT
Side / unloader port 1/8" FNPT
Rated flow 60 SCFM at 100 PSIG
Flow factor Cv 6.3
Cracking pressure 0.7 PSI
Maximum pressure 500 PSI
Operating temperature -65°F to 450°F

Existing CDI cross-reference: P1010T

Verified Replacement For

  • Champion P03690A
  • Champion P3690A

Selection note: Verify the 1" female inlet, 1" male tank connection, and 1/8" side-port requirement before ordering.
