Conrader CTLB11 In-Tank Check Valve - 1" FNPT x 1" MNPT, 1/8" Unloader

Conrader CTLB11 In-Tank Check Valve - 1" FNPT x 1" MNPT, 1/8" Unloader

$51.95 USD
$51.95 USD
Sale Sold out
Orders $25 or more ship free to the lower 48. Shipping details.
Condition : New
Tell a friend
View full details

Product Description

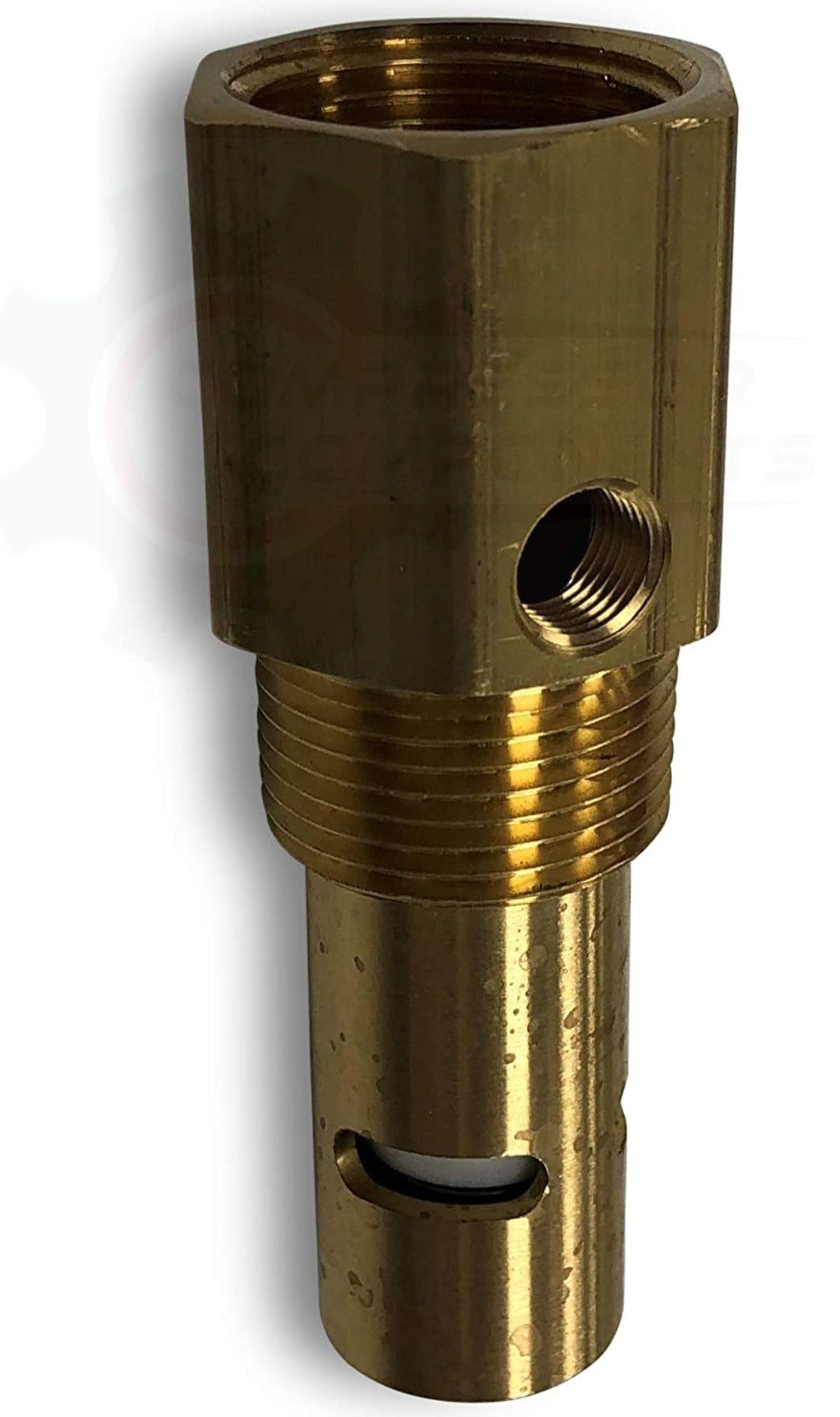

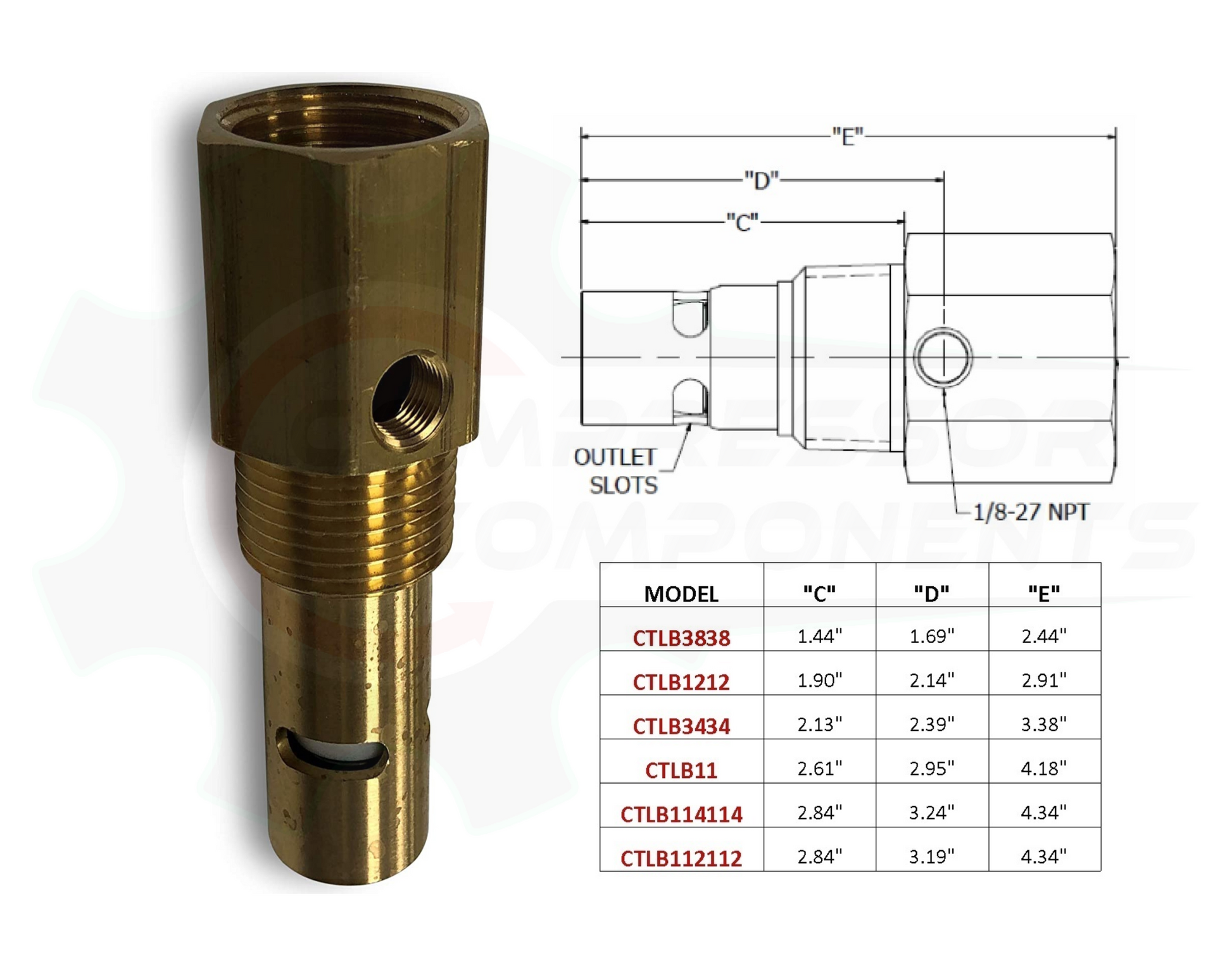

Conrader CTLB11 one-piece brass in-tank air compressor check valve with a 1" FNPT compressor-side inlet, 1" MNPT tank connection, and standard 1/8" NPT side/unloader port.

Specifications

Manufacturer part number CTLB11
Conrader numeric reference 5855
Construction One-piece brass body
Compressor-side inlet 1" FNPT
Tank connection 1" MNPT
Side / unloader port 1/8" NPT
Rated flow 60 SCFM at 100 PSIG
Flow factor Cv 6.3
Cracking pressure 0.8 PSI
Maximum pressure 500 PSI
Maximum temperature 450°F

Existing CDI cross-reference: P1010T

Verified Replacement For

  • Champion P03690A

Selection note: Verify the 1" FNPT inlet, 1" MNPT tank connection, and 1/8" unloader-port requirement before ordering.
