Kingston KTD-S-B-24 Timed Electronic Condensate Drain Valve - 110VAC

Kingston KTD-S-B-24 Timed Electronic Condensate Drain Valve - 110VAC

Regular price $99.95 USD
Regular price Sale price $99.95 USD
Sale Sold out
Orders $25 or more ship free to the lower 48. Shipping details.
Condition : New

View full details

Product Description

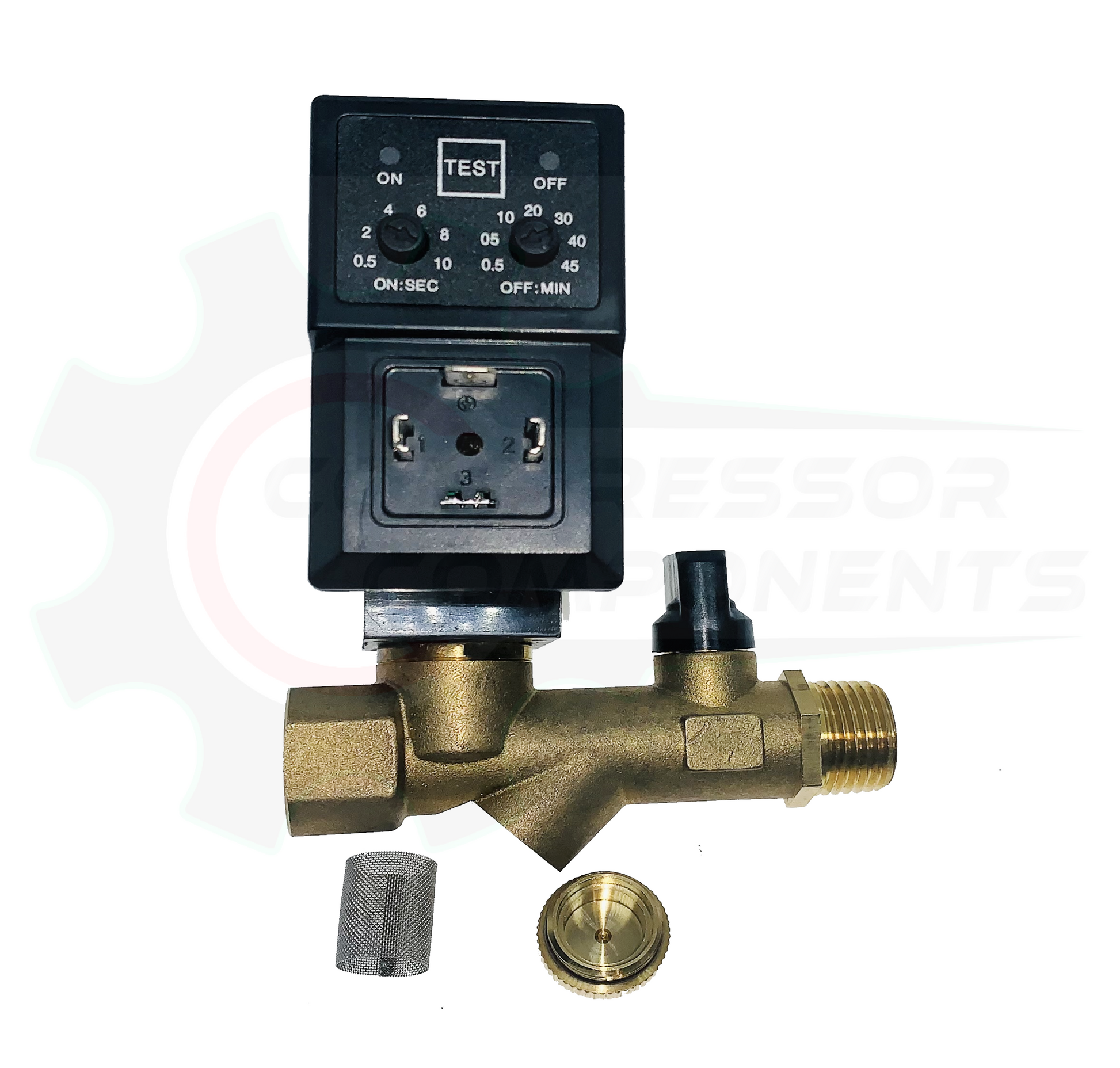

Kingston KTD-S-B-24 Timed Electronic Condensate Drain Valve is designed for automatic condensate removal on compressed-air systems. It combines an adjustable electronic timer, integral strainer, and ball valve in one serviceable drain assembly.

Product Specifications

  • Manufacturer: Kingston
  • Part number: KTD-S-B-24
  • Voltage: 110VAC, 50/60Hz
  • Maximum operating pressure: 300 PSI
  • Temperature range: -40°F to 140°F
  • Inlet: Dual inlet — 1/4" NPT female / 1/2" NPT male
  • Outlet: 1/2" NPT female
  • Interval time: 0.5 to 45 minutes, adjustable
  • Discharge time: 0.5 to 10 seconds, adjustable
  • Protection: IP65 when installed

Features

  • Integral strainer helps protect the valve from debris
  • Integrated ball valve simplifies isolation and service
  • Adjustable timer and discharge duration
  • Designed for compressed-air condensate drainage

Selection note: Verify voltage, connection sizes, pressure, and temperature requirements before installation.
