Square D B-28 Type B Thermal Overload Heater Element - Class 20

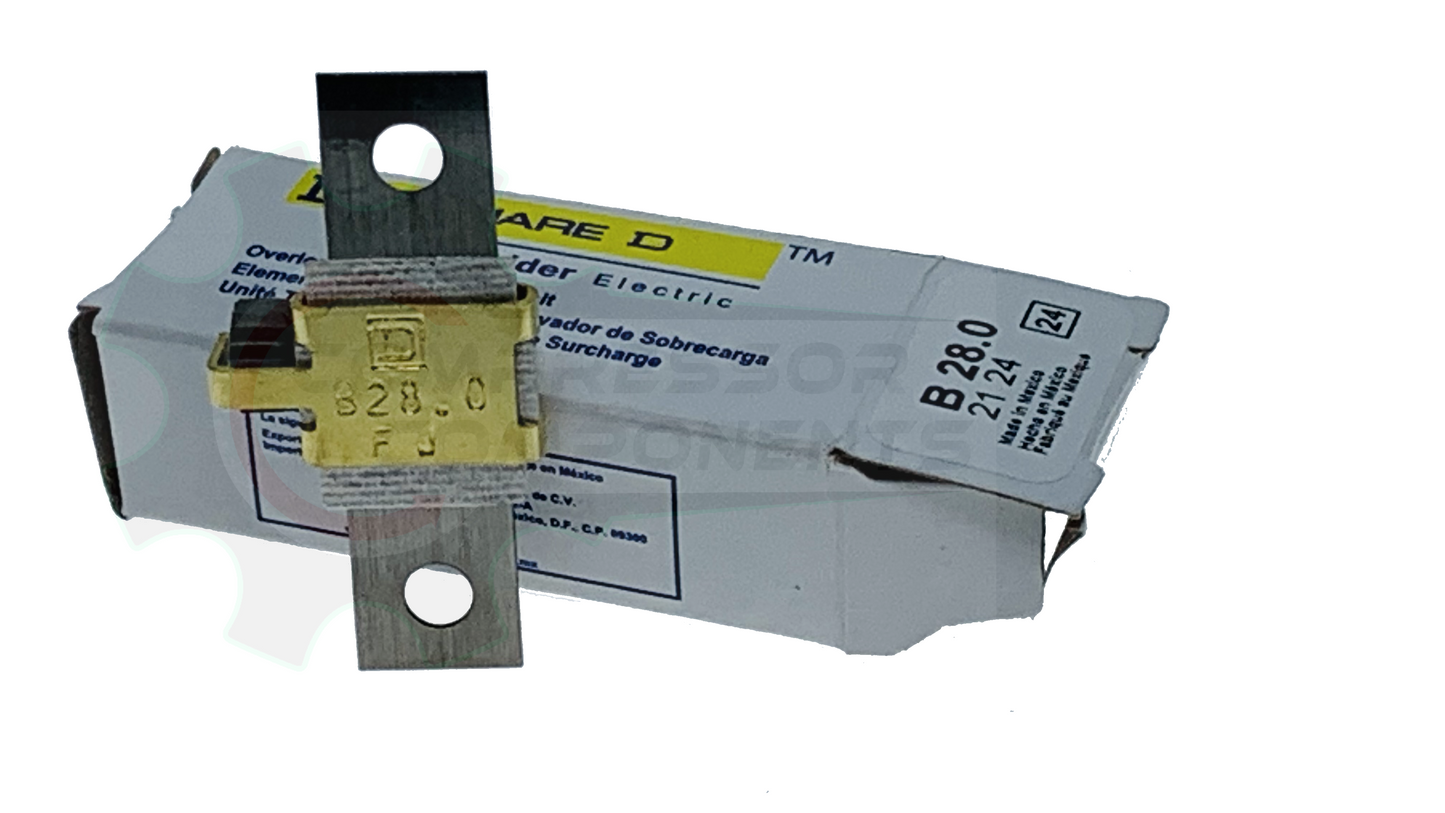

Square D B-28 (B28.0) is a Type B thermal overload heater element for compatible Square D motor starter overload assemblies. Use the exact heater number and the selection table specified for your starter when replacing or selecting thermal units.
Specifications
| Manufacturer | Square D / Schneider Electric |
|---|---|
| Catalog number | B28.0 |
| Listing SKU | B-28 |
| Component type | Thermal overload heater element |
| Thermal unit family | Type B |
| Motor current selection | Depends on starter type, thermal-unit quantity and applicable selection table |
| Thermal overload type | Melting alloy |
| Motor tripping class | Class 20 |
Selection and application
Match the starter class, type and size, the motor nameplate full-load current, and the required number of thermal units. The heater number is not a universal motor-amp rating. Current ranges vary between Schneider selection tables and between one- and three-thermal-unit installations. Match the existing part only after confirming it is correctly selected for the motor. This is a heater element, not a complete overload relay or short-circuit protective device.
Schneider Electric overload relay and thermal-unit selection catalog
Schneider Electric thermal-unit sizing guidance
Related Square D Controls
Shop Square D overload heaters or complete Square D motor starters. Use the selection chart supplied for the actual starter to determine the required heater number and quantity.
