WEG BCA4-40V04 24V AC Replacement Coil for CWM32 & CWM40 Contactors
WEG BCA4-40V04 24V AC Replacement Coil for CWM32 & CWM40 Contactors
Regular price
$33.95 USD
Regular price
Sale price
$33.95 USD
Unit price
per
Orders $25 or more ship free to the lower 48. Shipping details.
Condition :
New
Couldn't load pickup availability
View full details
Product Description

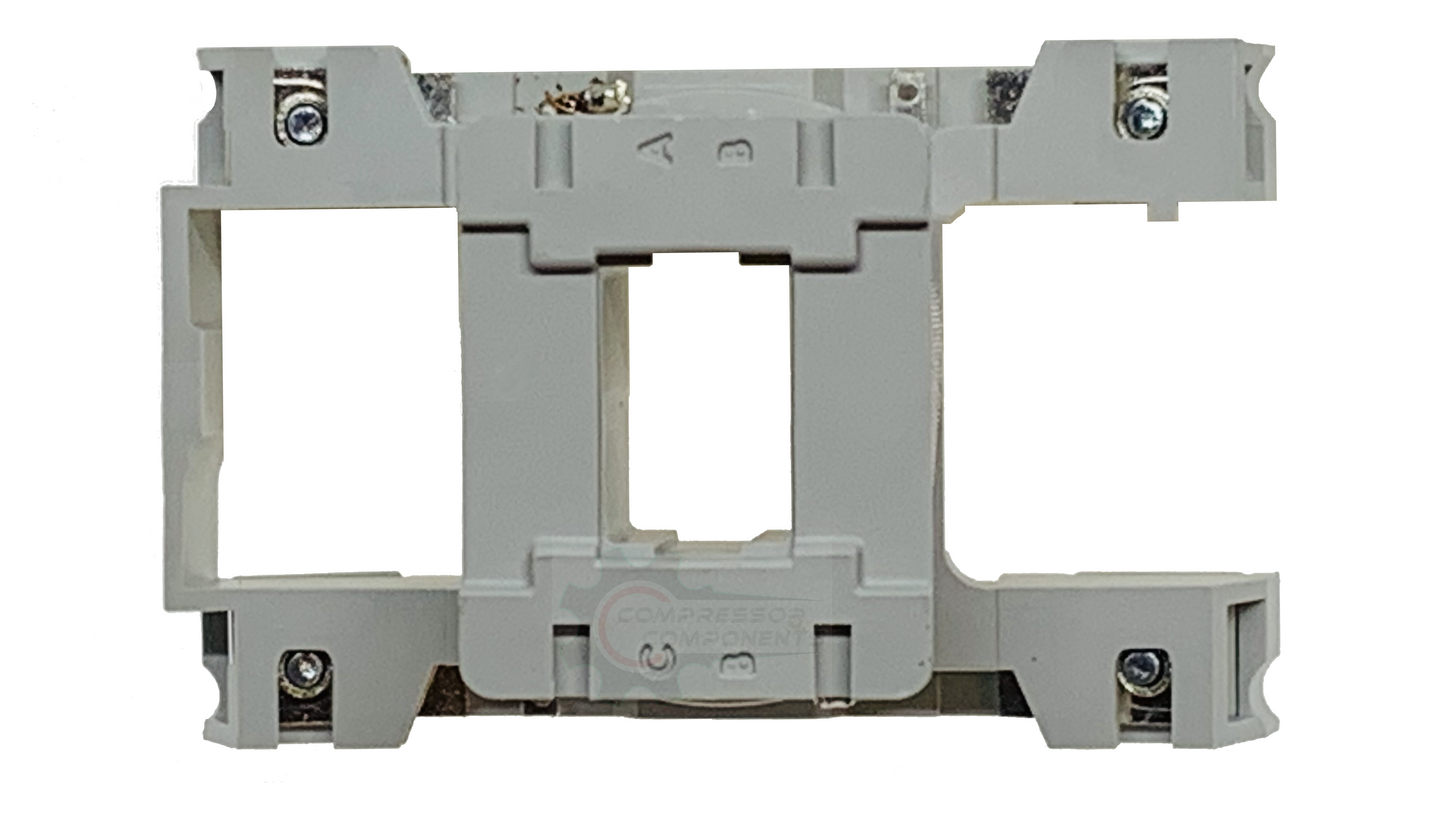

WEG BCA4-40V04 replacement AC coil for legacy WEG CWM32 and CWM40 contactors. The V04 coil is rated 20 VAC at 50 Hz / 24 VAC at 60 Hz and uses the four-terminal CWM32/40 coil configuration.
Technical Specifications
| Manufacturer | WEG |
|---|---|
| Part number | BCA4-40V04 |
| WEG material number | 10047467 |
| Coil voltage | 20 VAC at 50 Hz / 24 VAC at 60 Hz |
| Control type | AC |
| Coil configuration | 4-terminal |
| Terminal type | Screw terminal |
Compatible contactors: WEG CWM32 and CWM40
Other BCA4-40 Replacement Coil Voltages We Carry
- BCA4-40V18 — 110V 50 Hz / 120V 60 Hz
- BCA4-40V23 — 200V 50 Hz / 208V 60 Hz
- BCA4-40V24 — 208–240V 60 Hz
- BCA4-40V47 — 400–415V 50 Hz / 480V 60 Hz
Selection Note
This is a replacement coil for the legacy WEG CWM32/CWM40 contactor platform. It is not a replacement coil for current CWB-series contactors. Verify the contactor model, frequency and required control voltage before ordering.
Need help confirming the correct coil? Contact Compressor Components with the contactor model and control voltage and we can help verify the correct replacement before you order.
