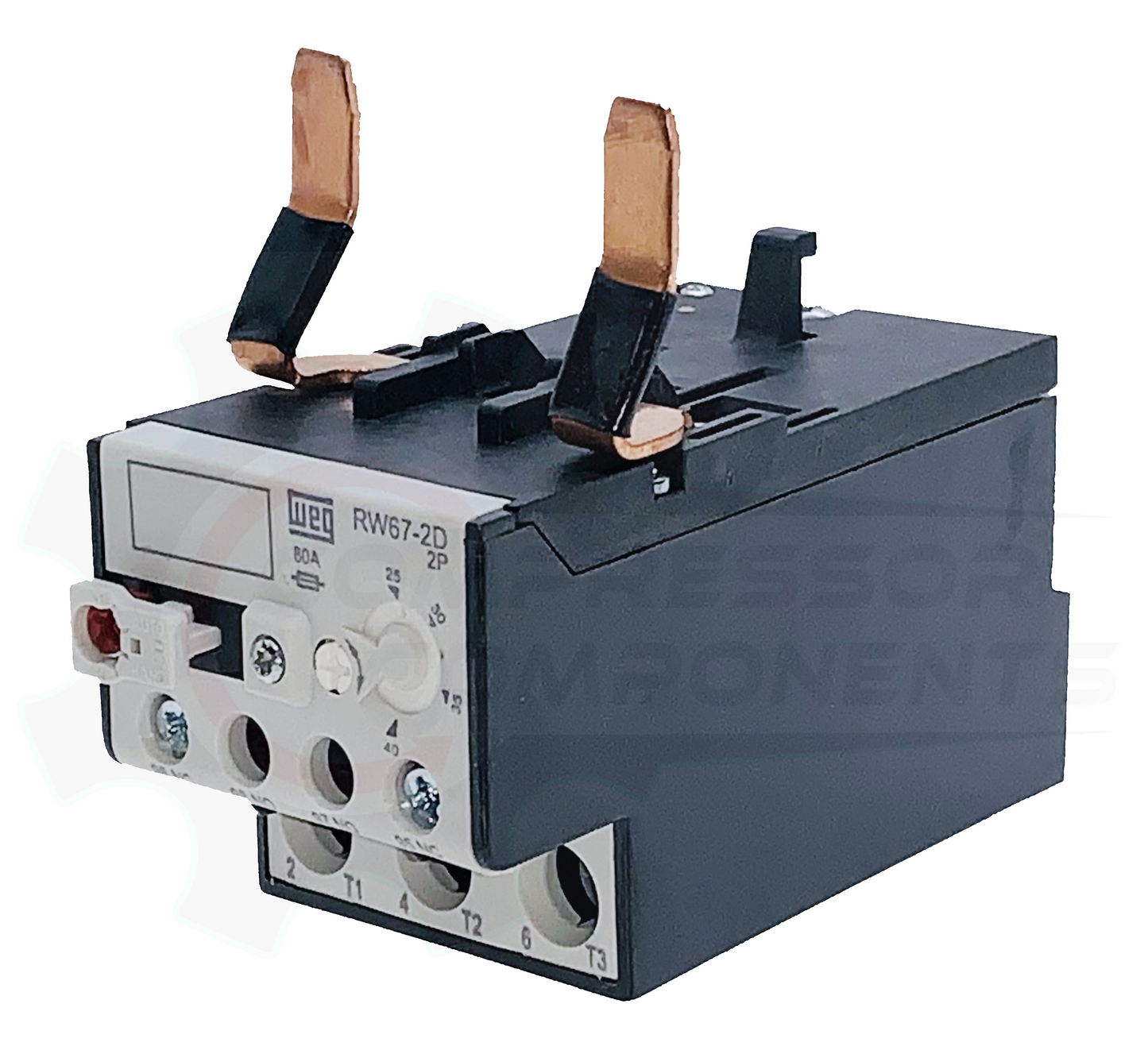

WEG RW67-2D2-U040 Thermal Overload Relay - 25–40 A, 2-Pole

WEG RW67-2D2-U040 Thermal Overload Relay - 25–40 A, 2-Pole

Regular price $72.25 USD
Regular price Sale price $72.25 USD
Sale Sold out
Orders $25 or more ship free to the lower 48. Shipping details.
Condition : New

View full details

Product Description

WEG RW67-2D2-U040 Thermal Overload Relay - 25–40 A, 2-Pole

WEG RW67-2D2-U040 is an adjustable thermal overload relay for compatible WEG CWM50 through CWM80 contactors. Its 25–40 A adjustment range and 2-pole construction suit single-phase motor starter applications when the motor current and starter configuration match.

Specifications

Manufacturer WEG
Catalog number RW67-2D2-U040
Adjustable overload range 25–40 A
Poles 2
Motor application Single-phase
Compatible contactor family CWM50 through CWM80
Protection type Thermal overload
Trip class 10

Selection and application

Match the complete relay number, mounting pattern, pole count and adjustment range to the existing starter. Select and set the relay using the motor nameplate current and WEG instructions. These are CWM-series relay configurations; verify mounting before substituting a relay intended for a CWB contactor. An overload relay requires suitable short-circuit protection and is not a circuit breaker.

WEG thermal overload relay catalog

Related WEG Controls

RW67-1D2-U040 — same current adjustment range, different mounting. The linked relay uses a different CWM mounting configuration. Match the contactor model before ordering.

Replacing the complete starter? Shop WEG enclosed motor starters. Select the complete assembly by motor current, horsepower, phase, supply voltage and control voltage. Current CWB starter assemblies use their own matching overload relays; this legacy CWM relay is for the contactor family identified in the table above.
