Conrader CTB3434 Two-Piece In-Tank Check Valve - 3/4" FNPT x 3/4" MNPT, 1/8" Unloader

Conrader CTB3434 Two-Piece In-Tank Check Valve - 3/4" FNPT x 3/4" MNPT, 1/8" Unloader

$26.95 USD
$26.95 USD
Sale Sold out
Orders $25 or more ship free to the lower 48. Shipping details.
Condition : New
Tell a friend
View full details

Product Description

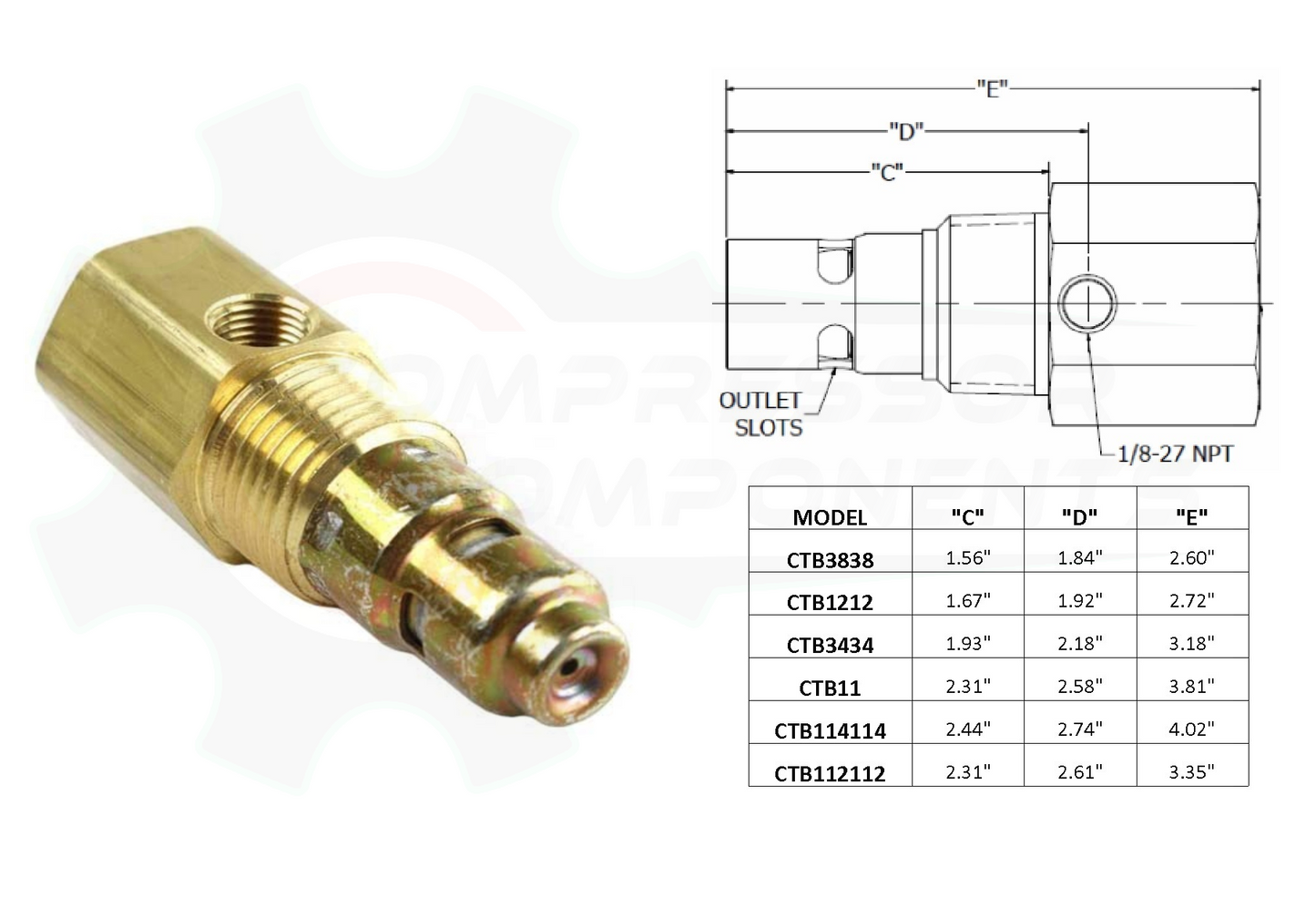

Conrader CTB3434 two-piece brass in-tank air compressor check valve with a 3/4" FNPT top inlet, 3/4" MNPT tank outlet, and standard 1/8" FNPT side/unloader port.

Specifications

Manufacturer part number CTB3434
Conrader numeric reference 0581
Construction Two-piece brass body
Top inlet 3/4" FNPT
Tank outlet 3/4" MNPT
Side / unloader port 1/8" FNPT
Rated flow 30 SCFM at 100 PSIG
Flow factor Cv 3.9
Cracking pressure 0.5 PSI
Maximum pressure 500 PSI
Operating temperature -65°F to 450°F

Existing CDI cross-reference: P7575T

Verified Replacement For

  • Champion P05822A
  • Champion P07538A

Verified on Champion R10D, R15B, and R30 pump applications using the P7575T configuration.

Selection note: Verify the 3/4" female inlet, 3/4" male tank connection, and 1/8" side-port requirement before ordering.
