Conrader CTLB3434-TT In-Tank Check Valve - 3/4" FNPT x 3/4" MNPT, Dual 1/8" Ports

Conrader CTLB3434-TT In-Tank Check Valve - 3/4" FNPT x 3/4" MNPT, Dual 1/8" Ports

$35.95 USD
$35.95 USD
Sale Sold out
Orders $25 or more ship free to the lower 48. Shipping details.
Condition : New
Tell a friend
View full details

Product Description

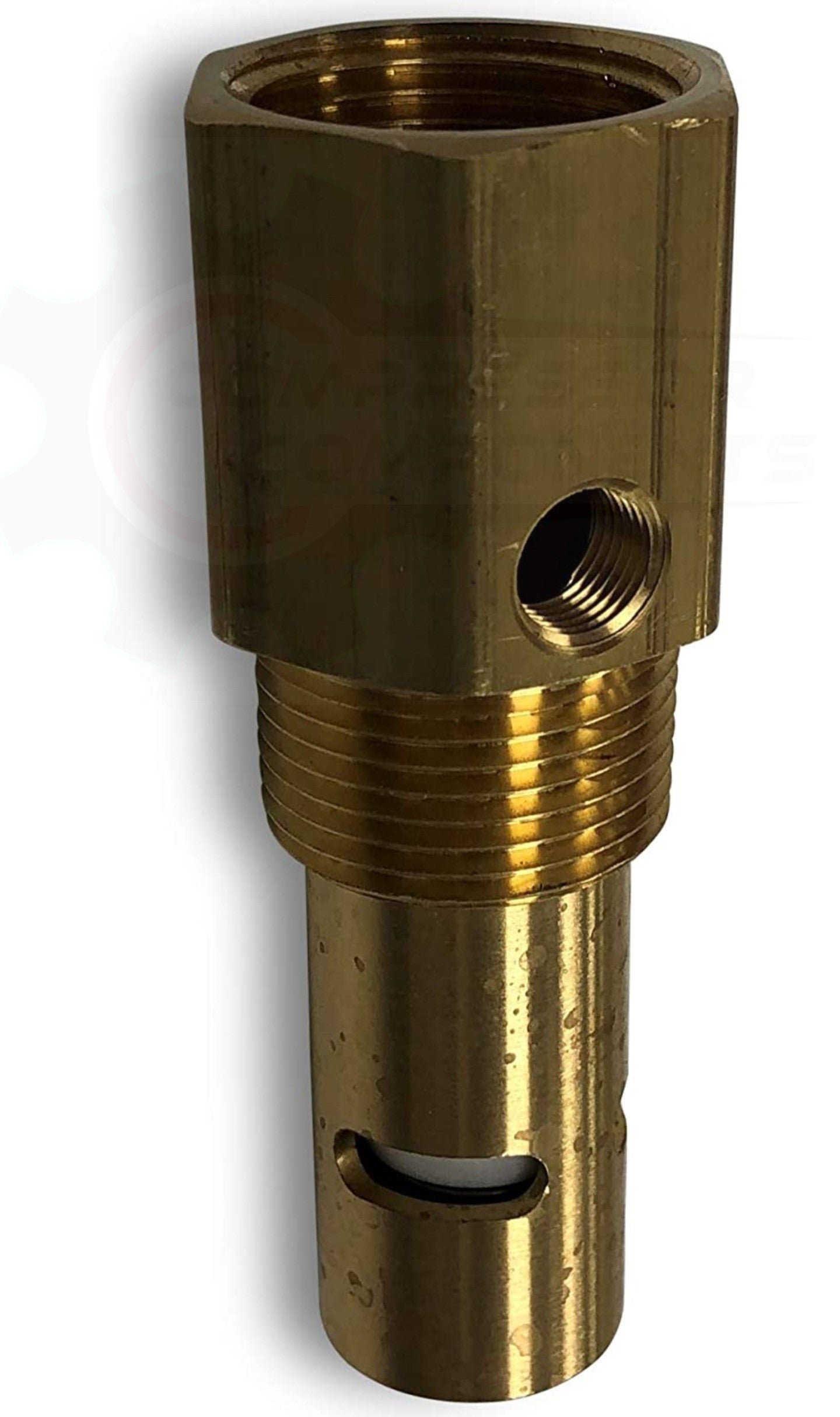

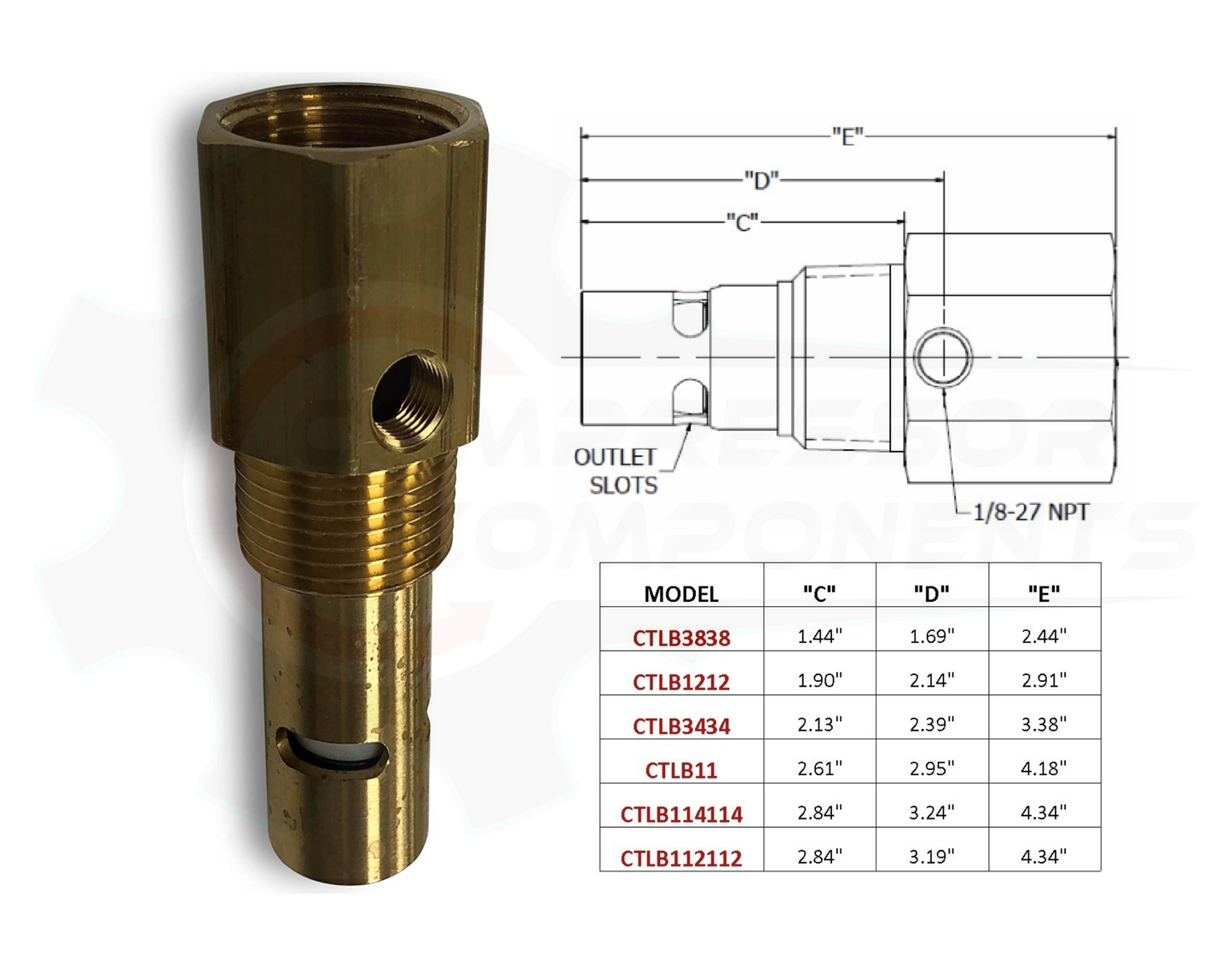

Conrader CTLB3434-TT one-piece brass in-tank air compressor check valve with a 3/4" FNPT compressor-side inlet, 3/4" MNPT tank connection, and two 1/8" NPT tapped auxiliary/unloader ports.

Specifications

Manufacturer part number CTLB3434-TT
Construction C360 machined one-piece brass body
Spring 302 stainless steel
Poppet Glass-filled PTFE
Compressor-side inlet 3/4" FNPT
Tank connection 3/4" MNPT
Auxiliary / unloader ports Two 1/8" NPT tapped ports
Rated flow 30 SCFM
Maximum pressure 500 PSI
Maximum temperature 450°F

Existing CDI cross-reference: P7575TT

Selection note: This is the double-tapped version. Verify the 3/4" inlet/outlet connection sizes and dual-port requirement before ordering.
