Conrader SRV530 High-Flow Safety Relief Valve - 3/4" MNPT, Select PSI

Conrader SRV530 High-Flow Safety Relief Valve - 3/4" MNPT, Select PSI

Regular price $48.15 USD
Regular price Sale price $48.15 USD
Sale Sold out
Orders $25 or more ship free to the lower 48. Shipping details.
Condition : New

View full details

Product Description

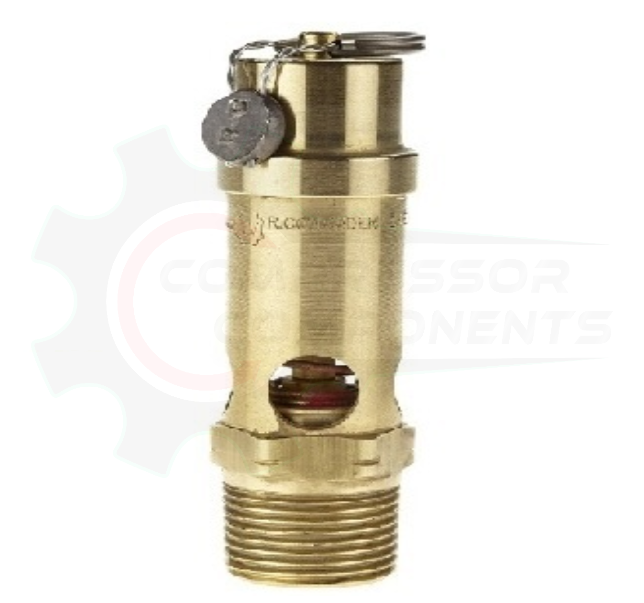

Conrader SRV530 High-Flow Safety Relief Valve

Brass air compressor safety relief valve with a 3/4" male NPT inlet and a silicone soft seat. Select the preset pressure required by your equipment. Each option is a separate valve with its own pressure setting and relieving capacity.

Specifications

Manufacturer Conrader
Model SRV530-3/4
Inlet connection 3/4" male NPT
Valve type High-flow soft-seat safety relief / pop-off valve
Body Brass
Standard seal Silicone
Spring 17-7 stainless steel
Pressure setting Choose one preset setting from 25–300 PSIG
Relieving capacity 143–1,154 SCFM, depending on selected pressure; see chart below
Operating temperature −65°F to 400°F (standard silicone configuration)
Set-pressure tolerance ±2 PSIG through 70 PSIG; ±3% above 70 PSIG
Standard code configuration ASME BPVC Section XIII; CSA B51

Pressure Settings and Relieving Capacity

The pressure selector identifies the preset pressure and corresponding relieving capacity in SCFM (standard cubic feet per minute). This capacity is not the compressor’s normal operating airflow.

25 PSIG 143 SCFM
50 PSIG 233 SCFM
75 PSIG 325 SCFM
100 PSIG 417 SCFM
125 PSIG 509 SCFM
135 PSIG 546 SCFM
140 PSIG 565 SCFM
150 PSIG 601 SCFM
165 PSIG 657 SCFM
175 PSIG 694 SCFM
200 PSIG 786 SCFM
225 PSIG 878 SCFM
250 PSIG 970 SCFM
275 PSIG 1,062 SCFM
300 PSIG 1,154 SCFM

Selection and Installation Notes

Match the original valve’s inlet thread, specified relief pressure, required relieving capacity and certification. Do not select by thread size alone or increase the relief setting to prevent nuisance opening. The selected setting must comply with the equipment manufacturer’s requirements and the protected vessel’s maximum allowable working pressure. This valve does not replace the compressor’s pressure switch or operating pressure control.

The available 25–300 PSIG settings describe separate preset variants, not a user-adjustable range. Use the valve type specified by the equipment manufacturer for hot compressor-discharge service. Install and service according to the equipment and valve manufacturer’s instructions.

Conrader SRV530 technical datasheet and capacity chart
