Conrader CTLD3812 In-Tank Check Valve - 3/8" Tube x 1/2" MNPT, 1/8" Unloader
Conrader CTLD3812 In-Tank Check Valve - 3/8" Tube x 1/2" MNPT, 1/8" Unloader
Regular price
$20.95 USD
Regular price
Sale price
$20.95 USD
Unit price
per
Orders $25 or more ship free to the lower 48. Shipping details.
Condition :
New
Couldn't load pickup availability
View full details
Product Description

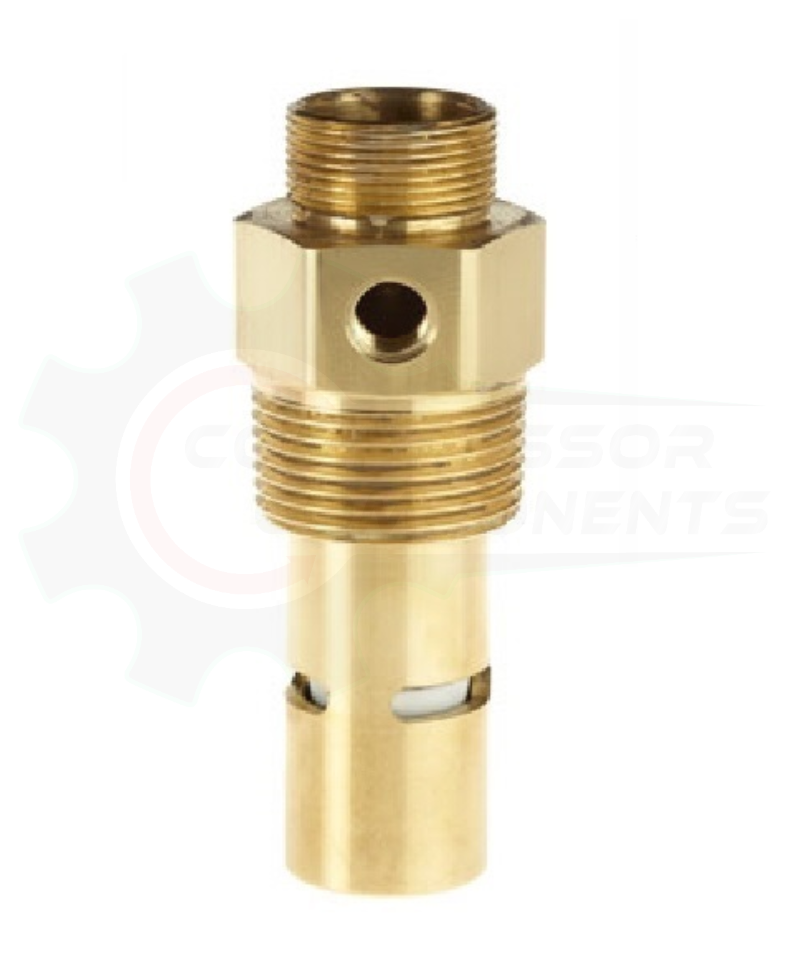

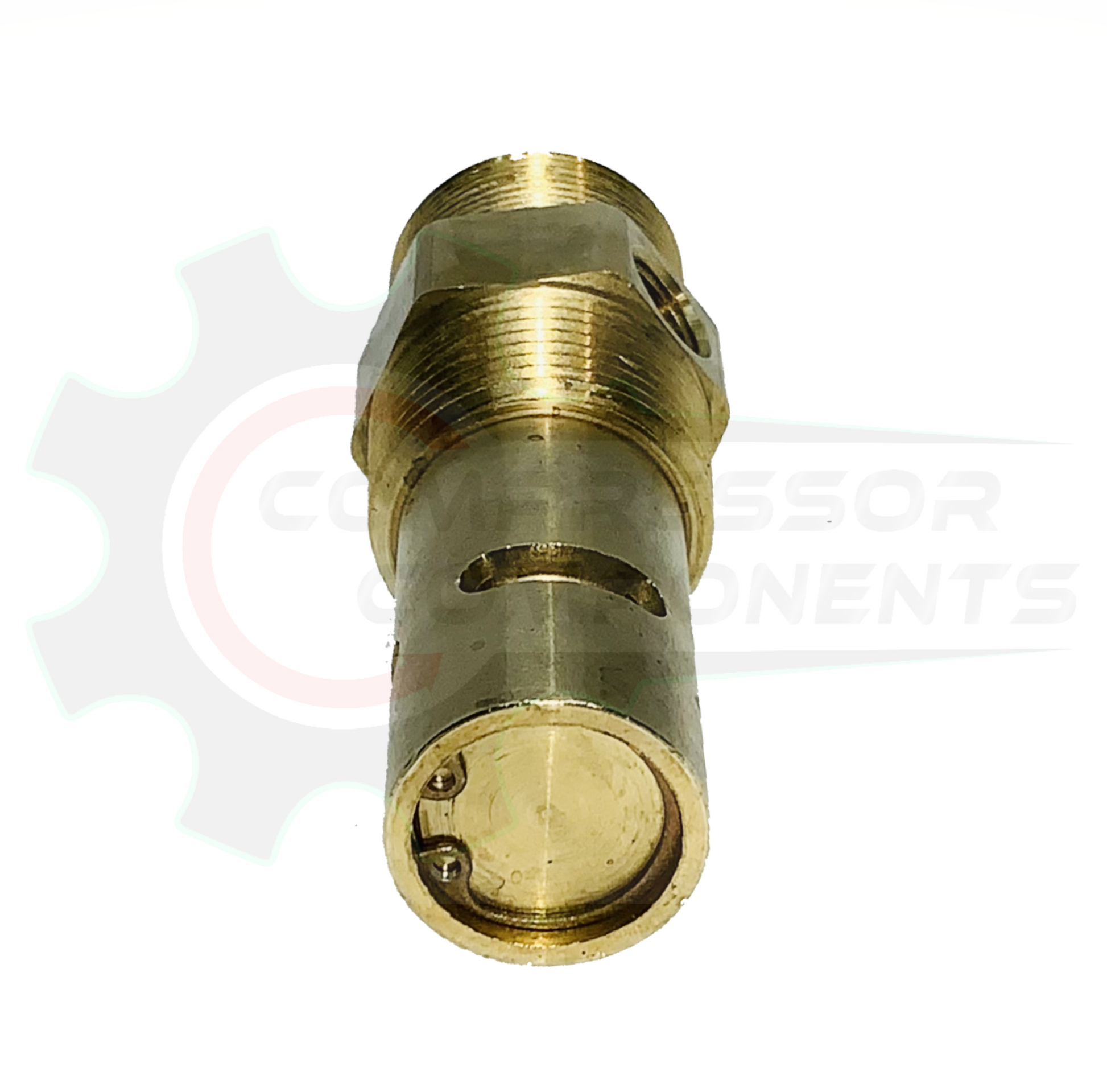

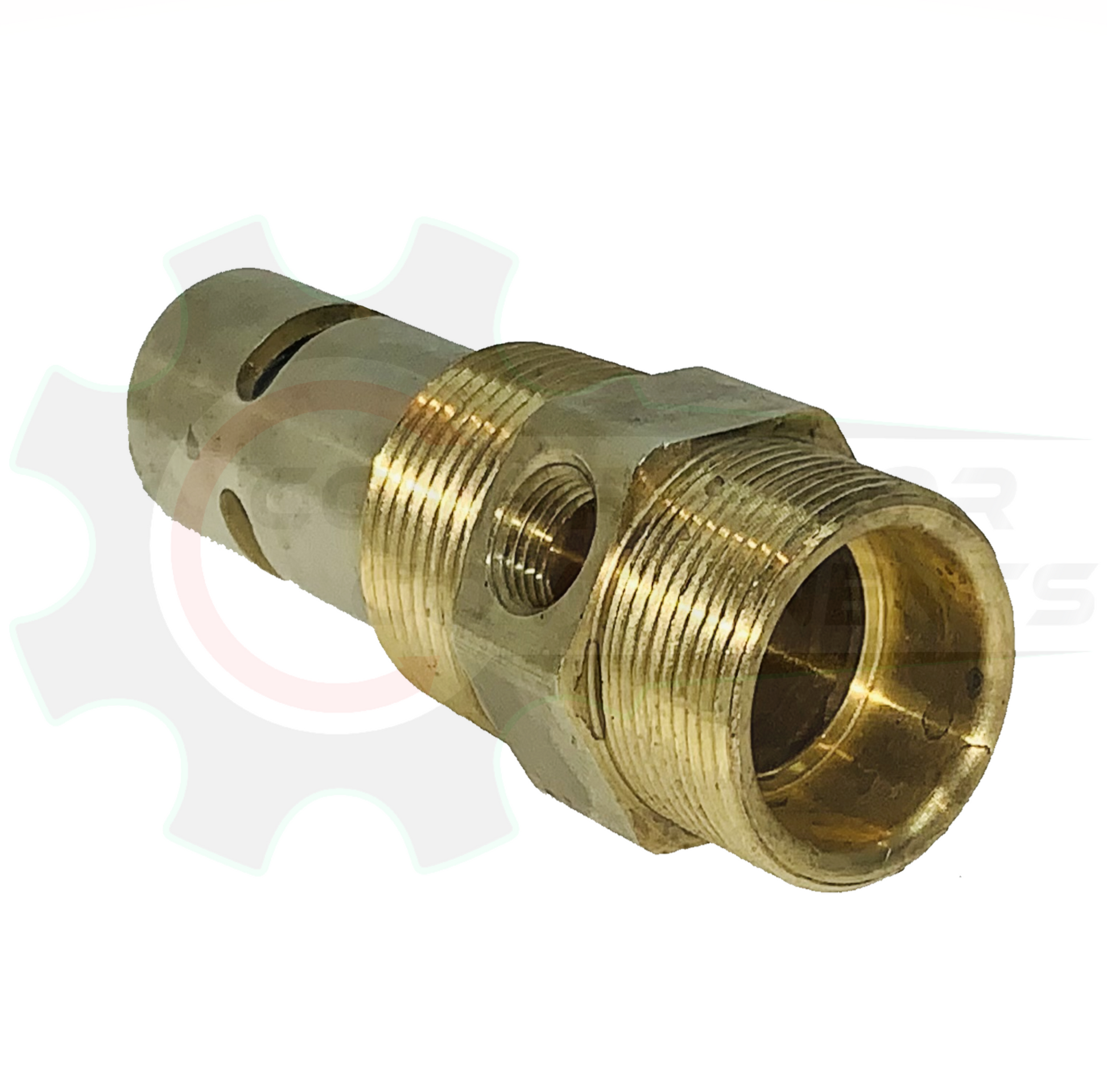

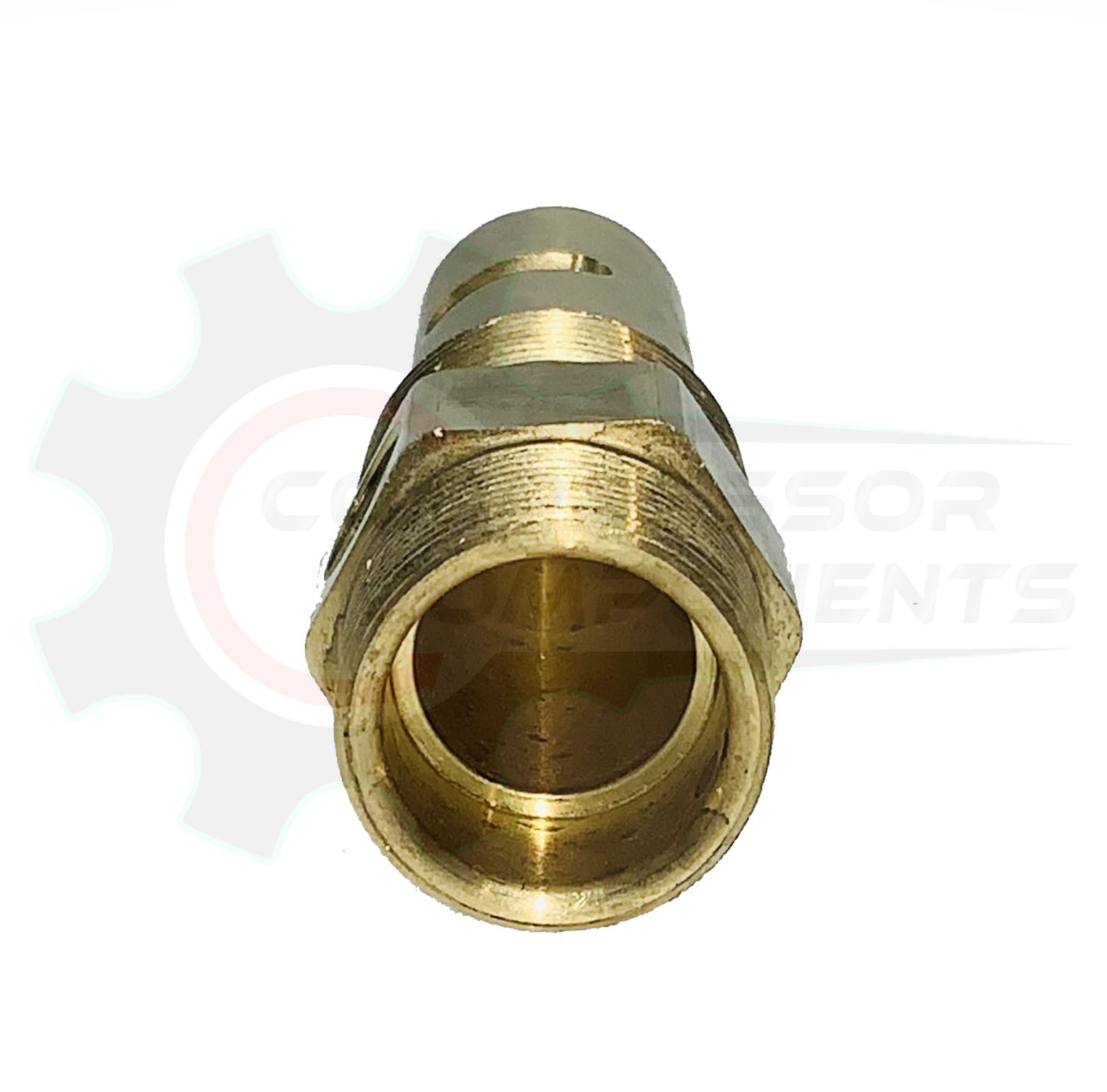

The Conrader CTLD3812 is a compression-inlet air compressor tank check valve. It admits discharge air into the receiver and helps prevent stored air from flowing back toward the pump when the compressor stops.
Specifications
| Manufacturer / model | Conrader CTLD3812 |
|---|---|
| Top inlet | 3/8" outside-diameter tube compression |
| Tank outlet | 1/2" male NPT |
| Side port | 1/8" FNPT unloader connection |
| Body | one-piece brass |
| Rated flow | 20 SCFM at 100 PSIG |
| Flow factor | Cv 2.3 |
| Cracking pressure | 2.4 PSI |
| CTLD series maximum operating pressure | 500 PSIG |
| CTLD series operating temperature range | -65°F to 450°F |
Part identification and replacement references
- Existing CDI reference: C3850T
- Conrader part number: 5853
- Replacement reference: Powermate / Sanborn 031-0037 (031-0037RP)
Selection notes
Compression inlet sizes refer to the tube's outside diameter, not pipe-thread size. Match the tube OD, tank thread, valve insertion clearance, and unloader-line arrangement to the existing installation. Confirm the 1/8-inch side-port connection before ordering. Replacement references identify the connection configuration; confirm dimensions and clearance against the original valve before installation. Isolate power and fully depressurize the receiver before servicing.
