Conrader RCLS-HU Pilot Valve with Hand Unloader - 3/8" FNPT Inlet, Select PSI
Conrader RCLS-HU Pilot Valve with Hand Unloader - 3/8" FNPT Inlet, Select PSI
Couldn't load pickup availability
View full details
Product Description

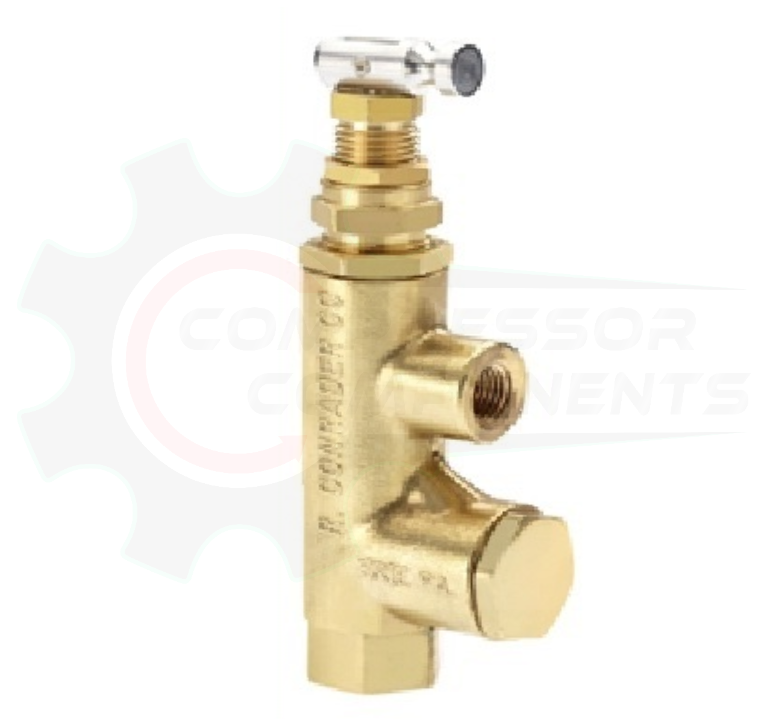

Conrader RCLS-HU Pilot Valve with Manual Hand Unloader
The Conrader RCLS-HU uses receiver pressure to send a pneumatic control signal to compressor unloaders, throttle controls or other compatible devices. This model has a 3/8" FNPT inlet and a 1/4" FNPT pilot outlet, with a built-in inlet strainer. The hand lever provides manual unloading control.
Specifications
| Manufacturer | Conrader |
|---|---|
| Model | RCLS-HU |
| Valve function | Pneumatic pilot control |
| Manual control | Hand unloader lever |
| Inlet | 3/8" FNPT |
| Pilot outlet | 1/4" FNPT |
| Body material | Brass |
| Pressure setting | Select the required cut-in / cut-out pair |
| Inlet filtration | Built-in strainer |
Available Pressure Settings
The lower number is the load (cut-in) setting. The higher number is the unload (cut-out) setting. At cut-out, the pilot opens to pressurize the downstream control line; at cut-in, it closes and releases that control signal.
| 95-115 PSI | Loads at 95 PSI; unloads at 115 PSI |
|---|---|
| 95-125 PSI | Loads at 95 PSI; unloads at 125 PSI |
| 110-125 PSI | Loads at 110 PSI; unloads at 125 PSI |
| 125-150 PSI | Loads at 125 PSI; unloads at 150 PSI |
| 135-165 PSI | Loads at 135 PSI; unloads at 165 PSI |
| 145-175 PSI | Loads at 145 PSI; unloads at 175 PSI |
Application and Selection
Match the original inlet thread, pilot outlet connection, mounting and both pressure settings. This valve controls another device through a pilot signal; it is not a direct replacement for a discharge-unloader/check-valve combination or a certified safety relief valve. Keep the compressor’s separate pressure-protection devices in place.
