Product Description

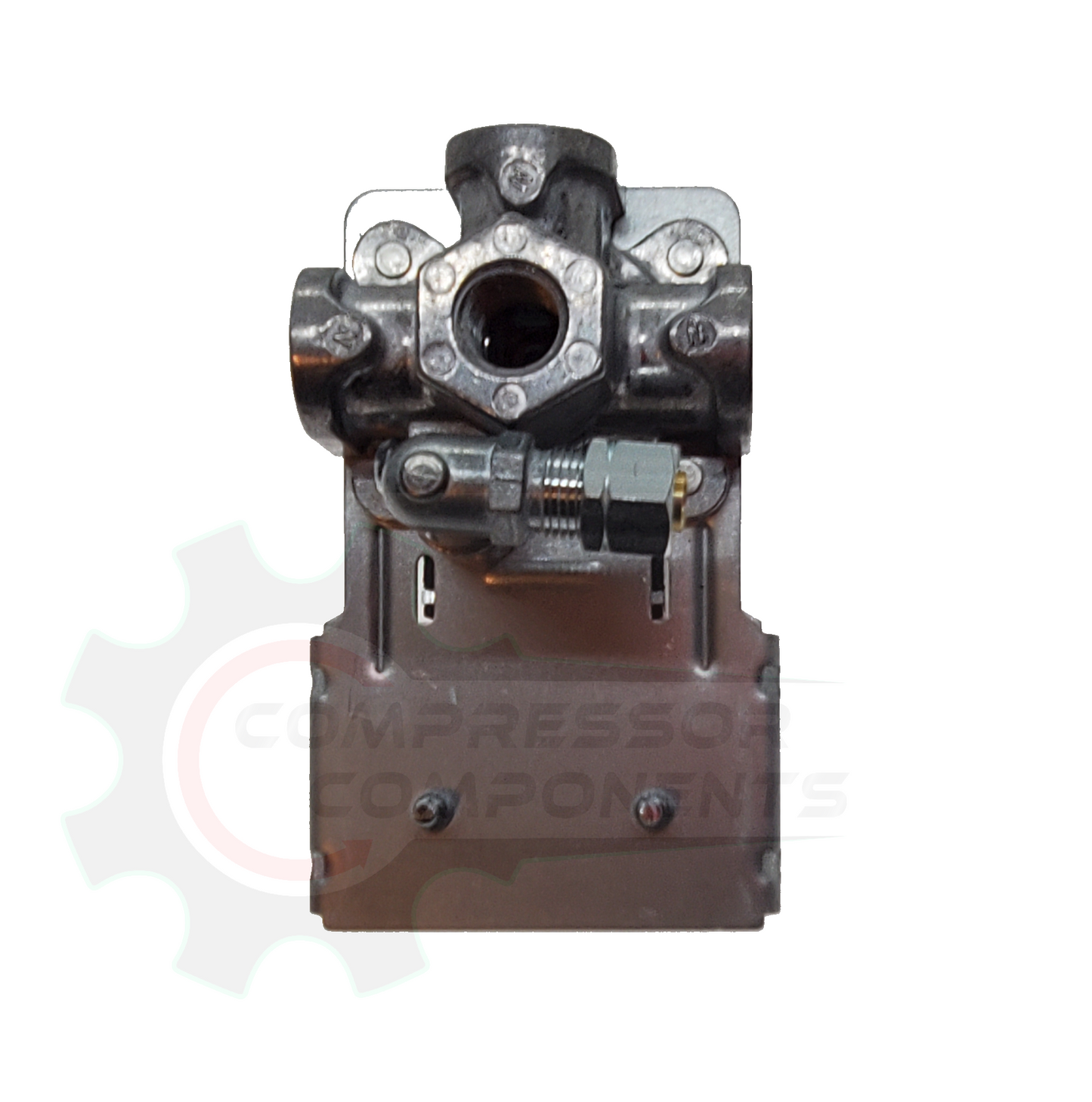

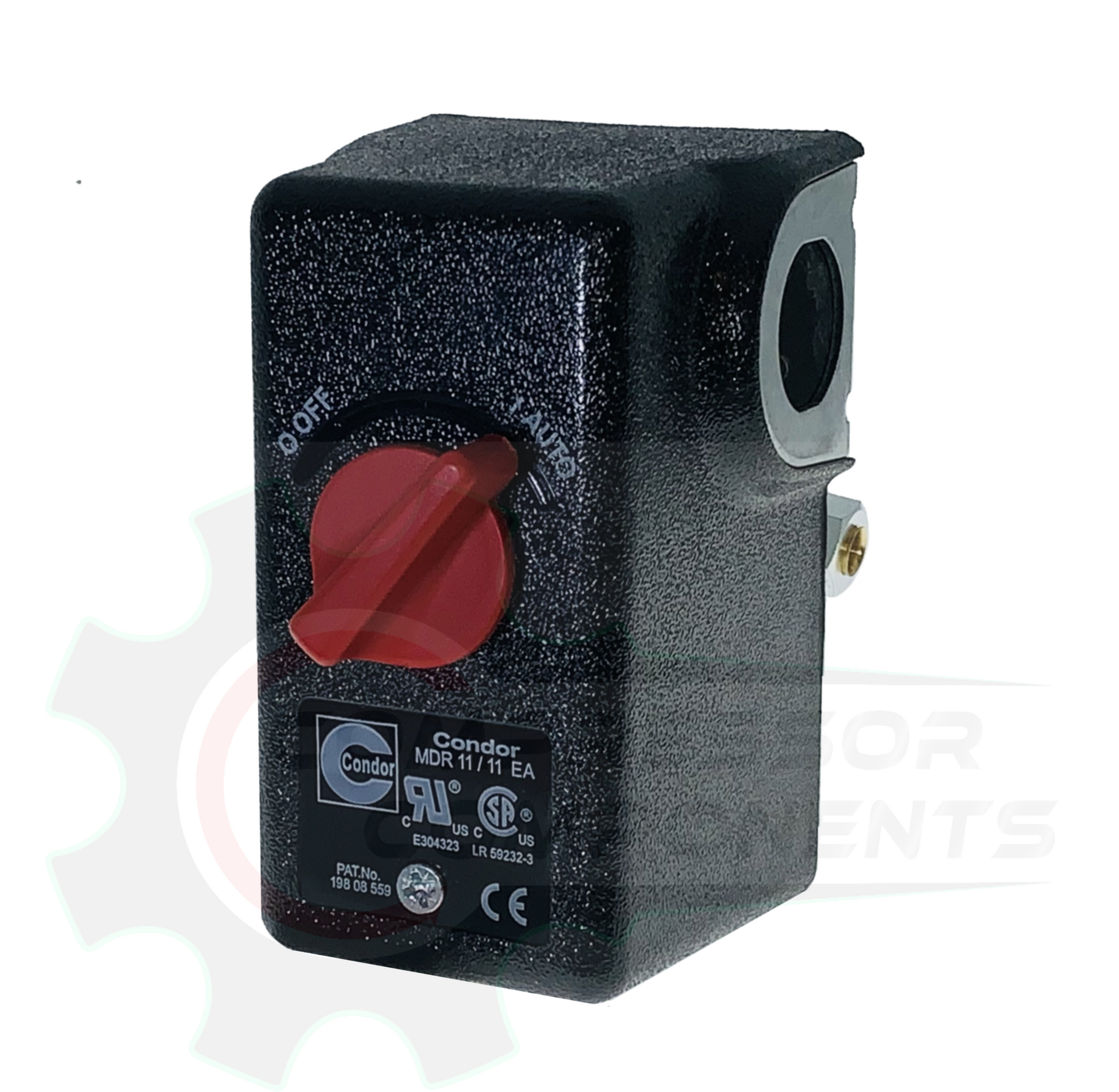

The Condor MDR11 11GC2E is a heavy-duty air-compressor pressure switch factory set for 100 PSI cut-in and 125 PSI cut-out. It uses a four-port 1/4" NPT manifold and includes an Auto/Off control and a 1/4" 90-degree compression unloader valve.
Specifications
| Manufacturer | Condor USA |
|---|---|
| Manufacturer Part Number | 11GC2E |
| Series | MDR11 |
| Factory Cut-In / Cut-Out | 100 / 125 PSI |
| Adjustable Pressure Range | 25–160 PSI |
| Adjustable Differential | 25–65 PSI |
| Pressure Connections | Four 1/4" NPT ports |
| Auto/Off Control | Yes |
| Unloader | 1/4" 90-degree compression |
| Contact Configuration | DPST |
| AC Contact Rating | 26 A at 240 VAC |
| Motor Switching Capacity | 2 HP at 120 VAC; 3 HP at 240 VAC |
| Enclosure | NEMA 1 |
| Degree of Protection | IP44 |
Application / Selection
Designed for compressed-air pressure control. Match the existing switch part number, pressure setting, manifold configuration, unloader connection, Auto/Off control and electrical requirements. The 11GC2E is the four-port 100/125 PSI configuration with Auto/Off control and a compression unloader.
