Condor MDR11 11LC2E 4-Port Pressure Switch - 120/150 PSI, Auto/Off & Unloader

Condor MDR11 11LC2E 4-Port Pressure Switch - 120/150 PSI, Auto/Off & Unloader

Regular price $64.95 USD
Regular price Sale price $64.95 USD
Sale Sold out
Orders $25 or more ship free to the lower 48. Shipping details.
Condition : New

View full details

Product Description

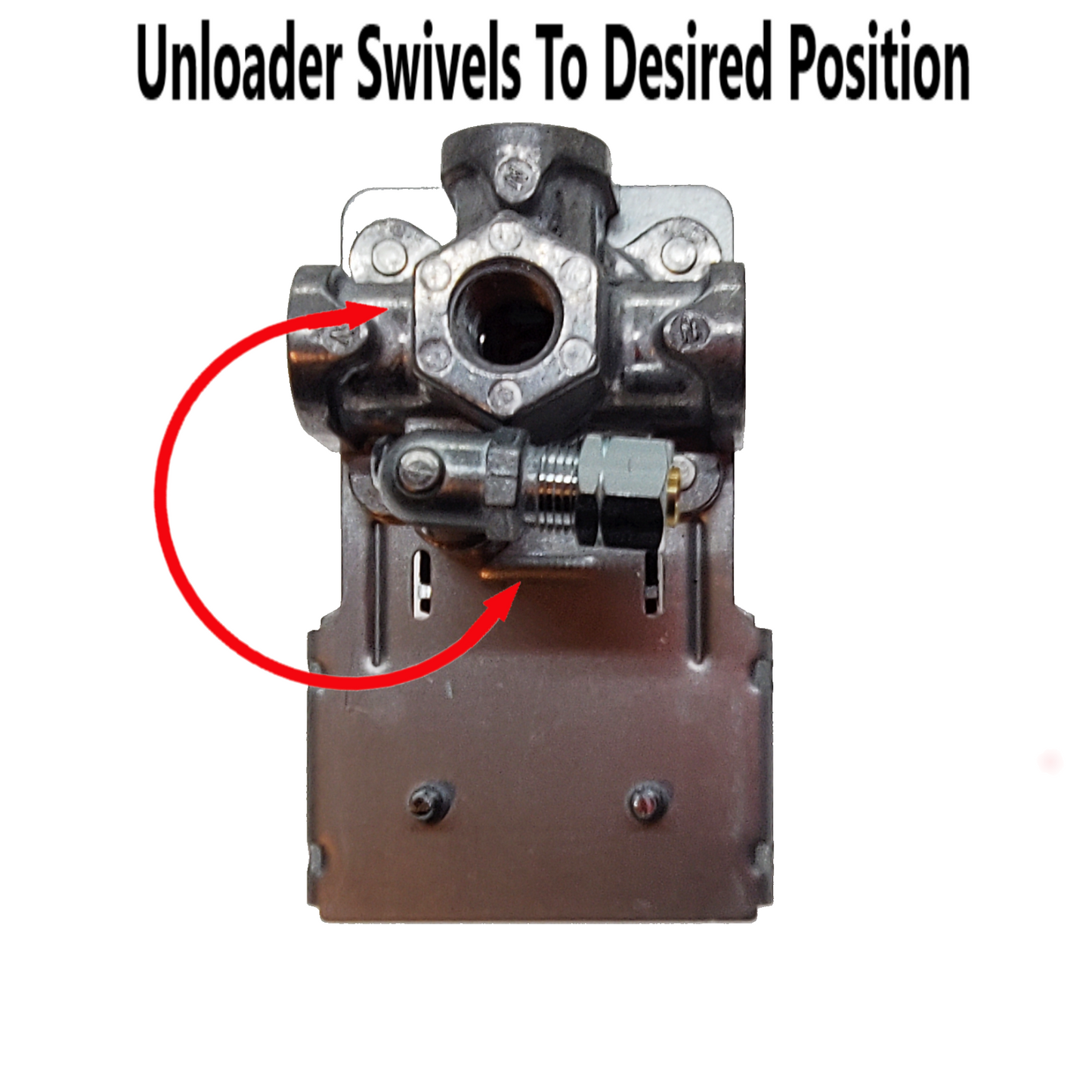

The Condor MDR11 11LC2E is a heavy-duty air-compressor pressure switch factory set for 120 PSI cut-in and 150 PSI cut-out. It uses a four-port 1/4" NPT manifold and includes an Auto/Off control and a 1/4" 90-degree compression unloader.

Specifications

Manufacturer Condor USA
Manufacturer Part Number 11LC2E
Series MDR11
Factory Cut-In / Cut-Out 120 / 150 PSI
Adjustable Differential 25–65 PSI
Pressure Connections Four 1/4" NPT ports
Auto/Off Control Yes
Unloader 1/4" 90-degree compression
Contact Configuration DPST
AC Contact Rating 26 A at 240 VAC
Motor Switching Capacity 2 HP at 120 VAC; 3 HP at 240 VAC
Enclosure NEMA 1
Degree of Protection IP44

Verified Replacement

✓ Campbell Hausfeld CW218800AV — direct replacement.

Application / Selection

Match the existing switch part number, pressure setting, manifold configuration, unloader connection, Auto/Off control and electrical requirements.
