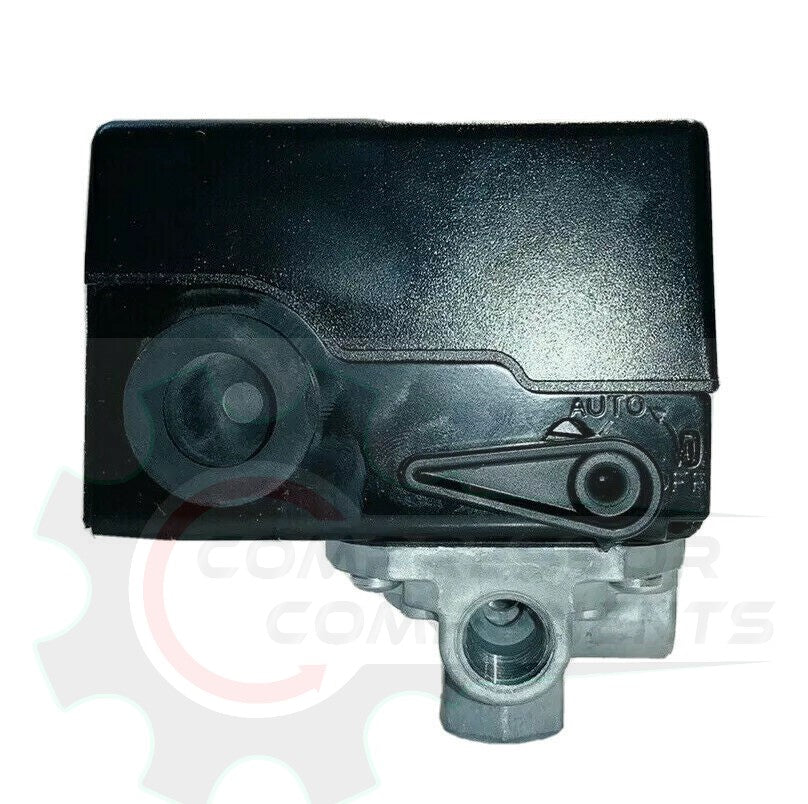

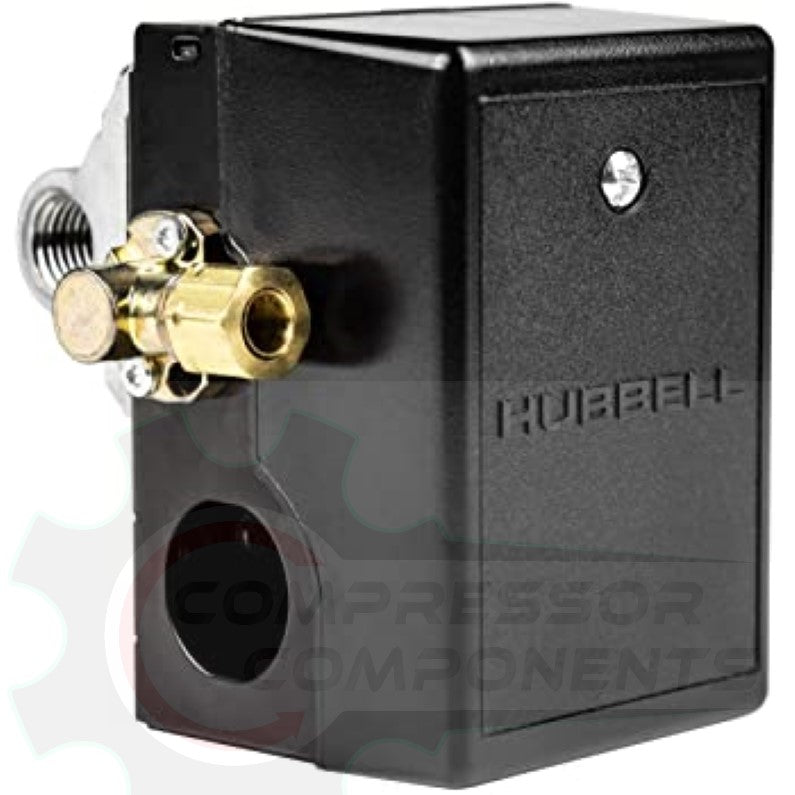

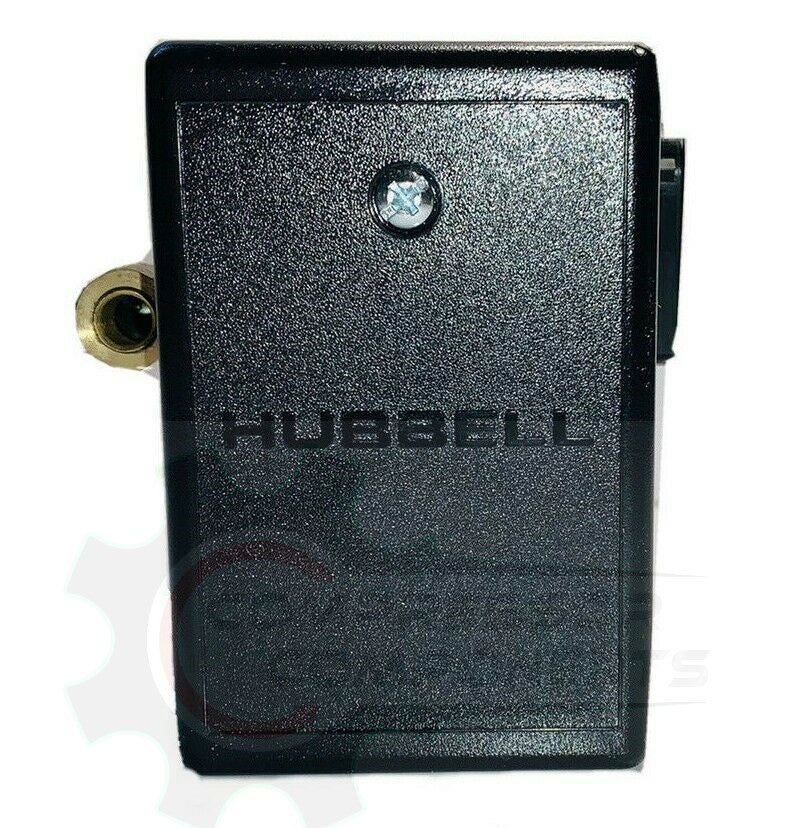

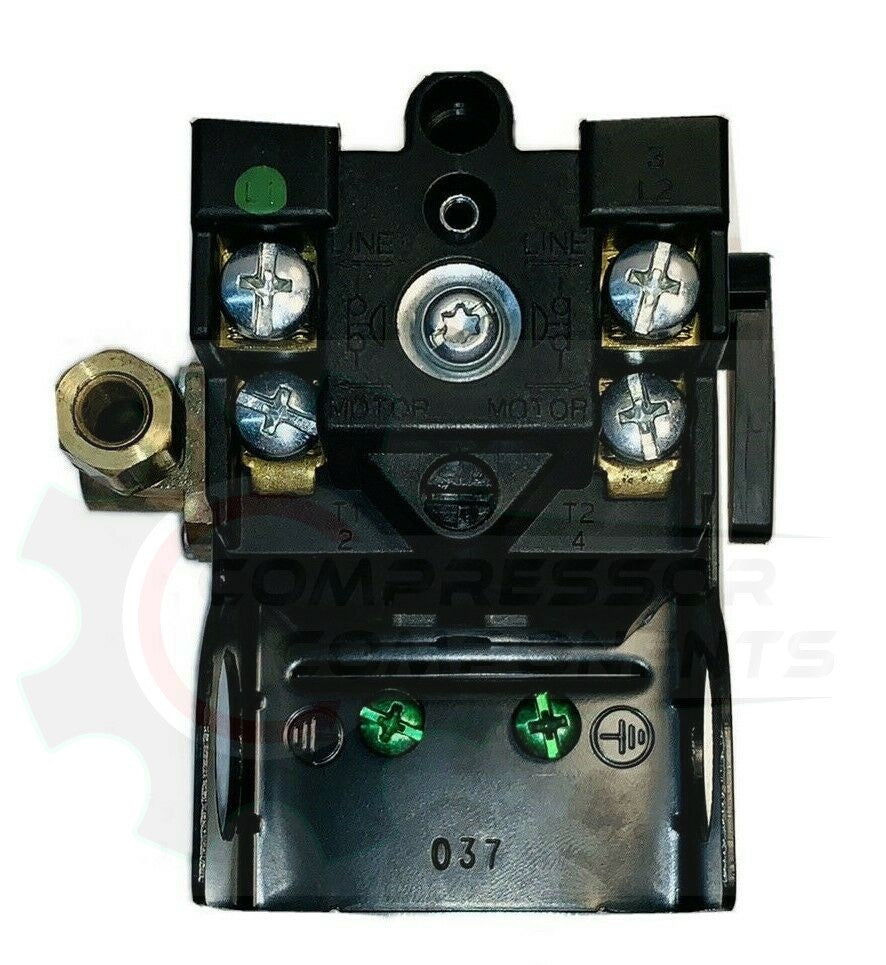

Hubbell 69JF9LY2C 4-Port Air Compressor Pressure Switch - 140/175 PSI

Hubbell 69JF9LY2C is a discontinued 4-port air-compressor pressure switch factory set for 140 PSI cut-in and 175 PSI cut-out. It includes a manual On/Off lever, unloader valve, and four 1/4" female NPT manifold ports.

Discontinued Model: Remaining new-old-stock inventory is limited. The current heavier-duty Hubbell replacement is 69JG9LY2C.

Specifications

• Factory setting: 140 PSI cut-in / 175 PSI cut-out
• Adjustable cut-in range: 100–175 PSI
• Differential range: 30–40 PSI

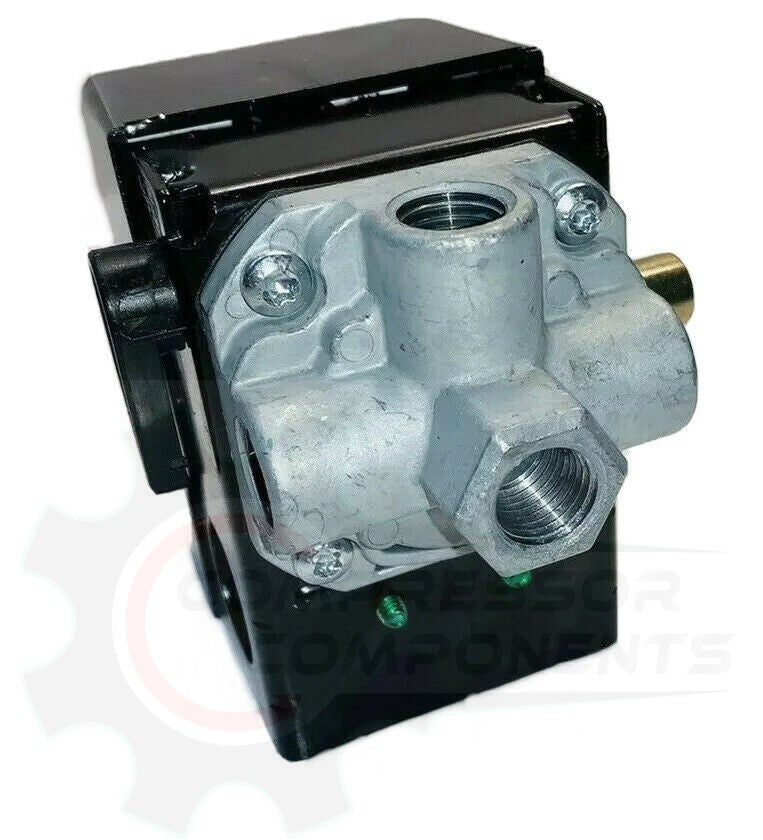

• Manifold: 4-port, 1/4" female NPT
• Manual control: On/Off lever
• Unloader valve: Yes
• 1 PH 120V: 1.5 HP
• 1 PH 240V: 2 HP
• 3 PH 240V: 3 HP

Verified Replacement Part Numbers

Ingersoll Rand: 56288772, 56288020, 56288020-01, 23474653, 56288806-00, 23474570-A, 56288772-02, 69JG109984-R, 69JG109984R, 23474588, 23474653-R

Champion: P14203A

Ingersoll Rand Applications

2475, 2545, 7100E15, 2475N7.5, 2340, 2340L5

Current Replacement

✓ Verified Replacement For: Hubbell 69JF9LY2C
Use current Hubbell model 69JG9LY2C.

Connection specifications: Four 1/4" female NPT manifold ports; unloader connection: 1/4" compression.
