Product Description

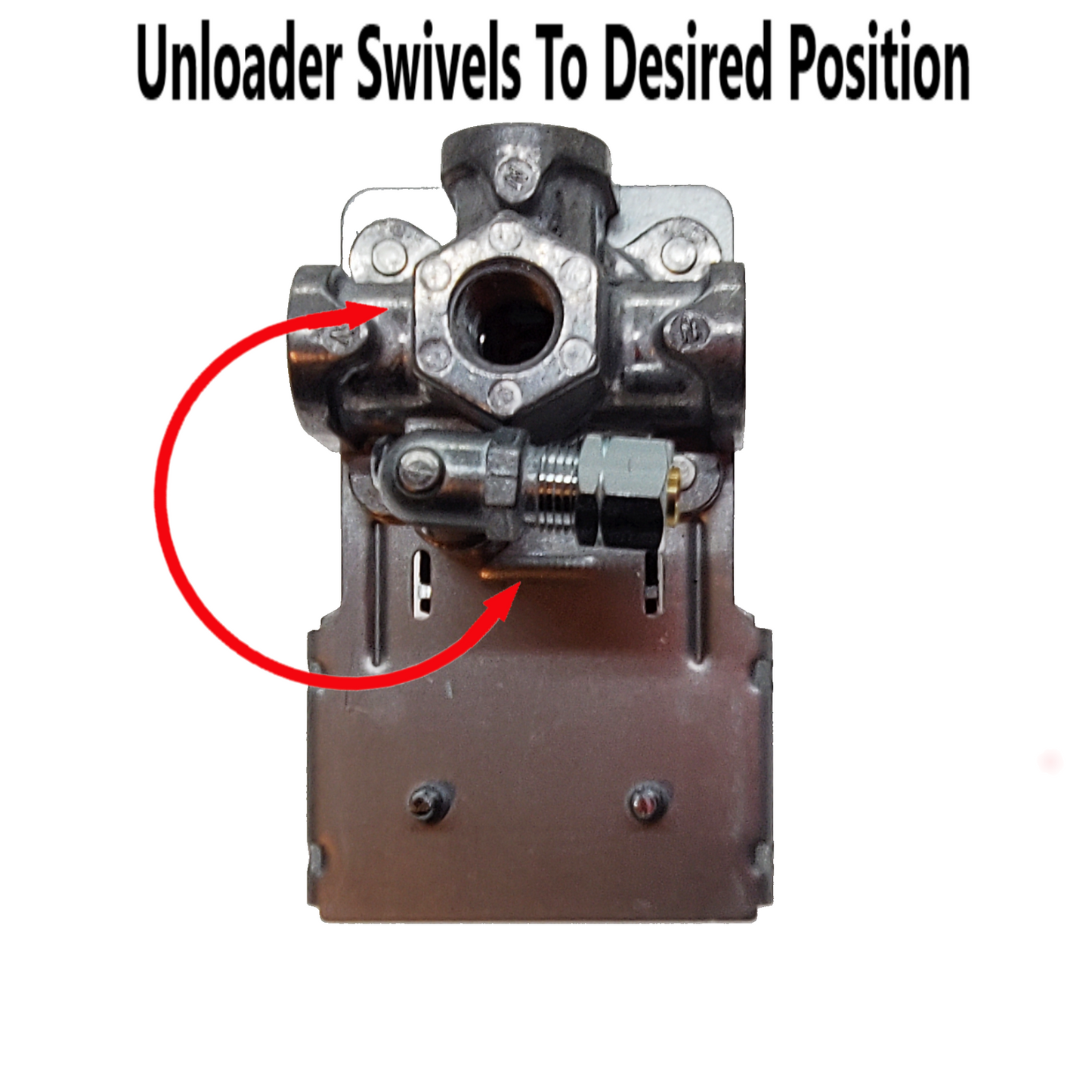

The Condor MDR11 11KC2E is a heavy-duty air-compressor pressure switch factory set for 140 PSI cut-in and 175 PSI cut-out. It uses a four-port 1/4" NPT manifold and includes an Auto/Off control and a 1/4" 90-degree compression unloader.
Specifications
| Manufacturer | Condor USA |
|---|---|
| Manufacturer Part Number | 11KC2E |
| Series | MDR11 |
| Factory Cut-In / Cut-Out | 140 / 175 PSI |
| Adjustable Differential | 30–65 PSI |
| Pressure Connections | Four 1/4" NPT ports |
| Auto/Off Control | Yes |
| Unloader | 1/4" 90-degree compression |
| Contact Configuration | DPST |
| AC Contact Rating | 26 A at 240 VAC |
| Motor Switching Capacity | 2 HP at 120 VAC; 3 HP at 240 VAC |
| Enclosure | NEMA 1 |
| Degree of Protection | IP44 |
Verified Replacement
✓ Campbell Hausfeld CW218000AV — direct replacement.
Application / Selection
Match the existing switch part number, pressure setting, manifold configuration, unloader connection, Auto/Off control and electrical requirements.
