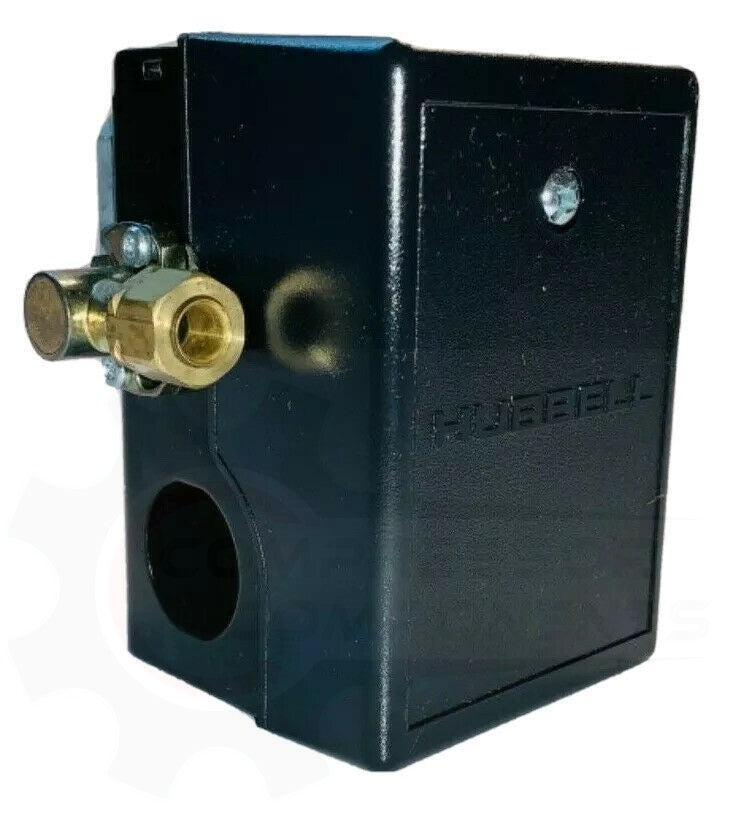

Hubbell 69JG7LY 1-Port Air Compressor Pressure Switch - 95/125 PSI

Hubbell 69JG7LY is the heavier-duty current replacement for the Hubbell 69JF7LY air-compressor pressure switch. It retains the same 95 PSI cut-in / 125 PSI cut-out setting, single-port connection, Auto/Off lever and unloader configuration while providing the higher-capacity 69JG electrical platform.

Replacement Part Numbers / Applications

This switch replaces the 69JF7LY used in the following established OEM pressure-switch applications:

Ingersoll Rand:

• 56289671
• 56289671-01
• 23474661-C
• 23474661-R
• 54372834
• 24374661

Rolair:

• PS3536

Compressor Models

• Ingersoll Rand SS3
• Ingersoll Rand SS3L3
• Ingersoll Rand SS4L5
• Ingersoll Rand SS5
• Ingersoll Rand SS5L5
• Ingersoll Rand SS5L5/N5

Specifications

• Part Number: 69JG7LY
• Series: Hubbell 69JG
• Factory Setting: 95 PSI cut-in / 125 PSI cut-out
• Adjustable Differential: 25–33 PSI
• Minimum Cut-In: 50 PSI
• Maximum Cut-Out: 145 PSI

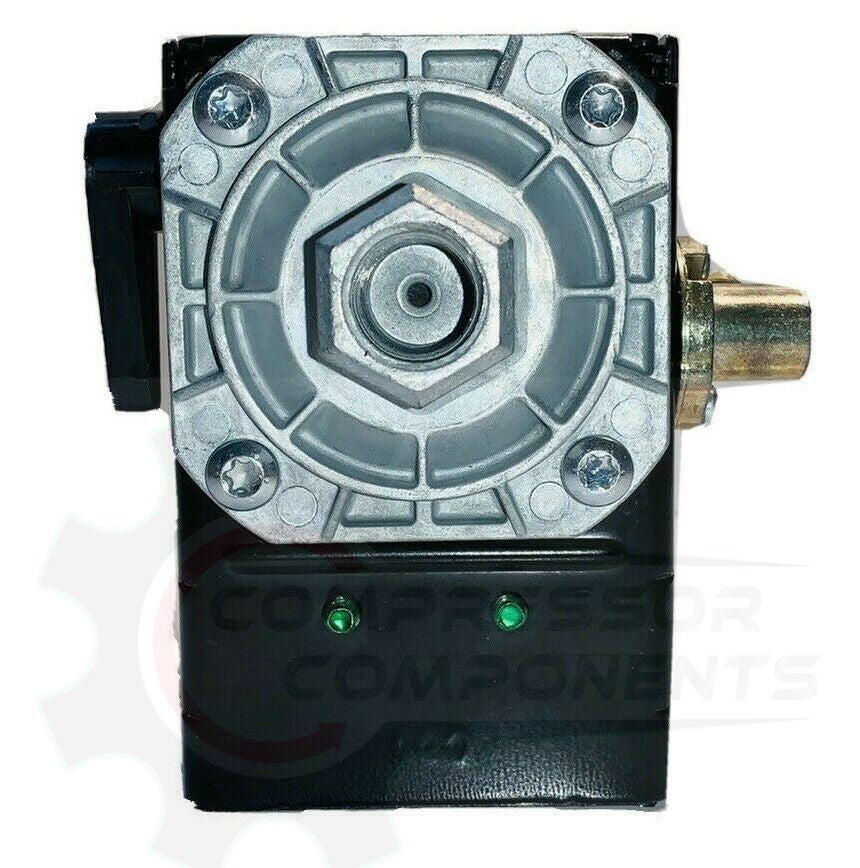

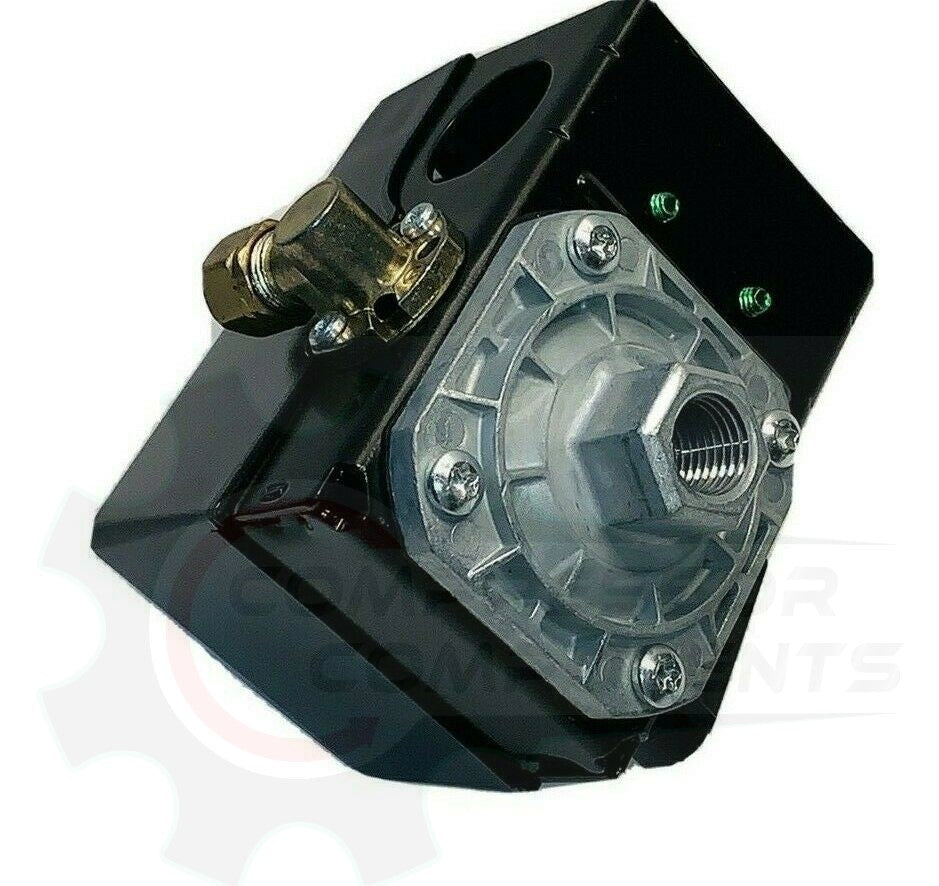

• Pressure Connection: 1/4" female NPT, single port

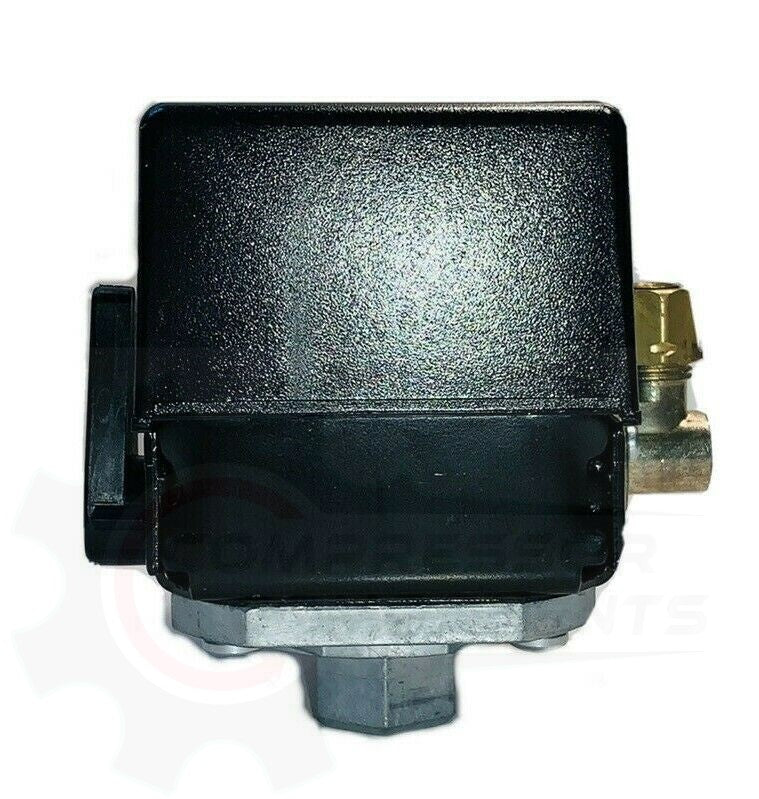

• Control: Auto/Off lever
• Unloader: Included, rotating configuration

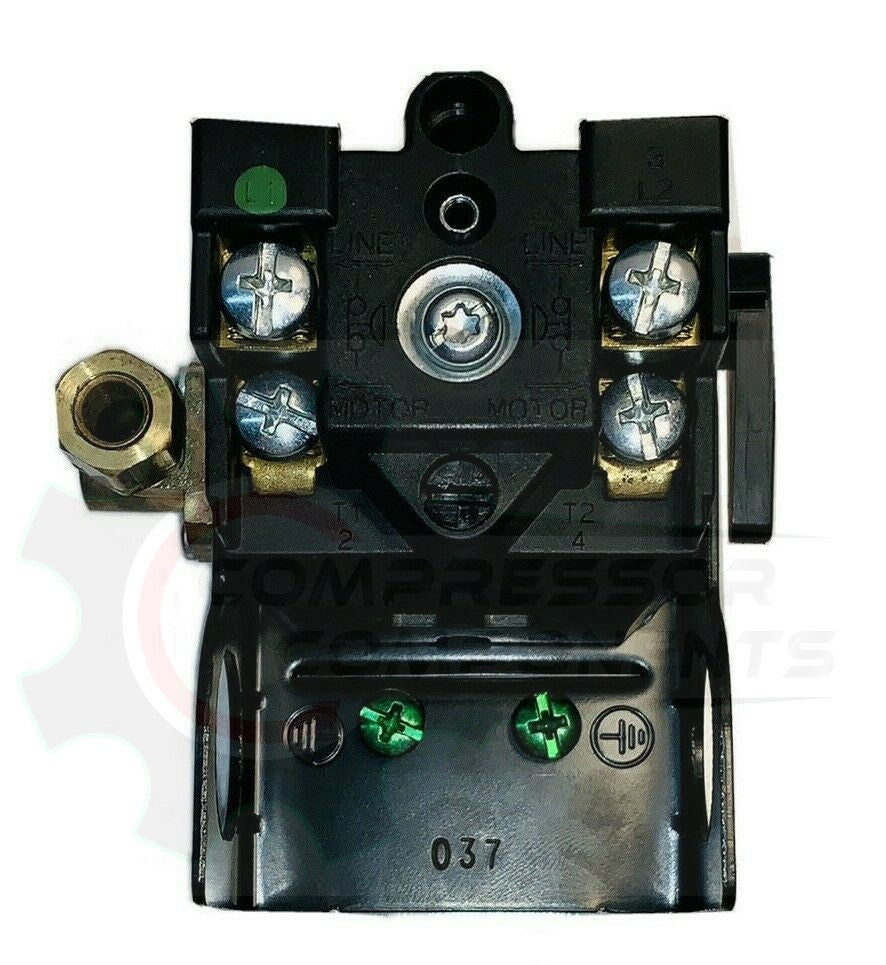

• Electrical Rating: 22 Amp JG-series configuration

Verified Replacement For

✓ Hubbell 69JF7LY

Application / Selection

For Ingersoll Rand SS-series and Rolair PS3536 applications, verify the existing 95/125 PSI pressure setting, single 1/4" pressure connection, unloader arrangement and motor electrical requirements before installation.
