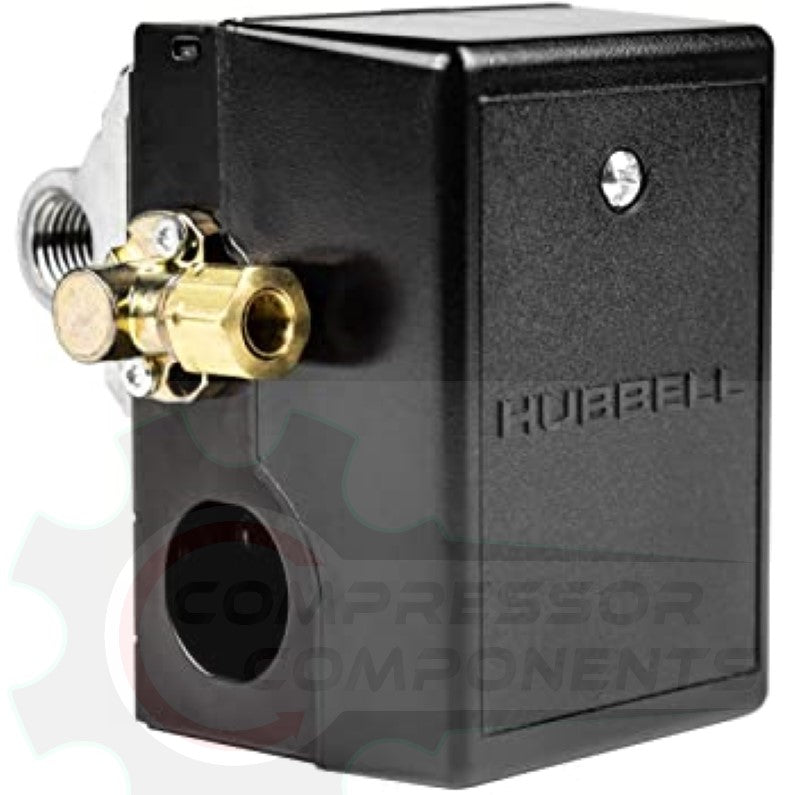

Hubbell 69JG7LY2C 4-Port Air Compressor Pressure Switch - 95/125 PSI

Hubbell 69JG7LY2C is the heavier-duty current replacement for the Hubbell 69JF7LY2C air-compressor pressure switch. It retains the same 95 PSI cut-in / 125 PSI cut-out setting, four-port manifold, Auto/Off lever and rotating unloader configuration while providing the higher-capacity 69JG electrical platform.

Verified Replacement For

✓ Hubbell 69JF7LY2C

OEM / Application Cross References

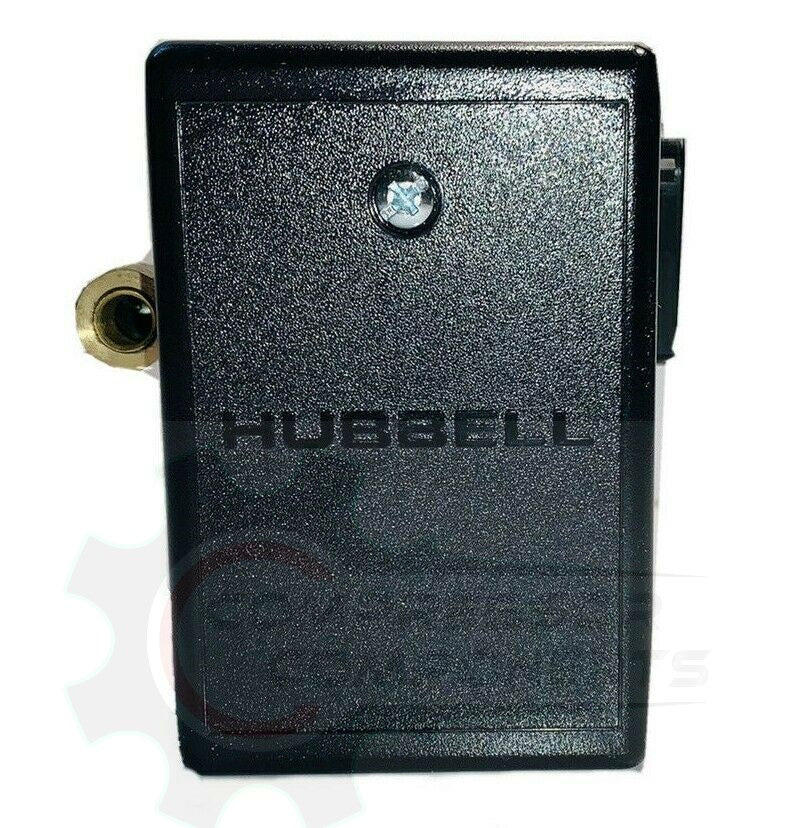

• Rolair PS3535 — documented 4-port Furnas/Hubbell 69JF7LY2C application.

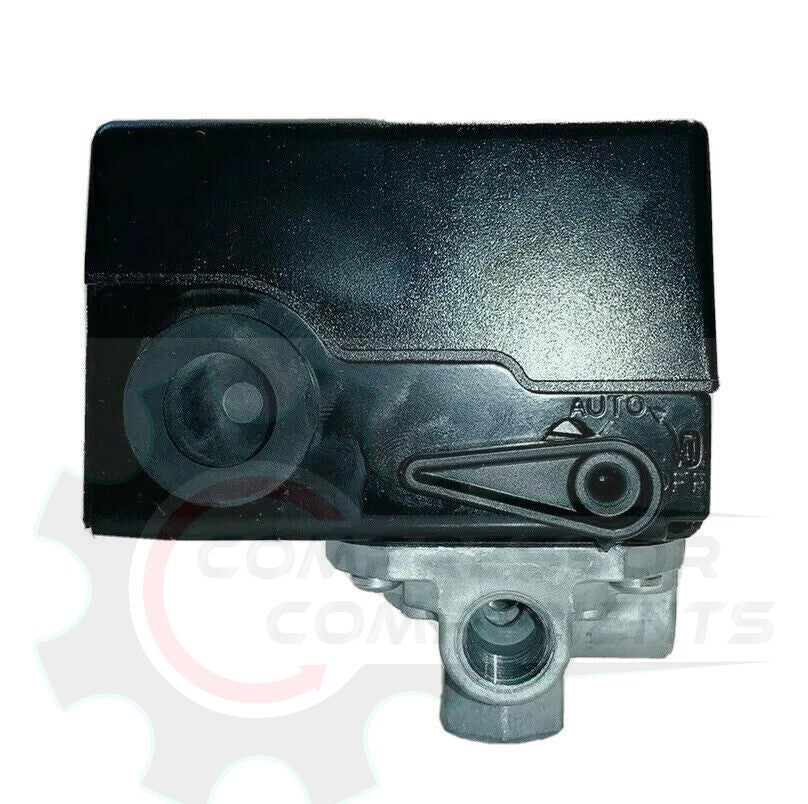

• Sanborn 034-0091 — documented 95/125 PSI 4-port replacement application.

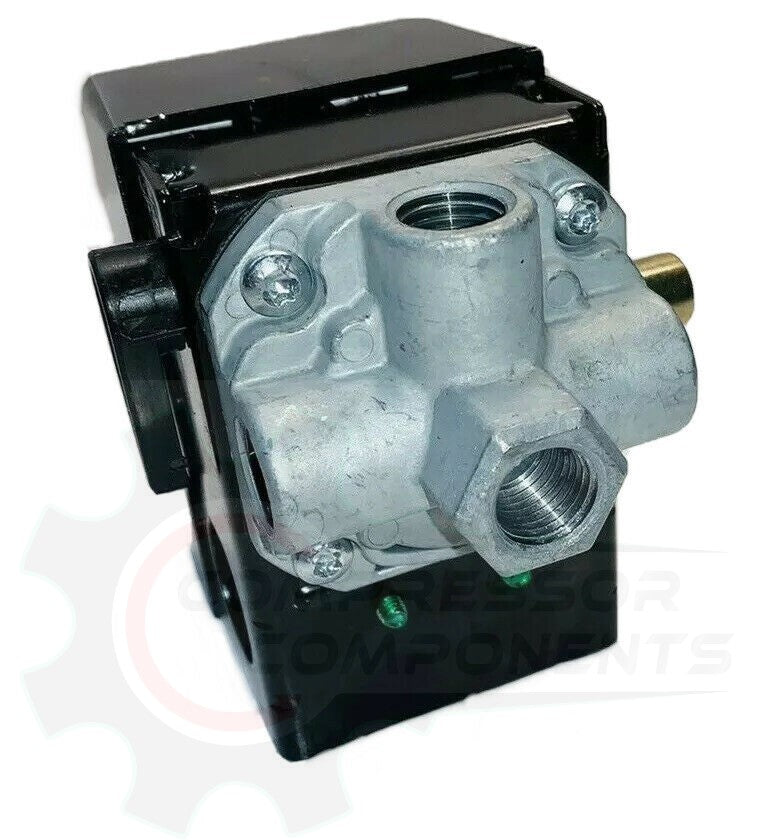

• Campbell Hausfeld CW207576AV — documented 95/125 PSI 4-port replacement application.
• Campbell Hausfeld / Furnas 69JG109569R — documented equivalent application reference.

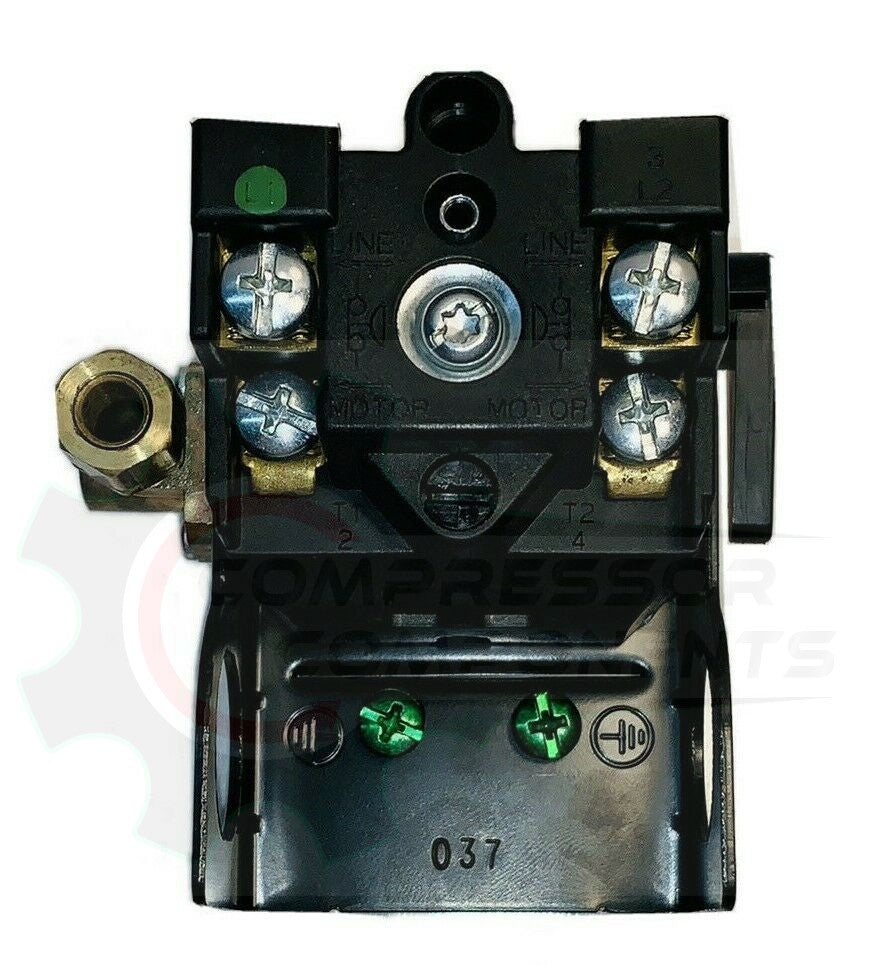

• DeWalt 5130028-01 — documented application reference for this 4-port 95/125 PSI switch configuration.

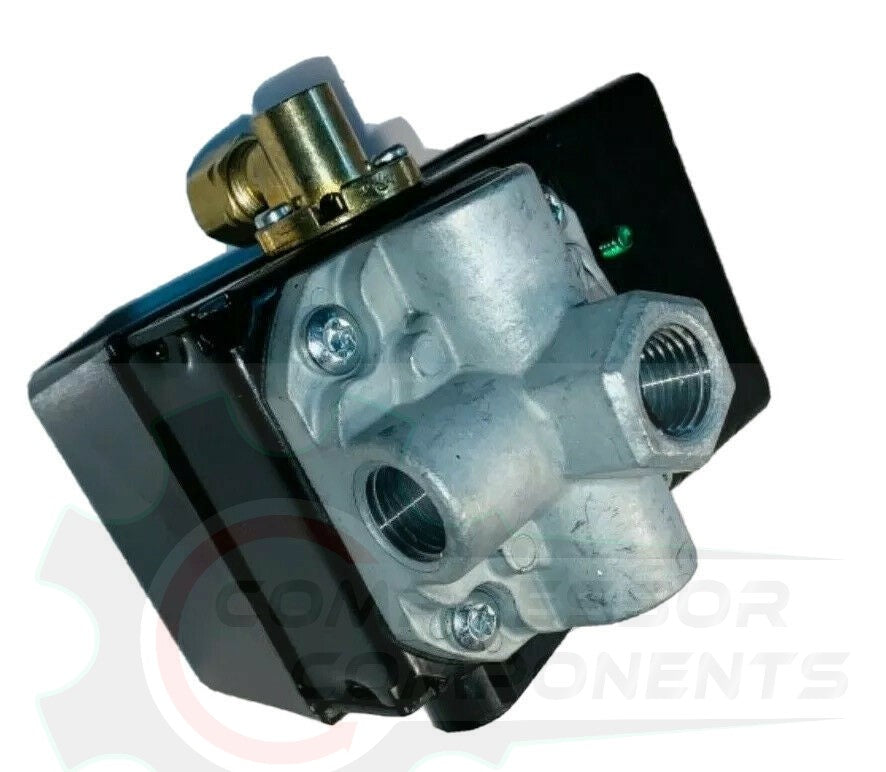

• Craftsman 919.165300 — documented application using Hubbell 69JF7LY2C.
• Craftsman AC-0385-1 / AC03851 — documented replacement application for model 919.165230.

Specifications

• Part Number: 69JG7LY2C
• Series: Hubbell 69JG
• Factory Setting: 95 PSI cut-in / 125 PSI cut-out
• Minimum Cut-In: 50 PSI
• Maximum Cut-Out: 145 PSI
• Pressure Connection: Four 1/4" female NPT manifold ports
• Control: Auto/Off lever
• Unloader: Included, rotating configuration
• Electrical Rating: 22 Amp JG-series configuration
• Motor Rating: 2 HP at 120V 1-phase
• Motor Rating: 3 HP at 240V 1-phase
• Motor Rating: 5 HP at 240V 3-phase
• Motor Rating: 1 HP at 480/600V 3-phase
• Enclosure: NEMA 1

Application / Selection

Use 69JG7LY2C where the application requires a 95/125 PSI four-port compressor pressure switch with Auto/Off lever and rotating unloader. For Rolair, Sanborn, Campbell Hausfeld, DeWalt and Craftsman applications, verify the pressure setting, four 1/4" female NPT manifold ports, unloader arrangement and motor electrical requirements before installation.
