Product Description

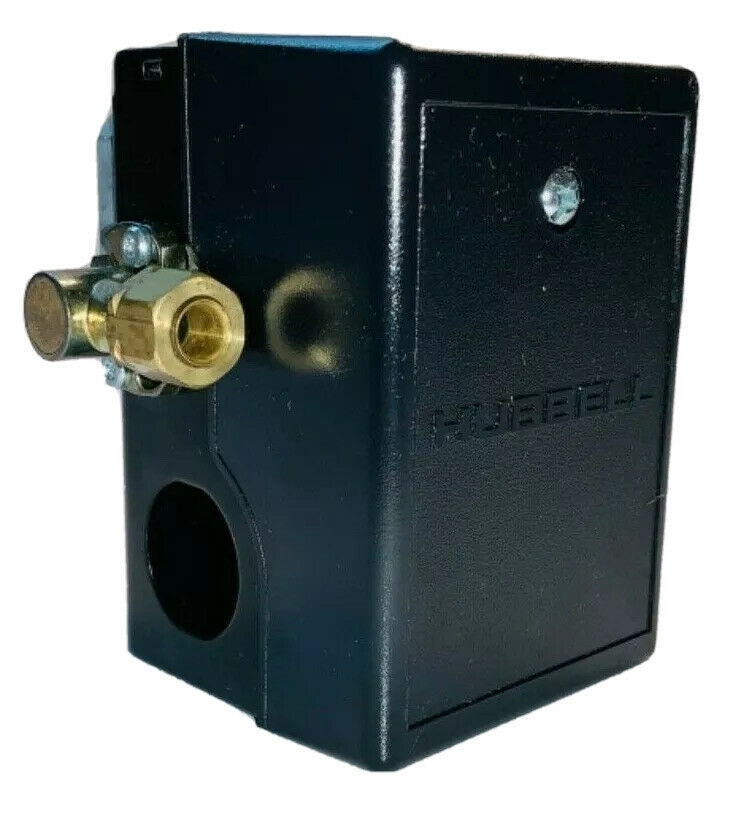

Hubbell 69JG7Y is the heavier-duty replacement for the 69JF7Y air-compressor pressure switch. It retains the same 95 PSI cut-in / 125 PSI cut-out setting, single-port connection and rotating unloader configuration while providing the higher-capacity 69JG electrical platform.
Verified Replacement For
✓ Hubbell 69JF7Y
Specifications
| Part Number | 69JG7Y |
|---|---|
| Series | Hubbell 69JG |
| Factory Setting | 95 / 125 PSI |
| Adjustable Differential | 25–33 PSI |
| Minimum Cut-In | 50 PSI |
| Maximum Cut-Out | 145 PSI |
| Pressure Connection | 1/4" female NPT, single port |

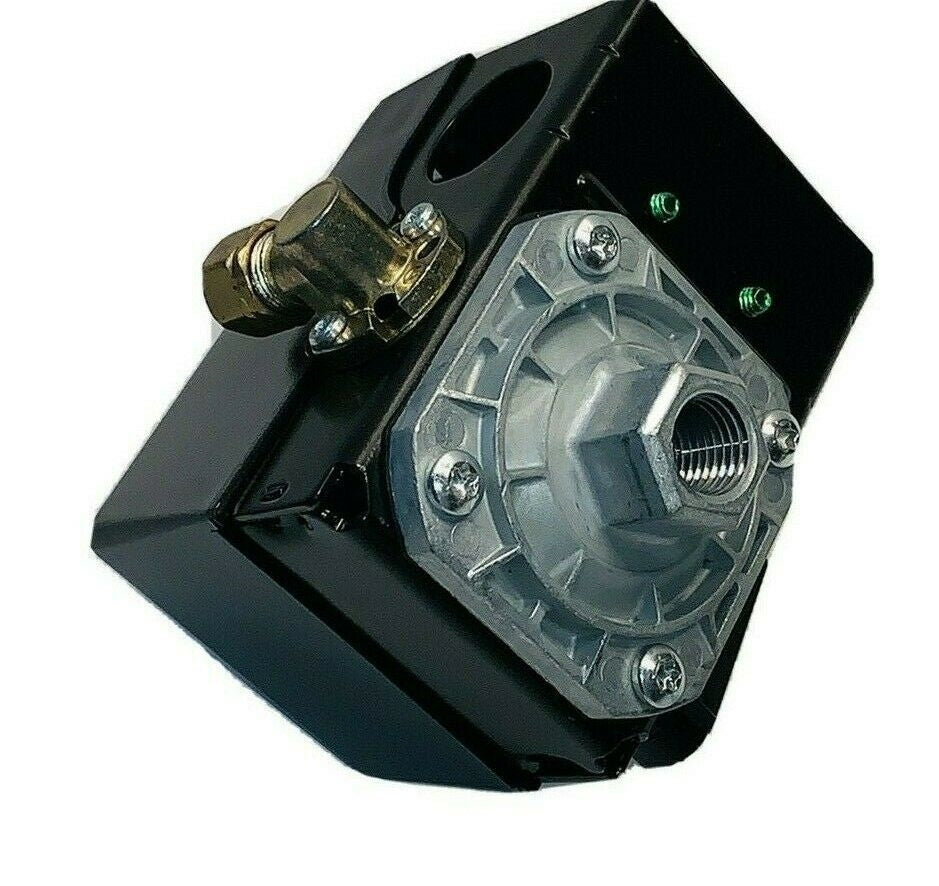

| Unloader | Included, 180° rotating configuration |
| Electrical Rating | 22 Amp JG-series configuration |
Application / Selection
Use 69JG7Y where the application requires a 95/125 PSI single-port compressor pressure switch with a rotating unloader. When replacing 69JF7Y or another pressure control, verify the pressure setting, 1/4" female NPT connection, unloader arrangement and electrical motor-load requirements.
Connection specifications: One 1/4" female NPT pressure port; unloader connection: 1/4" compression.
