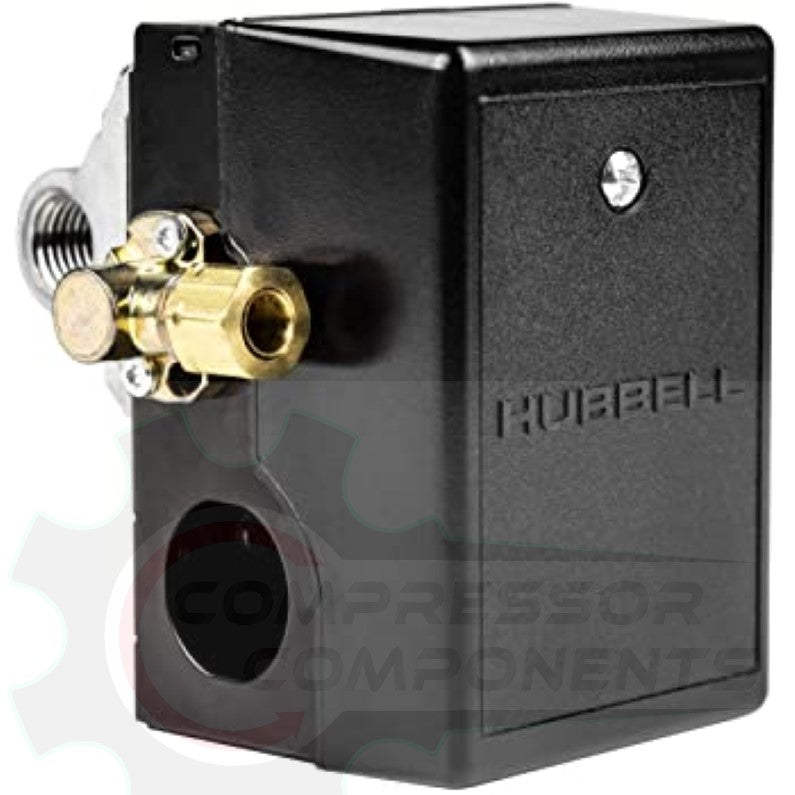

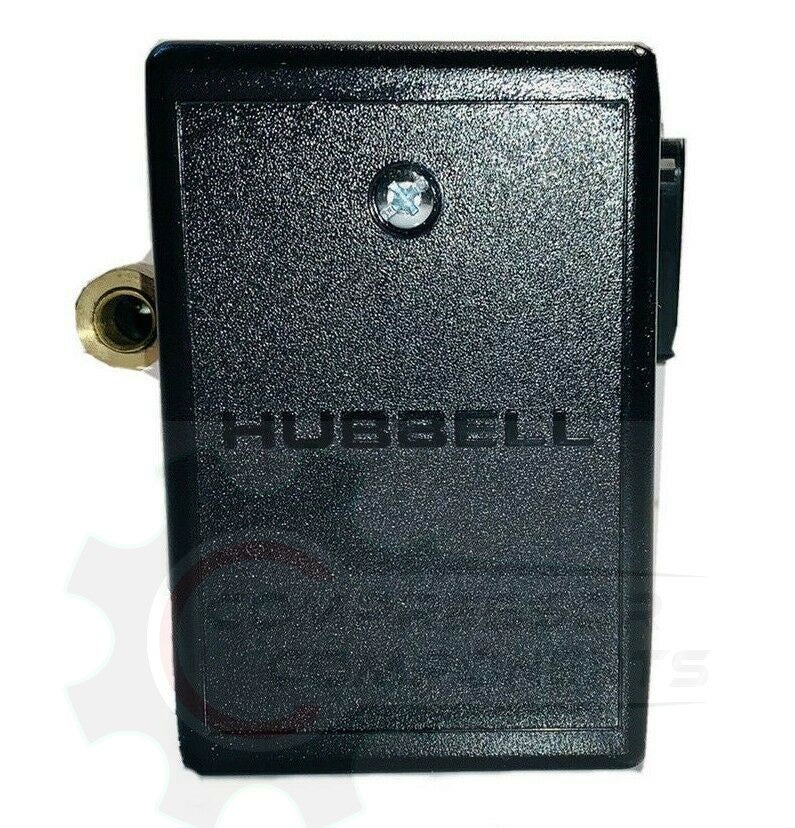

Hubbell 69JG8LY2C 4-Port Air Compressor Pressure Switch - 115/150 PSI

Hubbell 69JG8LY2C is the heavier-duty current replacement for the Hubbell 69JF8LY2C air-compressor pressure switch. It retains the same 115 PSI cut-in / 150 PSI cut-out setting, four-port manifold, Auto/Off lever and unloader configuration while providing the higher-capacity 69JG electrical platform.

Verified Replacement For

✓ Hubbell 69JF8LY2C

Verified Replacement Part Numbers

• Campbell Hausfeld CW207593AV
• Hubbell HC69JF8LY2C — Hubbell catalog alias for 69JF8LY2C.

Verified Compressor Applications

• Campbell Hausfeld DP561500
• Campbell Hausfeld DP4615
• Speedaire 4ME98
• Speedaire SDRDP5612
• Speedaire SDRDP5632

Specifications

• Part Number: 69JG8LY2C
• Series: Hubbell 69JG
• Factory Setting: 115 PSI cut-in / 150 PSI cut-out
• Adjustable Differential: 25–38 PSI
• Minimum Cut-In: 90 PSI
• Maximum Cut-Out: 165 PSI

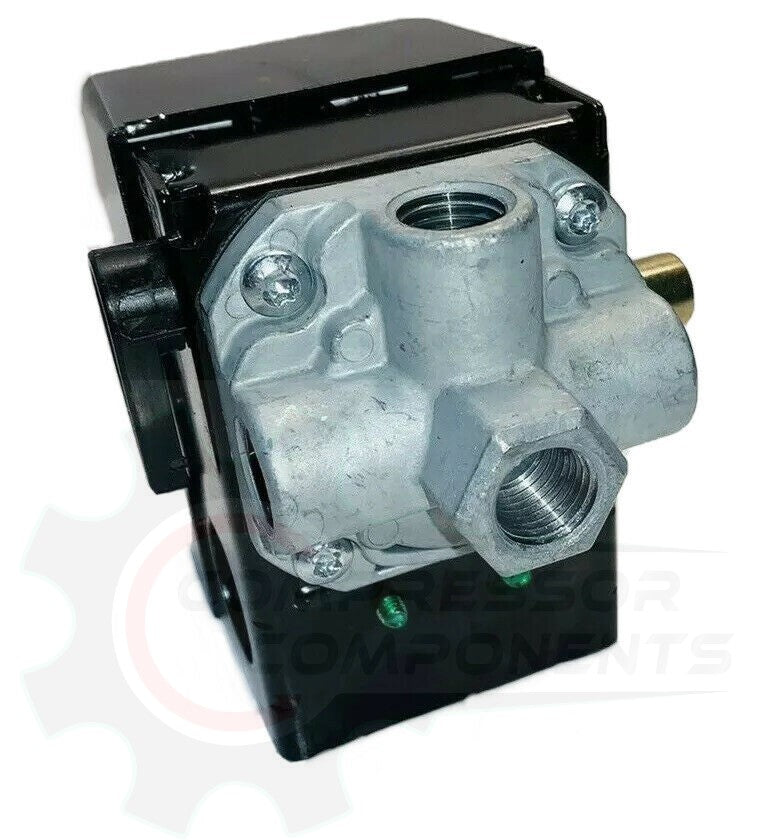

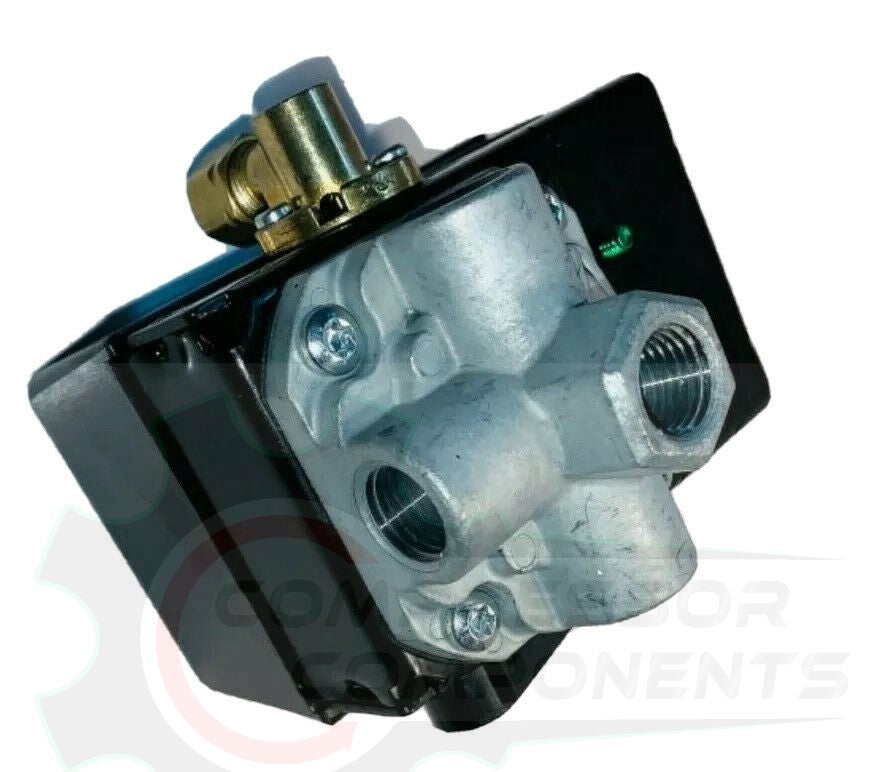

• Pressure Connection: Four 1/4" female NPT manifold ports

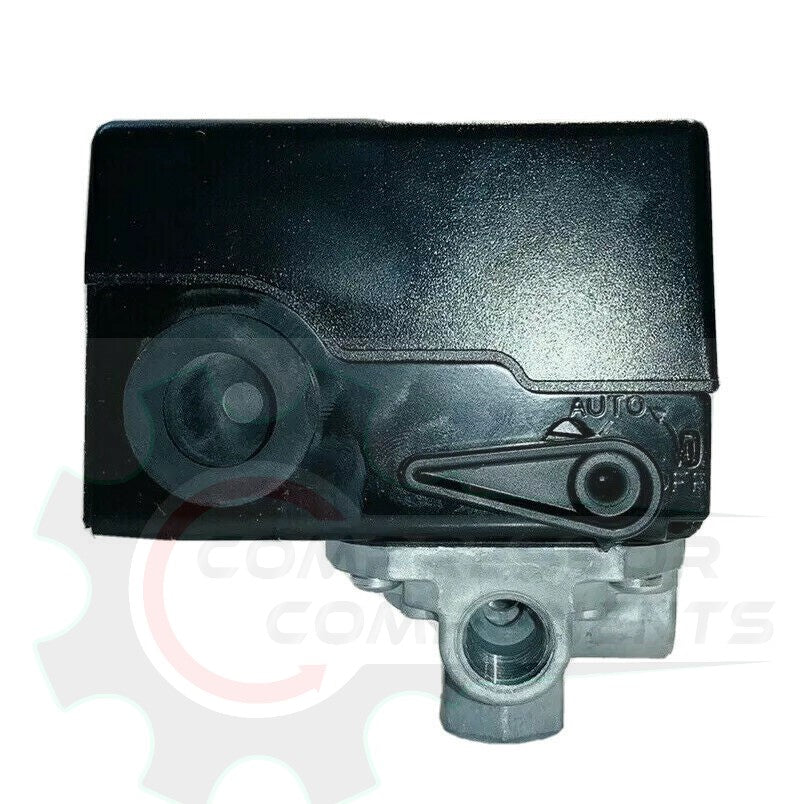

• Control: Auto/Off lever
• Unloader: Included, rotating configuration

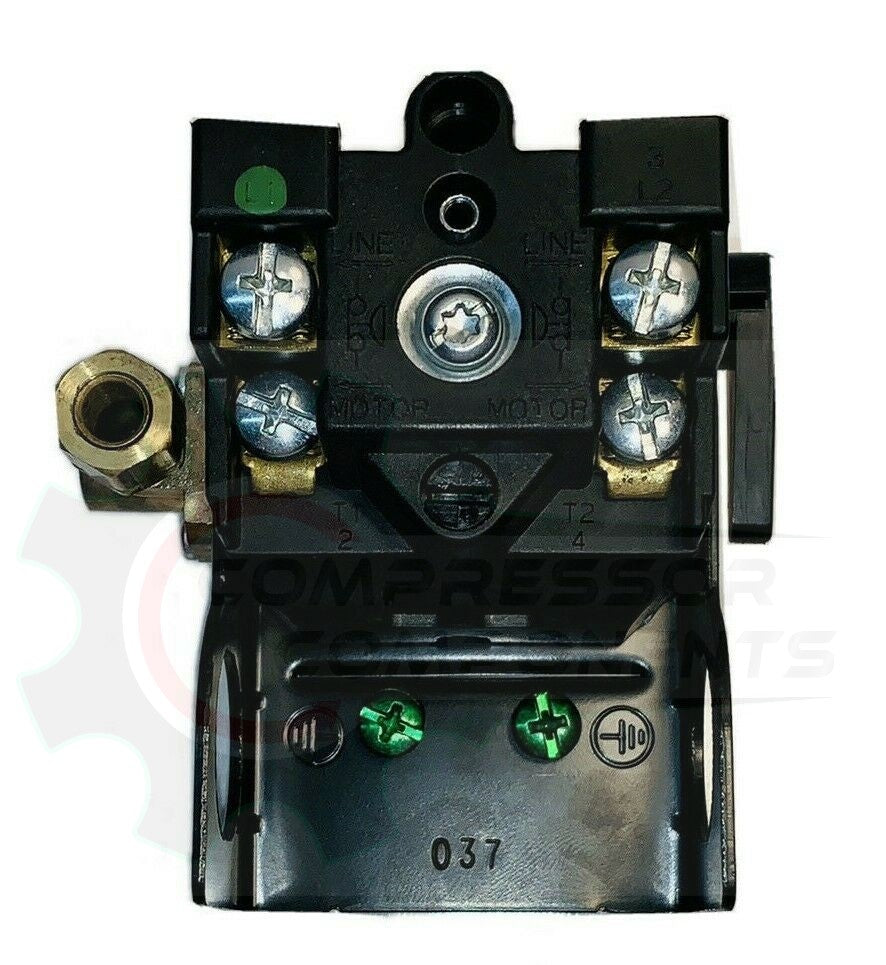

• Electrical Rating: 22 Amp JG-series configuration
• Motor Rating: 2 HP at 120V 1-phase
• Motor Rating: 3 HP at 240V 1-phase
• Motor Rating: 5 HP at 240V 3-phase
• Motor Rating: 1 HP at 480/600V 3-phase
• Enclosure: NEMA 1

Application / Selection

For Campbell Hausfeld CW207593AV and listed Speedaire applications, verify the 115/150 PSI setting, four 1/4" female NPT manifold ports, unloader arrangement and motor electrical requirements before installation.
