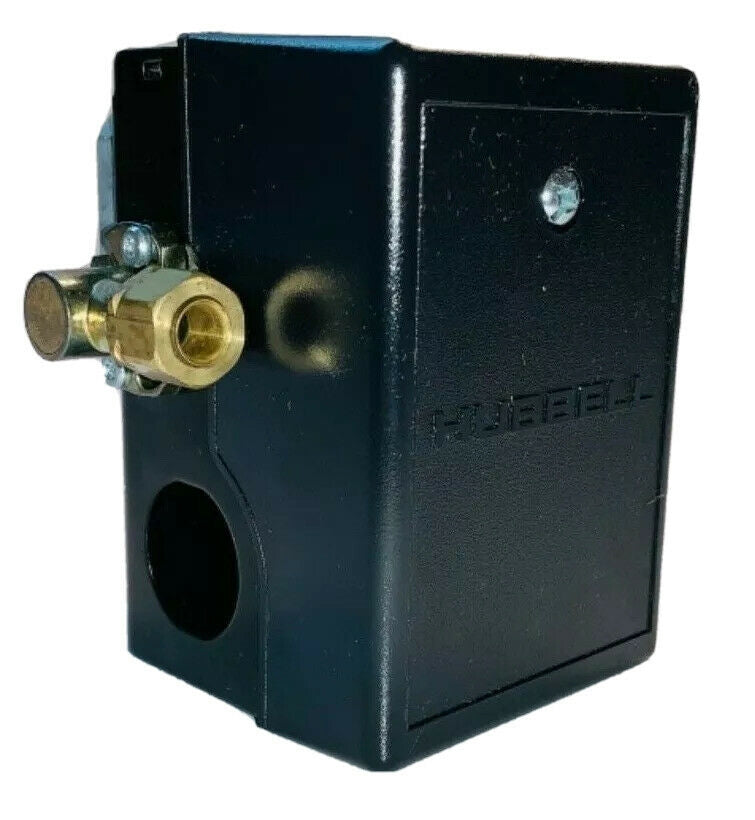

Hubbell 69JG9Y 1-Port Air Compressor Pressure Switch - 140/175 PSI

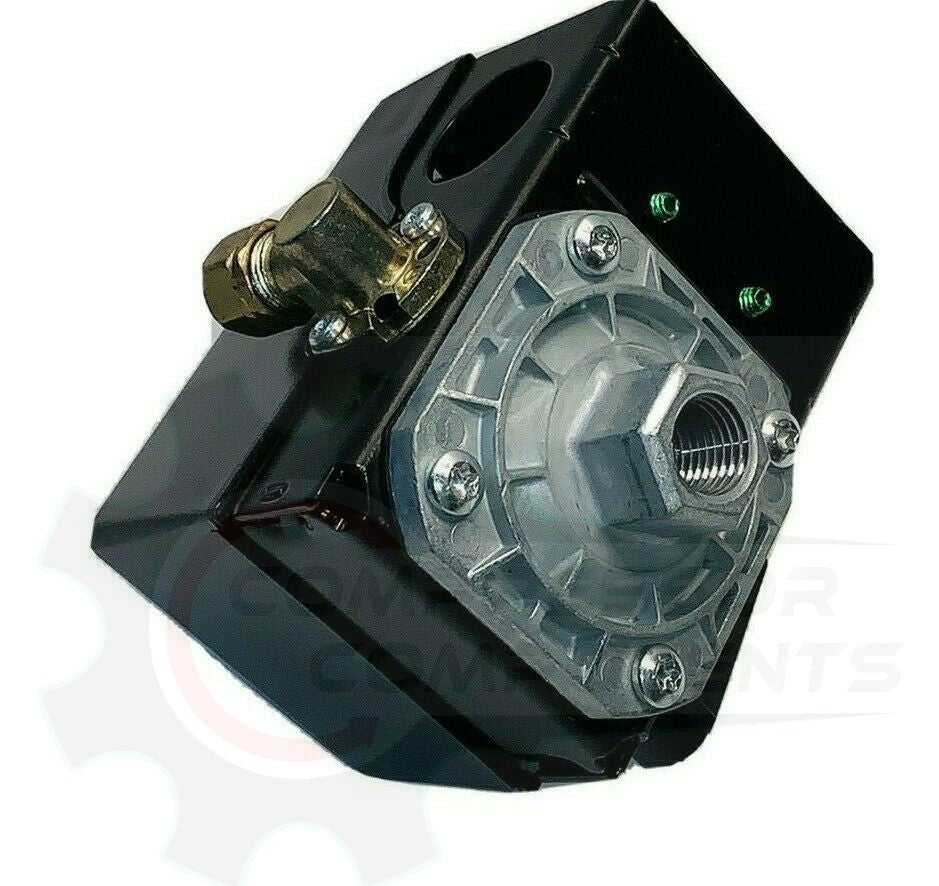

Hubbell 69JG9Y is the heavier-duty current replacement for the Hubbell 69JF9Y air-compressor pressure switch. It retains the same 140 PSI cut-in / 175 PSI cut-out setting, single-port connection and unloader configuration while providing the higher-capacity 69JG electrical platform.

Verified Replacement For

✓ Hubbell 69JF9Y

Verified Cross References

• Hubbell HC69JG9Y — Hubbell catalog number for 69JG9Y.
• Hubbell HC69JF9Y — prior JF-series catalog reference replaced by 69JG9Y.
• SVI AS-2400-05 — documented replacement/reference for Furnas 69JF9Y.

Specifications

• Part Number: 69JG9Y
• Series: Hubbell 69JG
• Factory Setting: 140 PSI cut-in / 175 PSI cut-out
• Adjustable Differential: 30–40 PSI
• Minimum Cut-In: 100 PSI
• Maximum Cut-Out: 175 PSI
• Pressure Connection: 1/4" female NPT, single port
• Unloader: Included
• Auto/Off Lever: No
• Electrical Rating: 22 Amp JG-series configuration
• Motor Rating: 2 HP at 120V 1-phase
• Motor Rating: 3 HP at 240V 1-phase
• Motor Rating: 5 HP at 240V 3-phase
• Motor Rating: 1 HP at 480/600V 3-phase
• Enclosure: NEMA 1

Application / Selection

Use 69JG9Y where the application requires a 140/175 PSI single-port compressor pressure switch with an unloader and no Auto/Off lever. Verify pressure setting, 1/4" female NPT connection, unloader arrangement and motor electrical requirements before installation.
