Product Description

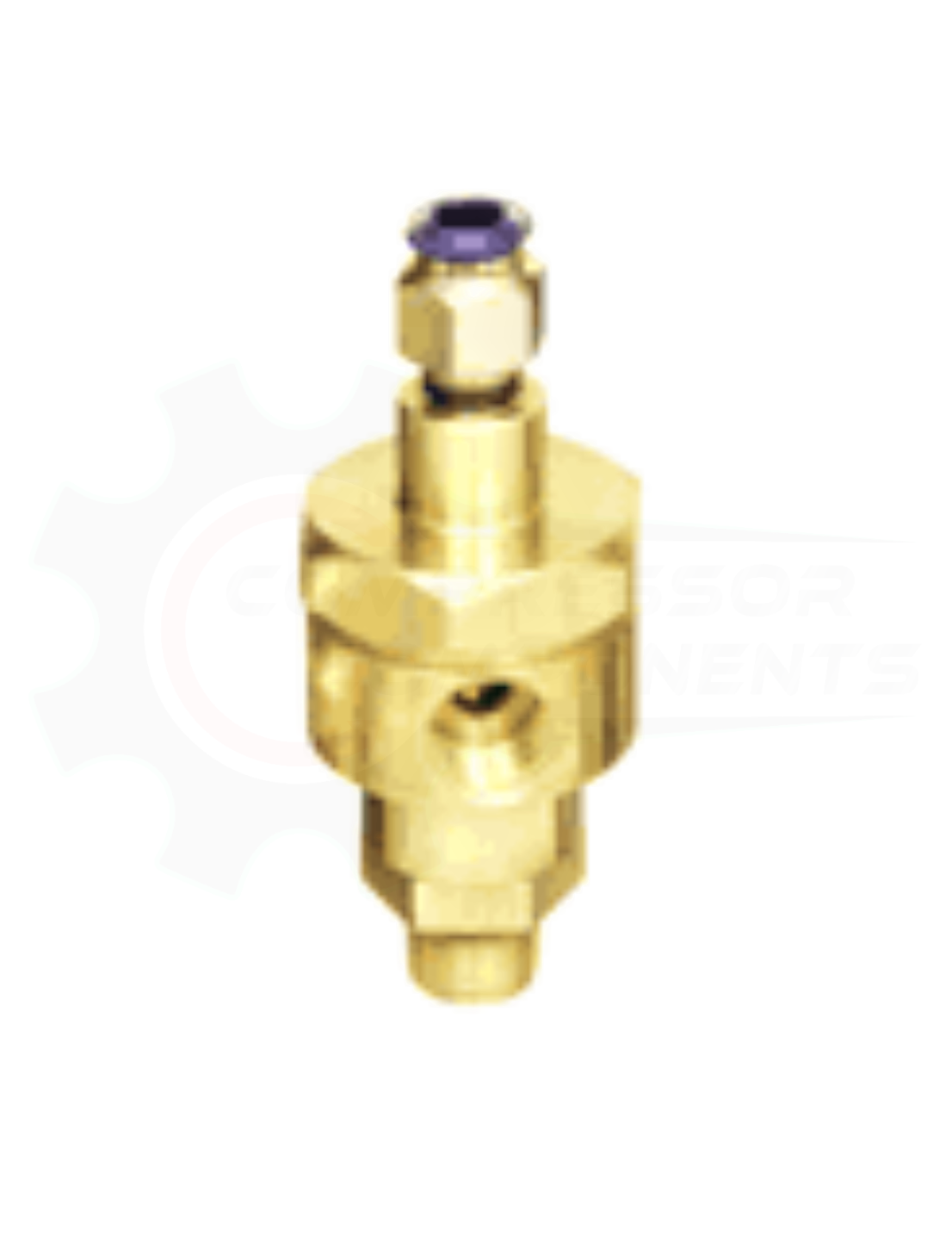

Conrader WV-1 Automatic Pilot-Operated Pneumatic Drain Valve automatically removes condensate from compressed-air receiver tanks without electricity or an electronic timer. The valve operates from a pneumatic pilot signal and is designed to open and close with the compressor's load/unload cycle.
Product Specifications
| Manufacturer | Conrader |
|---|---|
| Model | WV-1 |
| Conrader part number | 1087 |
| Style | Automatic, pilot operated |
| Inlet | 1/4" MNPT |
| Outlet | 1/4" FNPT |
| Signal port | 1/8" FNPT |
| Operating pressure range | 30–500 PSI |
| Operating temperature range | -15°F to 250°F |
| Body construction | Brass |
| Length | 2.68" |
| Hex | 1-1/4" |
| Weight | 0.48 lb |
Features
- Fully pneumatic operation — no electrical power required
- Automatic condensate discharge using the compressor's pneumatic control signal
- Viton seals with brass construction
- Compact design for receiver-tank drain applications
Selection note: Verify the compressor control arrangement, 1/4" MNPT inlet, 1/4" FNPT outlet, and 1/8" FNPT pilot signal connection before ordering.
