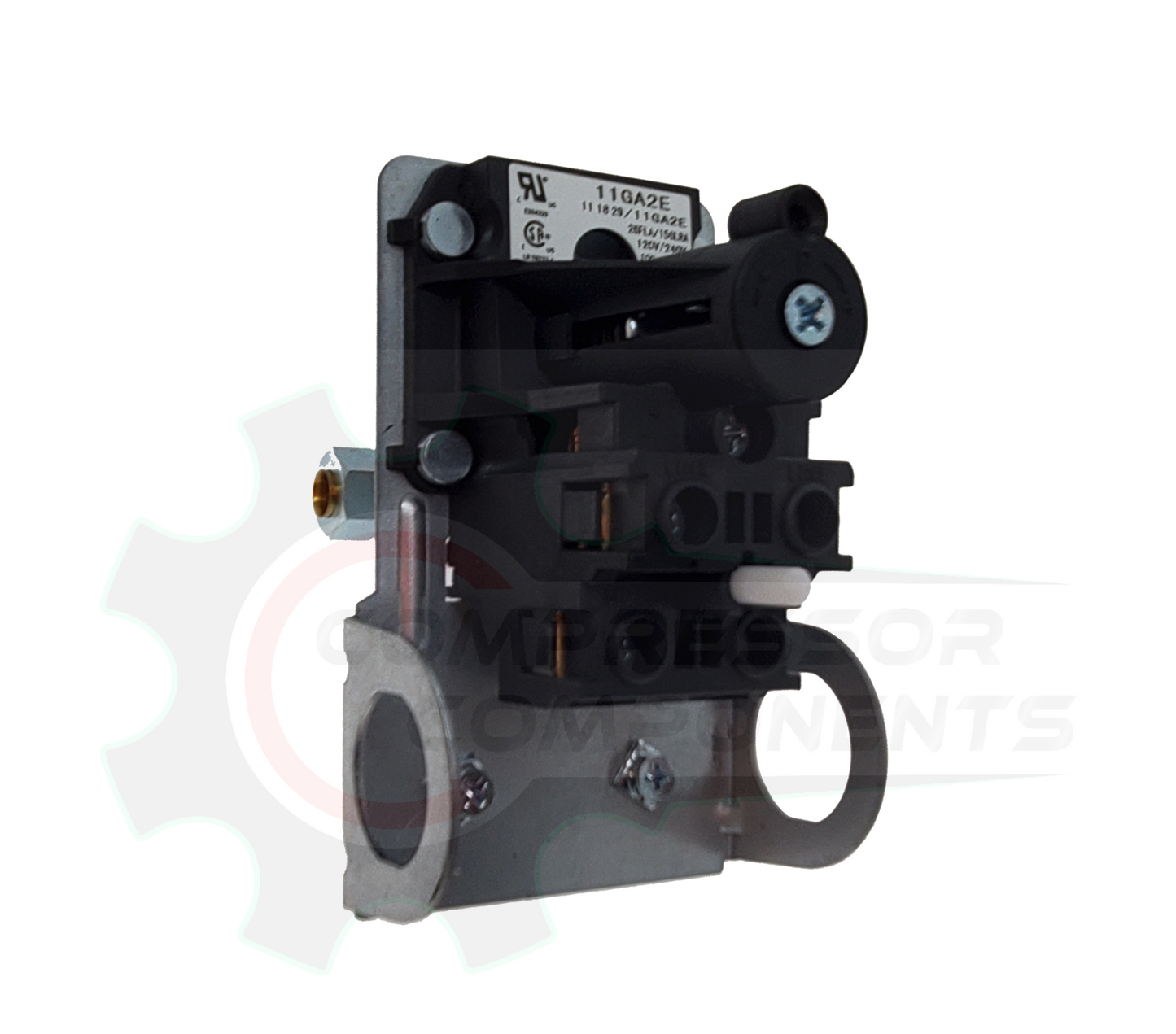

Condor MDR11 11GA2E Pressure Switch - 100/125 PSI, Auto/Off & Unloader

Condor MDR11 11GA2E Pressure Switch - 100/125 PSI, Auto/Off & Unloader

Regular price $59.95 USD
Regular price Sale price $59.95 USD
Sale Sold out
Orders $25 or more ship free to the lower 48. Shipping details.
Condition : New

View full details

Product Description

The Condor MDR11 11GA2E is a heavy-duty air-compressor pressure switch factory set for 100 PSI cut-in and 125 PSI cut-out. It has one 1/4" female NPT pressure port, an Auto/Off control and a 1/4" 90-degree compression unloader valve.

Specifications

Manufacturer Condor USA
Manufacturer Part Number 11GA2E
Series MDR11
Factory Cut-In / Cut-Out 100 / 125 PSI
Adjustable Pressure Range 25–160 PSI
Adjustable Differential 25–65 PSI
Pressure Connection One 1/4" female NPT port
Auto/Off Control Yes
Unloader 1/4" 90-degree compression
Contact Configuration DPST
Rated Operational Current 26 A at 240 VAC (UL/CSA); 20 A at 240 VAC (EN 60947)
Motor Switching Capacity 2 HP at 120 VAC; 3 HP at 240 VAC
Enclosure NEMA 1
Degree of Protection IP44

Application / Selection

Designed for compressed-air pressure control. Match the existing switch part number, pressure setting, pressure-port arrangement, unloader connection, Auto/Off control and electrical requirements. The 11GA2E is the single-port 100/125 PSI configuration with Auto/Off control and a compression unloader.
