Condor MDR11 11LA2E Pressure Switch - 120/150 PSI, Auto/Off & Unloader

Condor MDR11 11LA2E Pressure Switch - 120/150 PSI, Auto/Off & Unloader

Regular price $59.95 USD
Regular price Sale price $59.95 USD
Sale Sold out
Orders $25 or more ship free to the lower 48. Shipping details.
Condition : New

View full details

Product Description

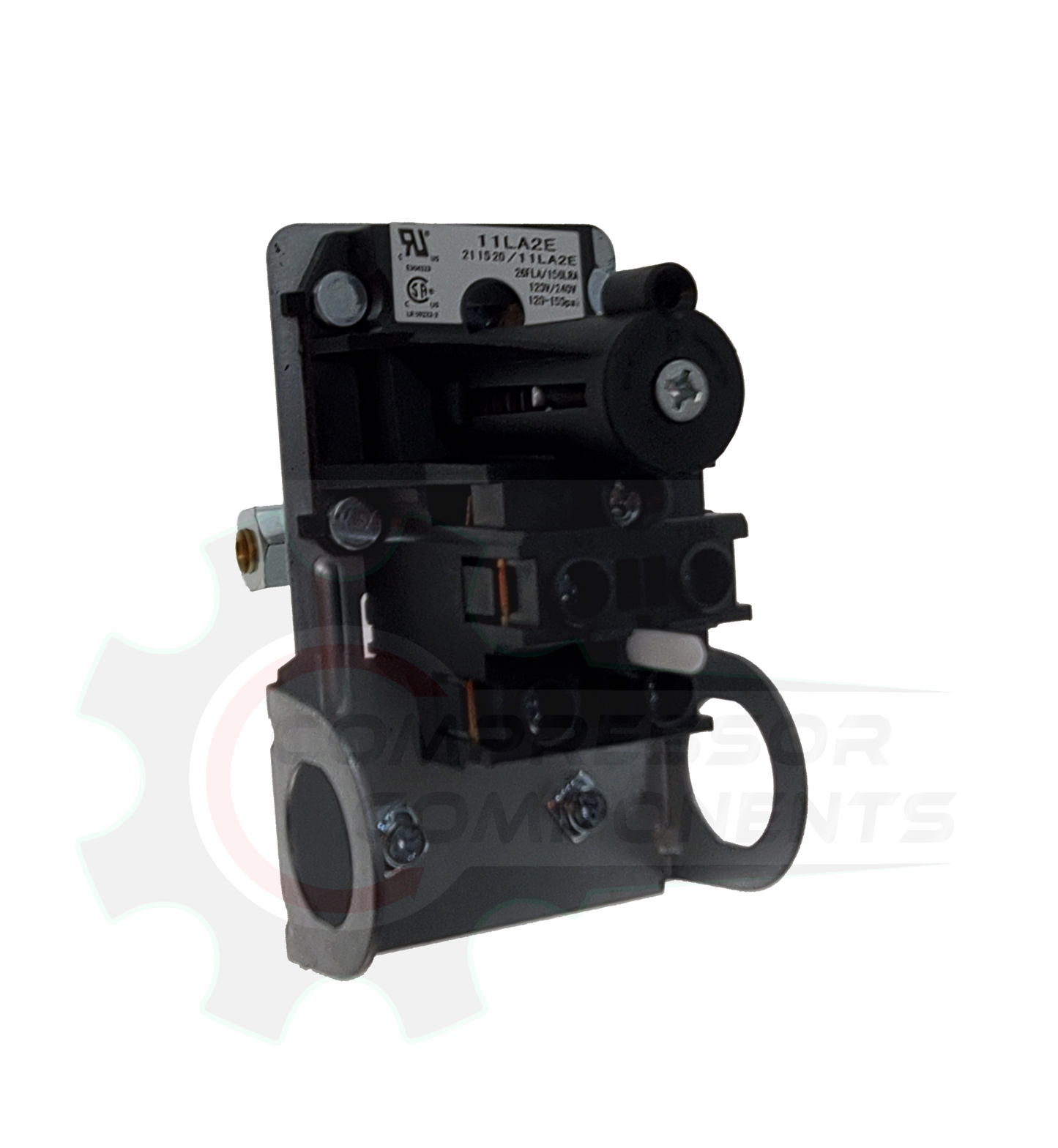

The Condor MDR11 11LA2E is a heavy-duty air-compressor pressure switch factory set for 120 PSI cut-in and 150 PSI cut-out. It has one 1/4" female NPT pressure port, an Auto/Off control and a 1/4" 90-degree compression unloader valve.

Specifications

Manufacturer Condor USA
Manufacturer Part Number 11LA2E
Series MDR11
Factory Cut-In / Cut-Out 120 / 150 PSI
Adjustable Differential 25–65 PSI
Pressure Connection One 1/4" female NPT port
Auto/Off Control Yes
Unloader 1/4" 90-degree compression
Contact Configuration DPST
AC Contact Rating 26 A at 240 VAC
Motor Switching Capacity 2 HP at 120 VAC; 3 HP at 240 VAC
Enclosure NEMA 1
Degree of Protection IP44

Application / Selection

Match the existing switch part number, pressure setting, pressure-port arrangement, unloader connection, Auto/Off control and electrical requirements. The 11LA2E is the single-port 120/150 PSI configuration with Auto/Off control and a compression unloader.
