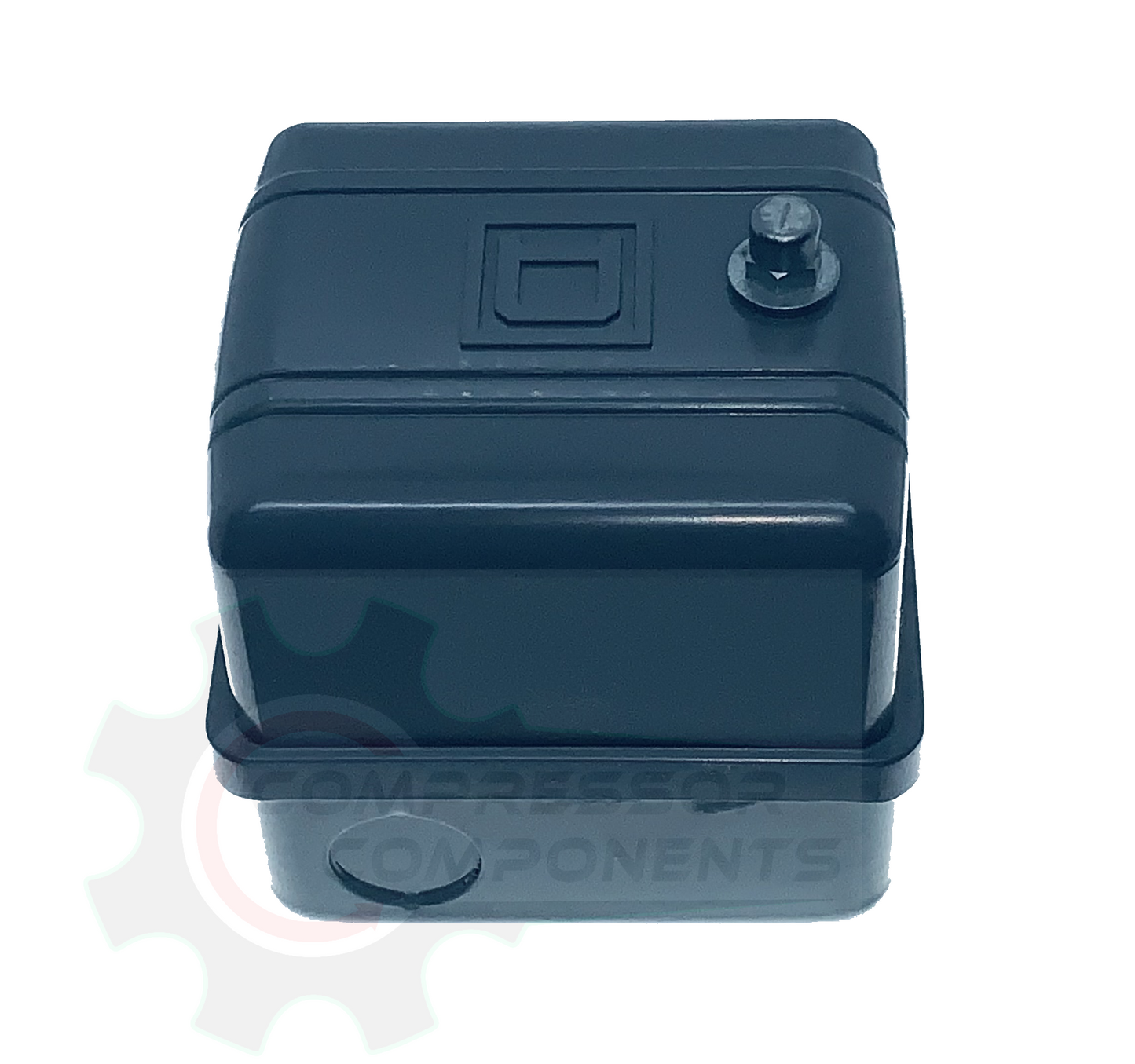

Square D 9013GHG2J62 Heavy-Duty Pressure Switch - 140/175 PSI

Square D 9013GHG2J62 Heavy-Duty Pressure Switch - 140/175 PSI

Regular price $139.95 USD
Regular price Sale price $139.95 USD
Sale Sold out
Orders $25 or more ship free to the lower 48. Shipping details.
Condition : New

Available: 2 in stock


View full details

Product Description

Square D pressure switches are now Telemecanique Sensors, manufactured by Schneider Electric.

The 9013GHG2J62 is a heavy-duty 9013GH Pumptrol pressure switch for direct control of electrically driven air compressors and water pumps. It is factory set for 140 PSI cut-in and 175 PSI cut-out with an adjustable differential.

Specifications

  • Part Number: 9013GHG2J62
  • Series: 9013GH / Pumptrol
  • Factory Setting: 140 / 175 PSI
  • Adjustable Range on Rising Pressure: 65–200 PSI
  • Adjustable Differential: 20–40 PSI
  • Pressure Connection: One 1/4" NPSF internal port
  • Contacts: 2 NC, DPST-DB, snap action
  • AC Contact Rating: 10 A at 575 VAC
  • Maximum Pressure: 200 PSI
  • Proof / Destruction Pressure: 300 PSI
  • Enclosure: NEMA 1

Application / Selection

Designed for higher electrical ratings than the light-duty 9013F family and suitable for direct motor control in pump and compressor applications. Match the exact part number, 140/175 PSI setting, adjustable differential, pressure connection and motor/electrical load before replacement.
