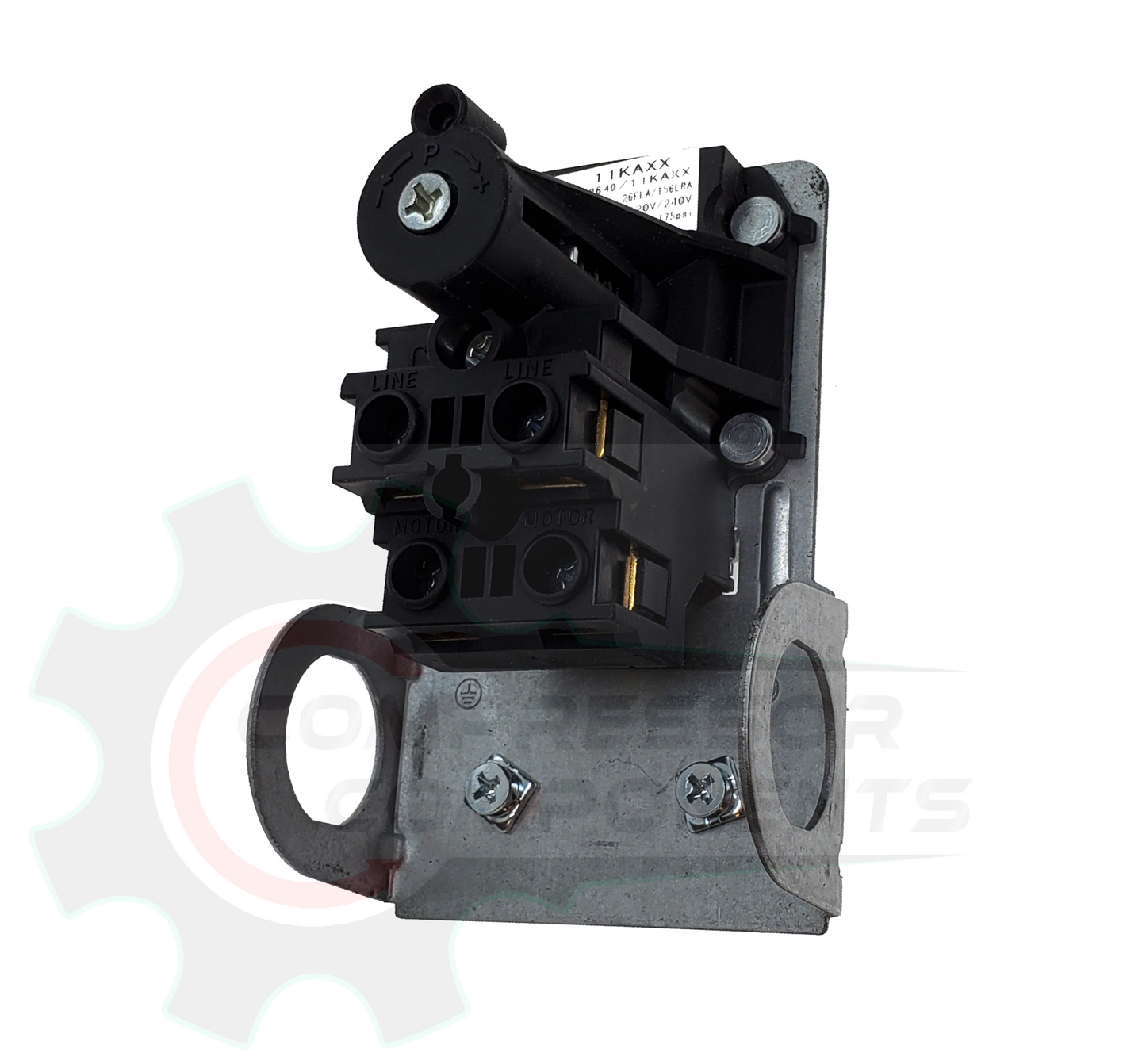

Condor MDR11 11KAXX Single-Port Pressure Switch - 140/175 PSI

Condor MDR11 11KAXX Single-Port Pressure Switch - 140/175 PSI

Regular price $49.95 USD
Regular price Sale price $49.95 USD
Sale Sold out
Orders $25 or more ship free to the lower 48. Shipping details.
Condition : New

View full details

Product Description

The Condor MDR11 11KAXX is a heavy-duty air-compressor pressure switch factory set for 140 PSI cut-in and 175 PSI cut-out. This standard configuration uses one 1/4" female NPT pressure connection and does not include an unloader valve or Auto/Off control.

Specifications

Manufacturer Condor USA
Manufacturer Part Number 11KAXX
Series MDR11
Factory Cut-In / Cut-Out 140 / 175 PSI
Adjustable Pressure Range 40–175 PSI
Adjustable Differential 30–65 PSI
Pressure Connection One 1/4" female NPT port
Unloader Valve None
Auto/Off Control None
Contact Configuration DPST
AC Contact Rating 26 A at 240 VAC
Motor Switching Capacity 2 HP at 120 VAC; 3 HP at 240 VAC
Enclosure NEMA 1

Application / Selection

Designed for compressed-air pressure-control applications. Match the existing switch part number, cut-in/cut-out setting, pressure connection, unloader configuration, control style and electrical requirements when selecting a replacement. The 11KAXX is the single-port 140/175 PSI standard configuration with no unloader and no Auto/Off control.
