Square D 9012GNG5 Adjustable Differential Pressure Switch - 3–150 PSI

Square D 9012GNG5 Adjustable Differential Pressure Switch - 3–150 PSI

Regular price $428.95 USD
Regular price Sale price $428.95 USD
Sale Sold out
Orders $25 or more ship free to the lower 48. Shipping details.
Condition : New

Available: 1 in stock


View full details

Product Description

Square D pressure switches are now Telemecanique Sensors, manufactured by Schneider Electric.

The 9012GNG5 is an industrial adjustable-differential pressure switch used for control and monitoring in pneumatic and hydraulic systems, including rotary screw air-compressor control applications. It regulates between two adjustable pressure thresholds and provides a Form C contact arrangement for control-circuit applications.

Suitable Replacement Applications

  • Allen-Bradley Bulletin 836 Style C pressure controls — suitable functional replacement in applications where the pressure range, 1/4" NPTF connection, SPDT 1NO/1NC contact logic and electrical control requirements match.
  • FS-Curtis RN18133-2 applications — Curtis used RN18133-2 Allen-Bradley Model 836 pressure controls on multiple rotary screw compressor models, including RSB40/50 and R/S60/75/100. Verify the original switch contact arrangement and required operating settings before replacement.

Specifications

  • Part Number: 9012GNG5
  • Series: 9012G
  • Adjustable Operating Range: 3–150 PSI
  • Adjustable Differential: approximately 4.2–22 PSI at mid-range
  • Maximum Pressure: 475 PSI

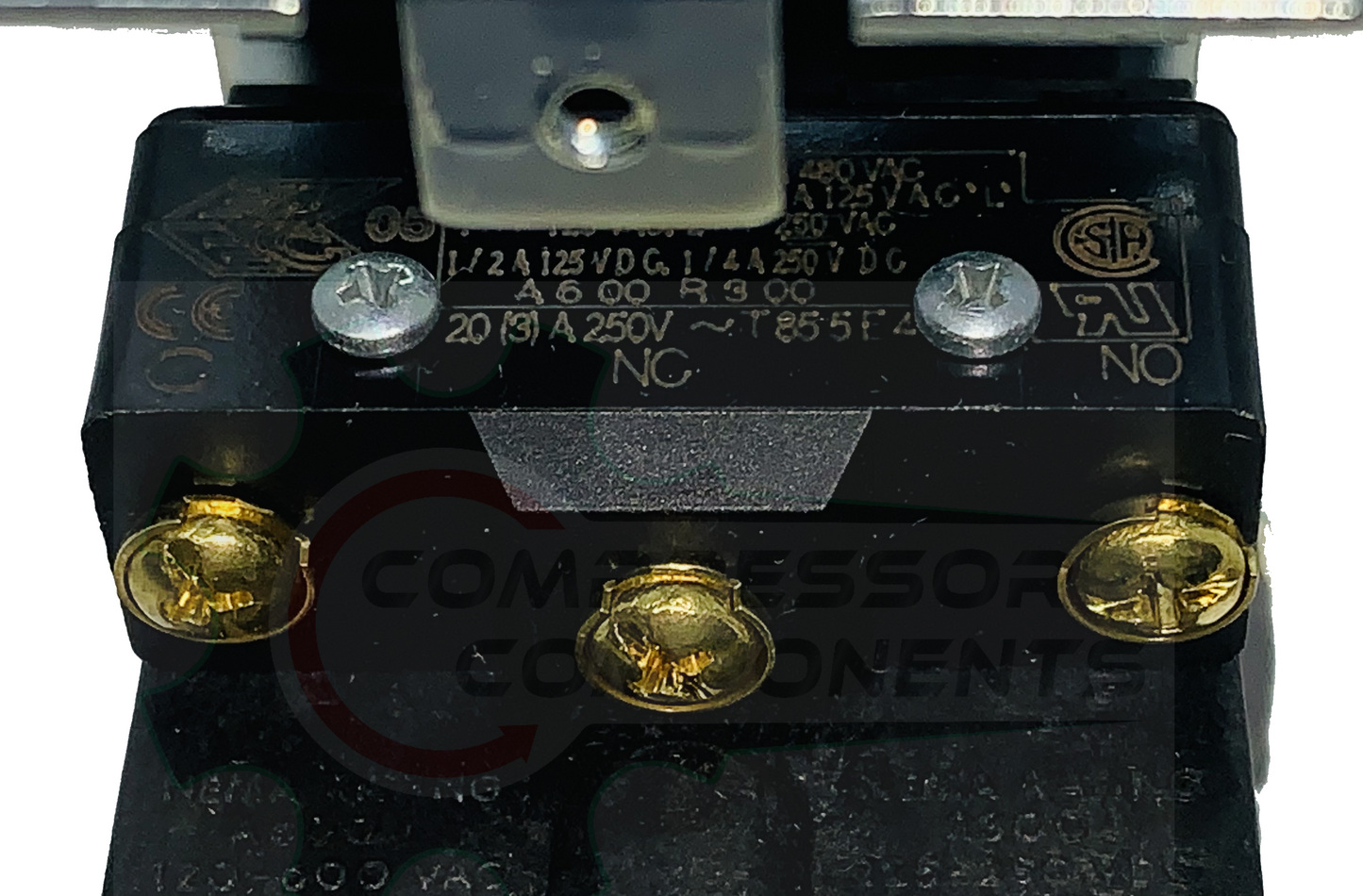

  • Contact Configuration: SPDT, Form C — 1 normally open / 1 normally closed
  • AC Control Rating: A600 — 6 A at 120 VAC; 3 A at 240 VAC
  • DC Control Rating: R300 — 0.22 A at 125 VDC; 0.27 A at 250 VDC
  • Pressure Connection: 1/4"-18 NPTF
  • Conduit Entry: 1/2" NPT
  • Pressure Actuator: Diaphragm
  • Enclosure: NEMA 1

Application / Selection

The 9012GNG5 is well suited to compressor-control applications requiring an industrial adjustable pressure control with both normally-open and normally-closed contacts. When replacing an Allen-Bradley 836 or Curtis RN18133-2 application, select by the machine's actual operating pressure, required differential, 1/4" NPTF connection, contact logic and electrical control load rather than by the catalog range endpoints alone.
