Product Description
Square D pressure switches are now Telemecanique Sensors, manufactured by Schneider Electric.

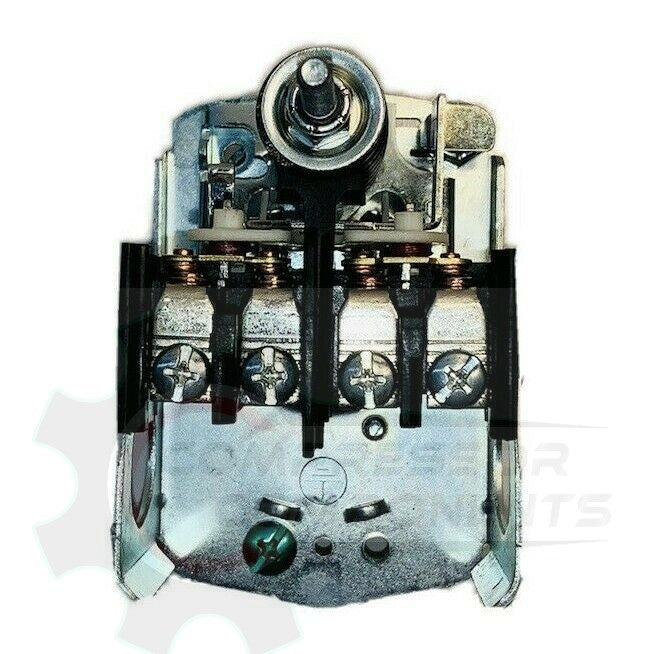

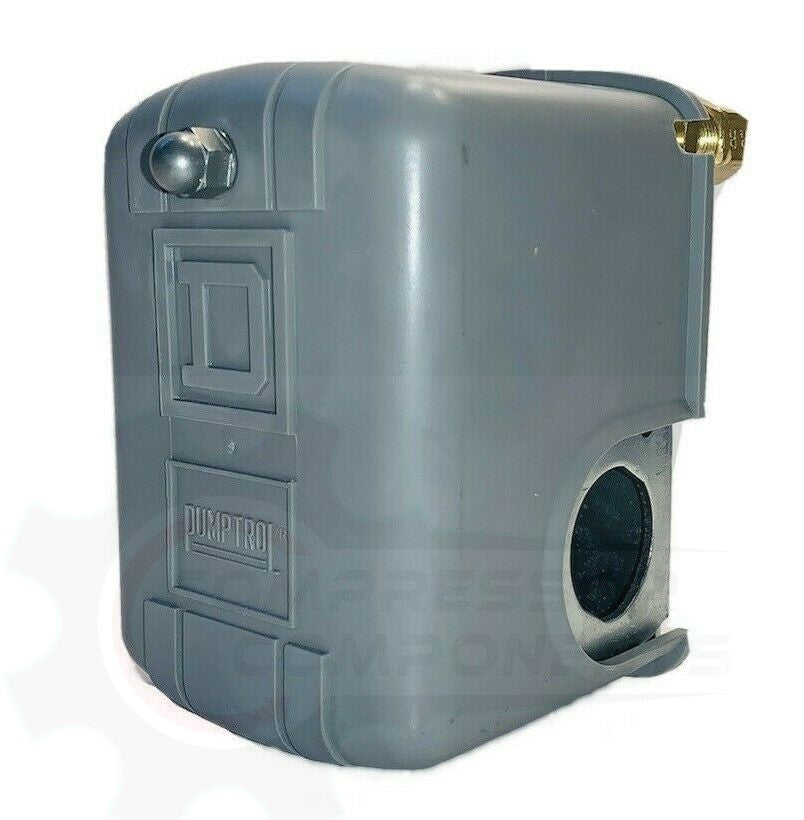

The 9013FHG2J27X is a single-port air-compressor pressure switch with an 80 PSI cut-in and 100 PSI cut-out setting and a 2-way pressure-release/unloader valve.
Specifications
| Brand | Telemecanique Sensors |
|---|---|
| Manufacturer | Schneider Electric |
| Part Number | 9013FHG2J27X |
| Series | 9013FHG / Pumptrol |
| Factory Setting | 80/100 PSI |
| Adjustable Range on Rising Pressure | 40–100 PSI |
| Fixed Differential | 20 PSI |
| Pressure Connection | One 1/4" NPSF internal port |
| Unloader | 2-way pressure-release valve |
| Contacts | 2 NC, DPST-DB, snap action |
| Motor Rating | 1.5 HP at 120V 1-phase; 2 HP at 240V 1-phase; 3 HP at 240V 3-phase |
| Enclosure | NEMA 1 |
Legacy Brand: Square D
Application / Selection
Designed to control small electrically driven air compressors. Match the part number, 80/100 PSI setting, single pressure port, unloader configuration and electrical requirements when selecting a replacement.
Connection specifications: One 1/4" NPSF internal pressure port; unloader connection: 1/4" compression.
