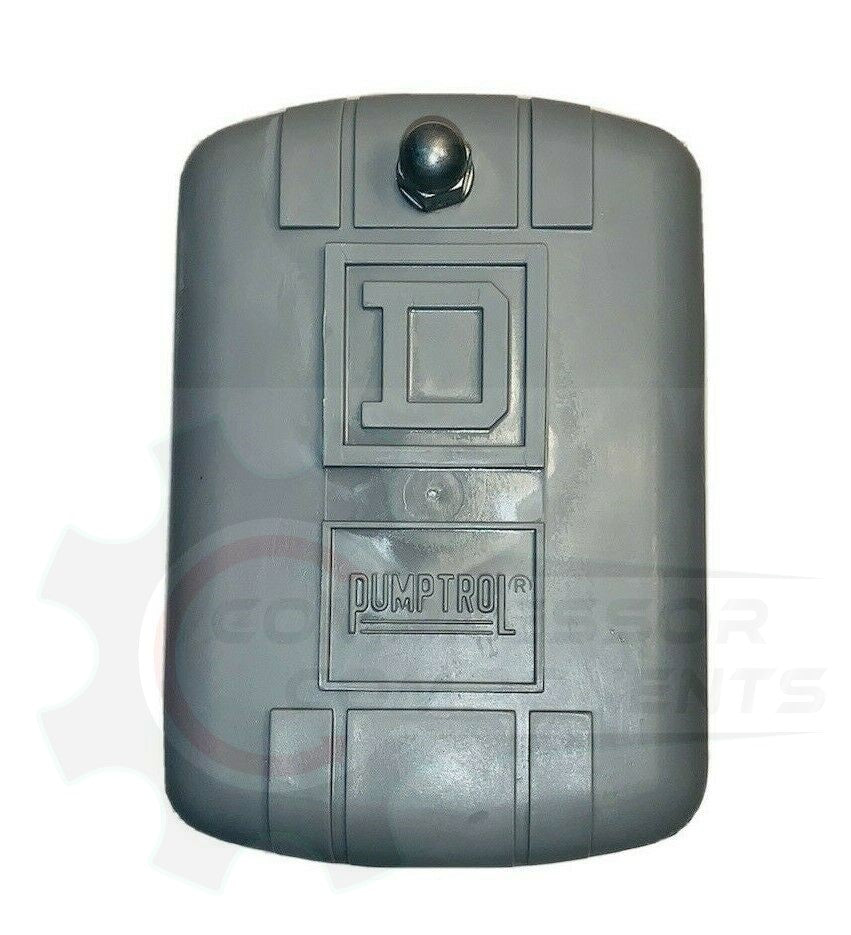

Square D 9013FHG12J52 Pressure Switch - 95/125 PSI

Square D 9013FHG12J52 Pressure Switch - 95/125 PSI

Regular price $54.95 USD
Regular price Sale price $54.95 USD
Sale Sold out
Orders $25 or more ship free to the lower 48. Shipping details.
Condition : New

Available: 6 in stock


View full details

Product Description

Square D pressure switches are now Telemecanique Sensors, manufactured by Schneider Electric.

The 9013FHG12J52 is a single-port air-compressor pressure switch with a 95 PSI cut-in and 125 PSI cut-out setting.

Specifications

Brand Telemecanique Sensors
Manufacturer Schneider Electric
Part Number 9013FHG12J52
Series 9013FHG / Pumptrol
Factory Setting 95/125 PSI
Adjustable Range on Rising Pressure 70–150 PSI
Fixed Differential 30 PSI
Pressure Connection One 1/4" NPSF internal port
Contacts 2 NC, DPST-DB, snap action
Motor Rating 1.5 HP at 120V 1-phase; 2 HP at 240V 1-phase; 3 HP at 240V 3-phase
Enclosure NEMA 1

Legacy Brand: Square D

Application / Selection

Designed to control small electrically driven air compressors. Match the part number, 95/125 PSI setting, pressure connection and electrical requirements when selecting a replacement.
