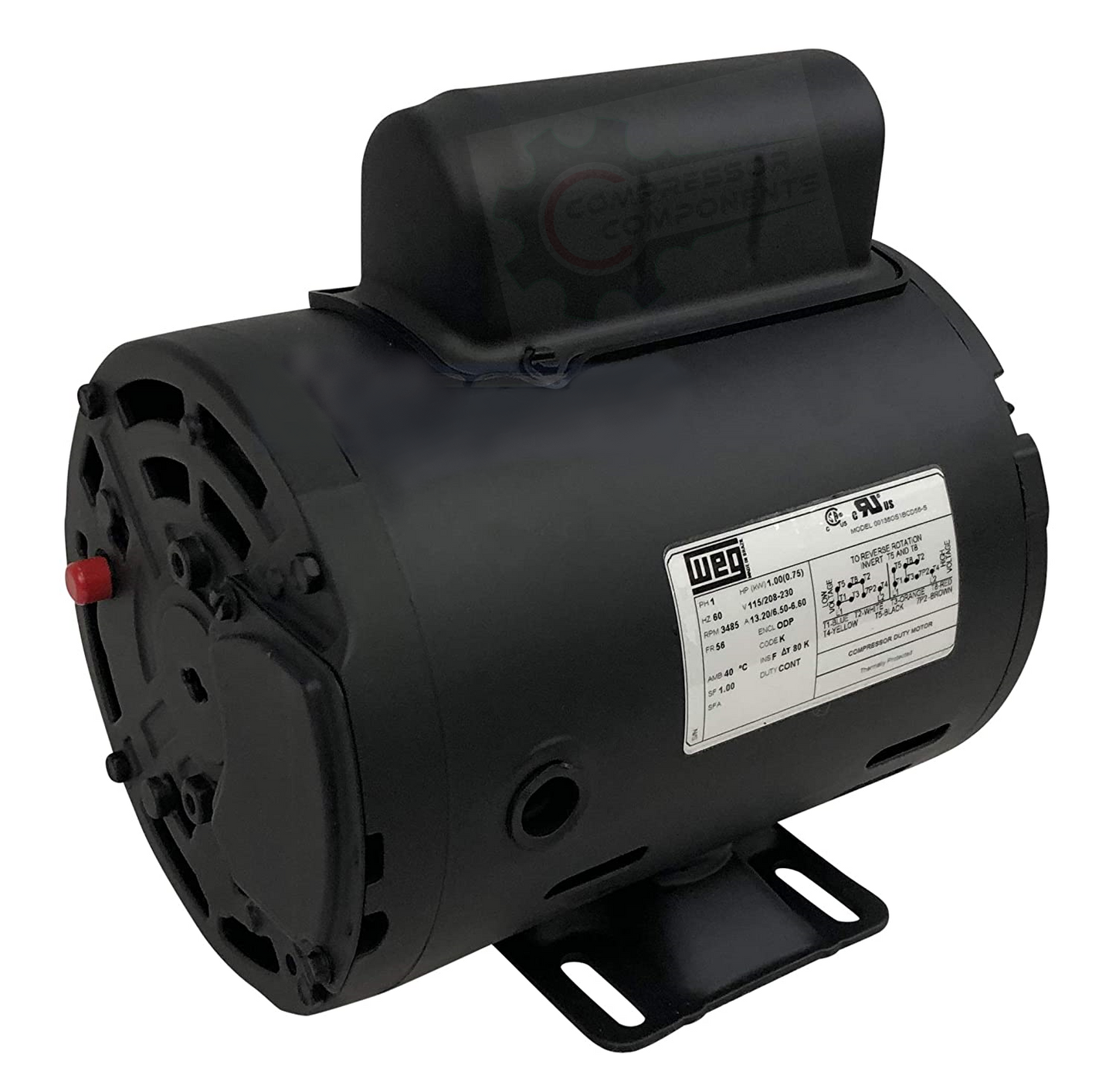

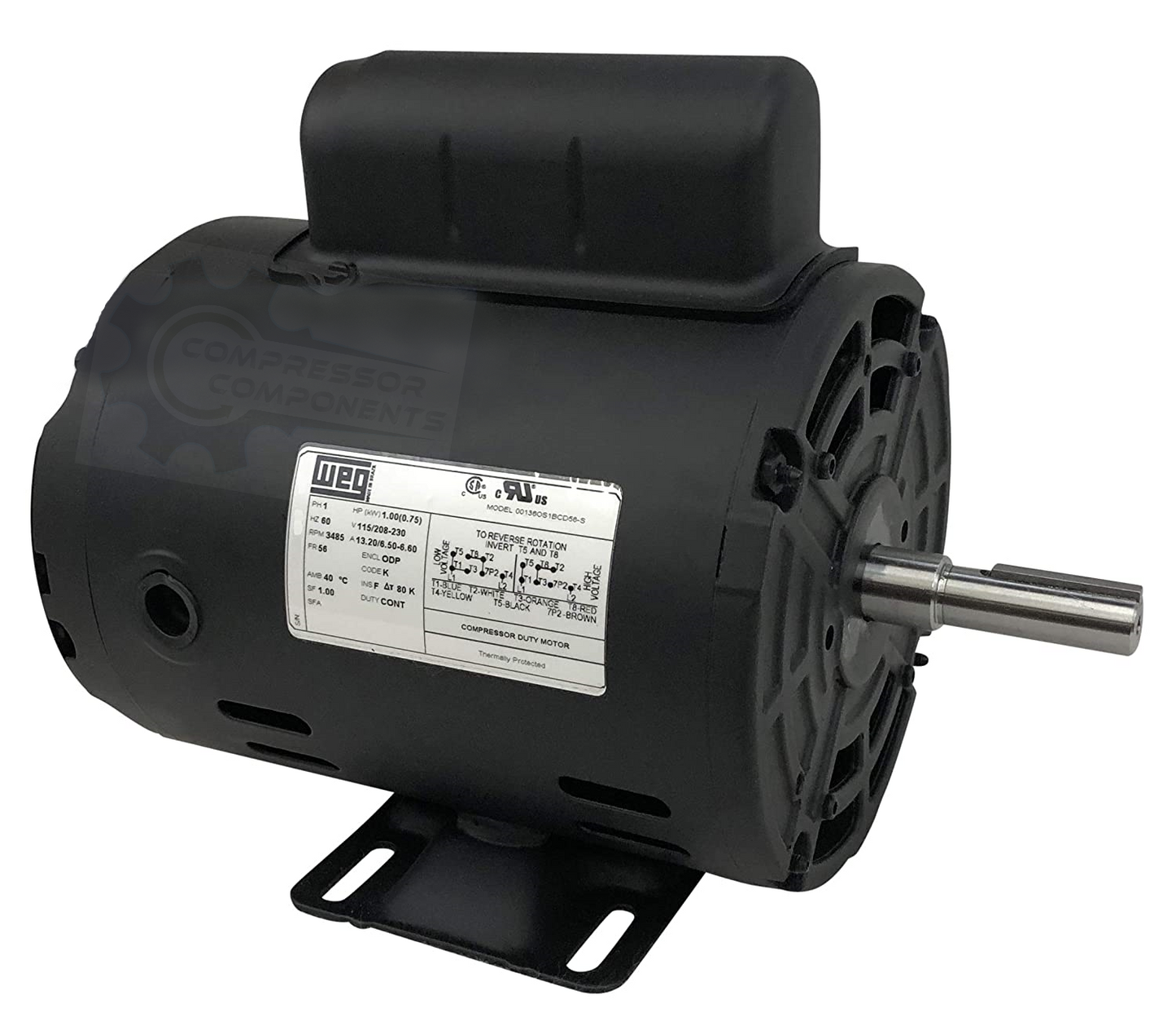

WEG 00156OS1BCD56-S 1.5 HP 56 Frame 115/208-230V Single-Phase ODP Compressor Motor
WEG 00156OS1BCD56-S 1.5 HP 56 Frame 115/208-230V Single-Phase ODP Compressor Motor
Regular price
$447.95 USD
Regular price
Sale price
$447.95 USD
Unit price
per
Orders $25 or more ship free to the lower 48. Shipping details.
Condition :
New
Couldn't load pickup availability
View full details
Product Description
WEG 00156OS1BCD56-S is a 1.5 HP single-phase compressor-duty motor for compatible air compressor and power-equipment applications requiring a 56-frame, high-speed ODP motor.

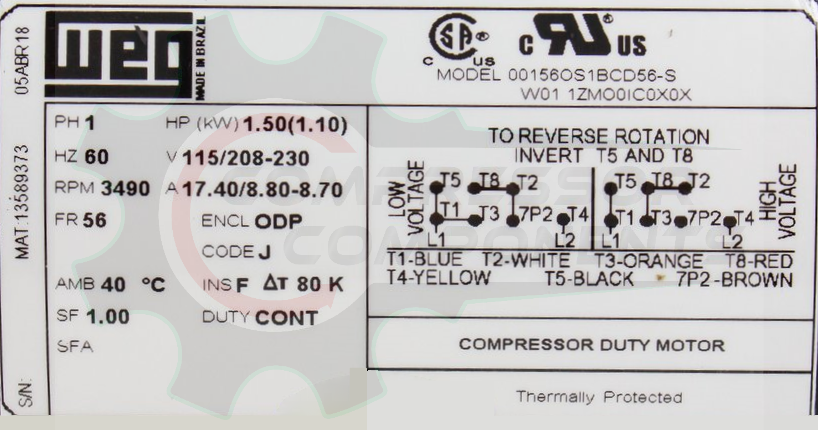

Specifications
| Horsepower | 1.5 HP |
|---|---|
| Phase | Single phase |
| Voltage | 115/208-230V |
| Frequency | 60 Hz |
| Frame | NEMA 56 |
| Poles | 2 |
| Rated speed | 3490 RPM |
| Synchronous speed | 3600 RPM |
| Full-load amps | 17.4 / 8.8-8.7A |
| Service factor | 1.00 |
| Enclosure | ODP (Open Drip Proof) |

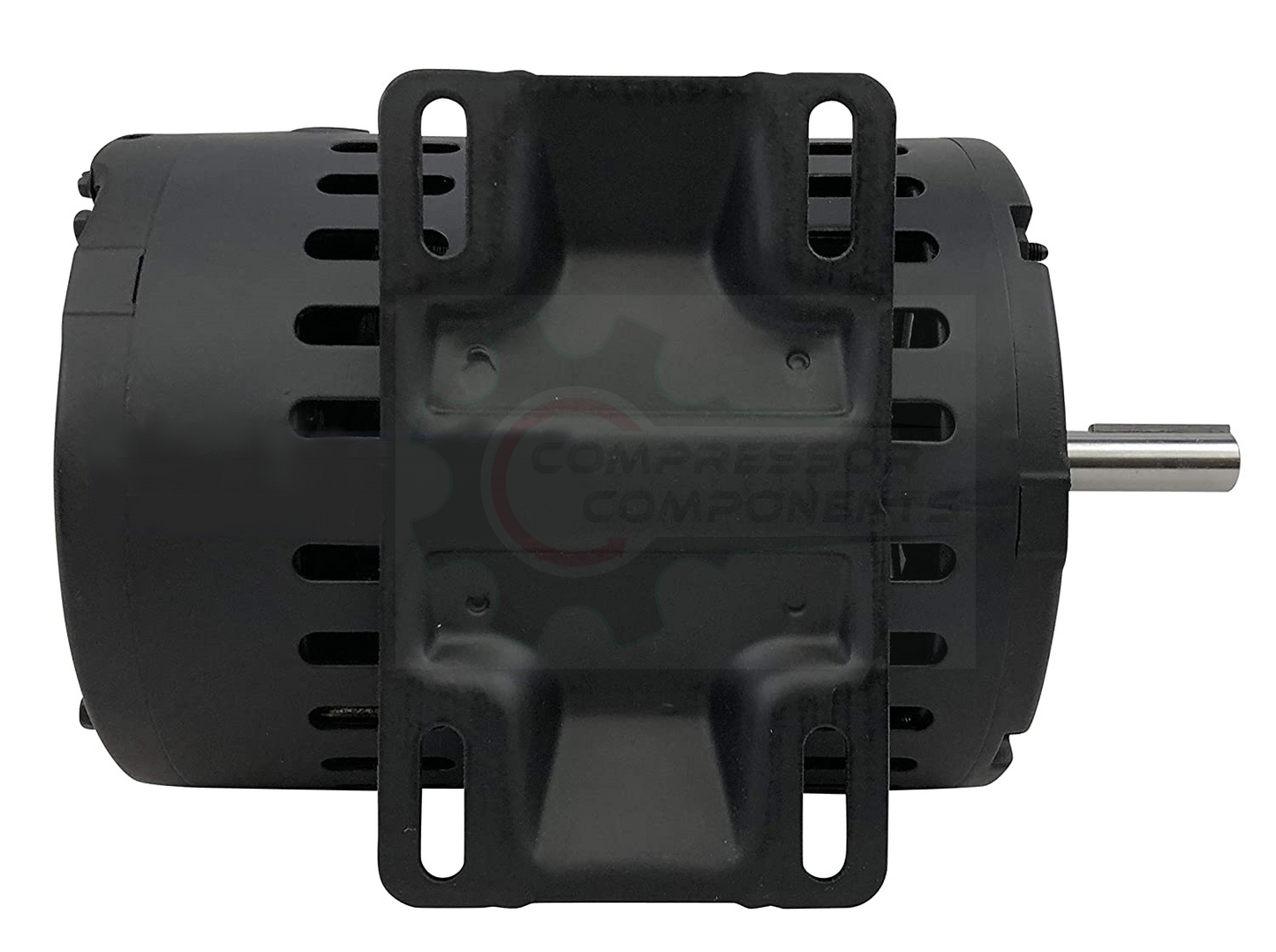

| Mounting | Foot mounted, F-1 |
| Shaft diameter | 5/8 in. |
| Rotation | Reversible |
Verified Motor Cross-Reference
WEG 00156OS1BCD56-S replaces WEG 00156OS1BCDD56.
Application / Selection
Use where the driven equipment calls for a 1.5 HP, 56-frame, single-phase ODP compressor-duty motor. No exact compressor make/model fitment is claimed without documentation. Verify horsepower, frame, voltage, shaft dimensions, mounting and rotation requirements before ordering.
