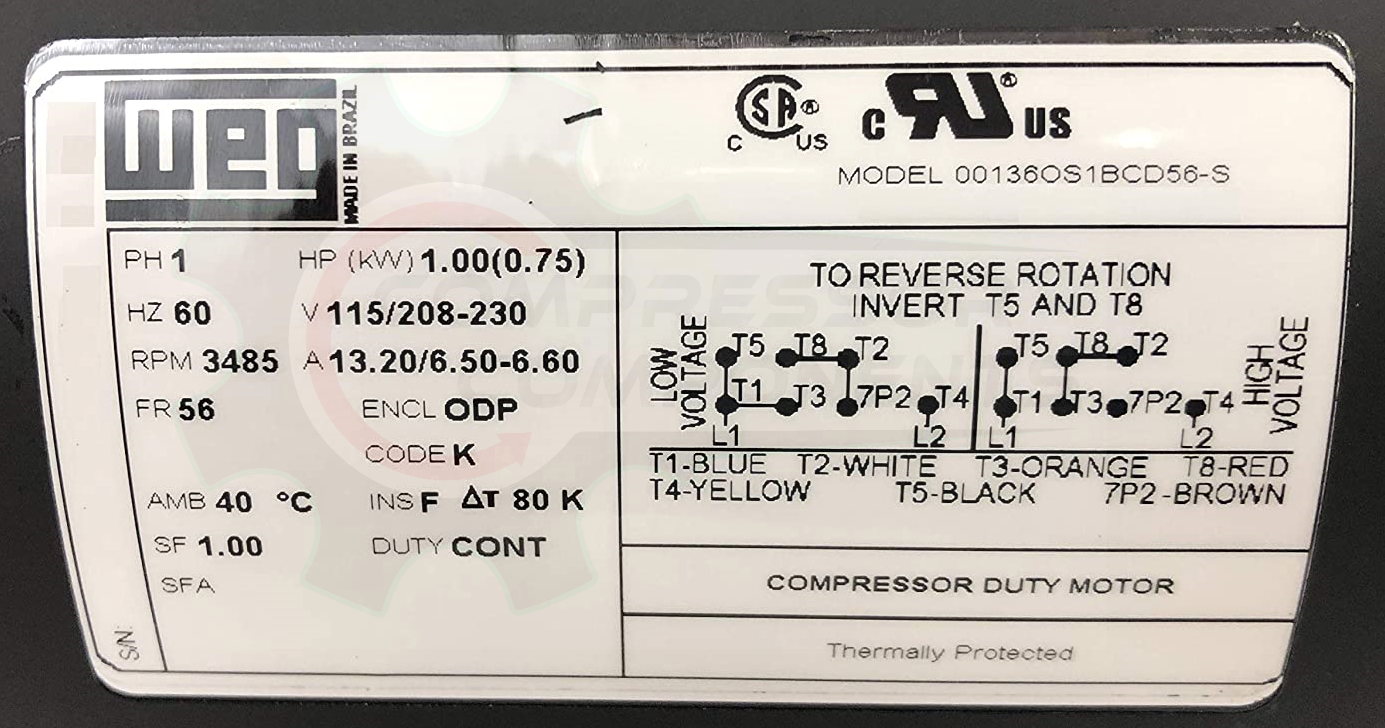

WEG 00136OS1BCD56-S 1 HP 56 Frame 115/208-230V Single-Phase ODP Compressor Motor

WEG 00136OS1BCD56-S 1 HP 56 Frame 115/208-230V Single-Phase ODP Compressor Motor

$399.95 USD
$399.95 USD
Sale Sold out
Orders $25 or more ship free to the lower 48. Shipping details.
Condition : New
Tell a friend
View full details

Product Description

WEG 00136OS1BCD56-S is a 1 HP single-phase compressor-duty motor for belt-driven air compressor and other compatible equipment applications requiring a 56-frame, high-speed ODP motor.

Specifications

Horsepower 1 HP
Phase Single phase
Voltage 115/208-230V
Frequency 60 Hz
Frame NEMA 56
Poles 2
Rated speed 3485 RPM
Synchronous speed 3600 RPM
Full-load amps 13.2 / 6.5-6.6A
Service factor 1.00
Enclosure ODP (Open Drip Proof)
Mounting Foot mounted, F-1
Shaft diameter 5/8 in.
Rotation Reversible

Verified Motor Cross-Reference

WEG 00136OS1BCD56-S replaces WEG 00136OS1BCDB56.

Application / Selection

Designed for compressor-duty service where the equipment requires a 1 HP, 56-frame, single-phase ODP motor. No exact compressor make/model fitment is claimed without documentation. Before ordering, verify horsepower, frame, voltage, shaft dimensions, mounting, rotation requirements and available electrical service against the motor being replaced.
