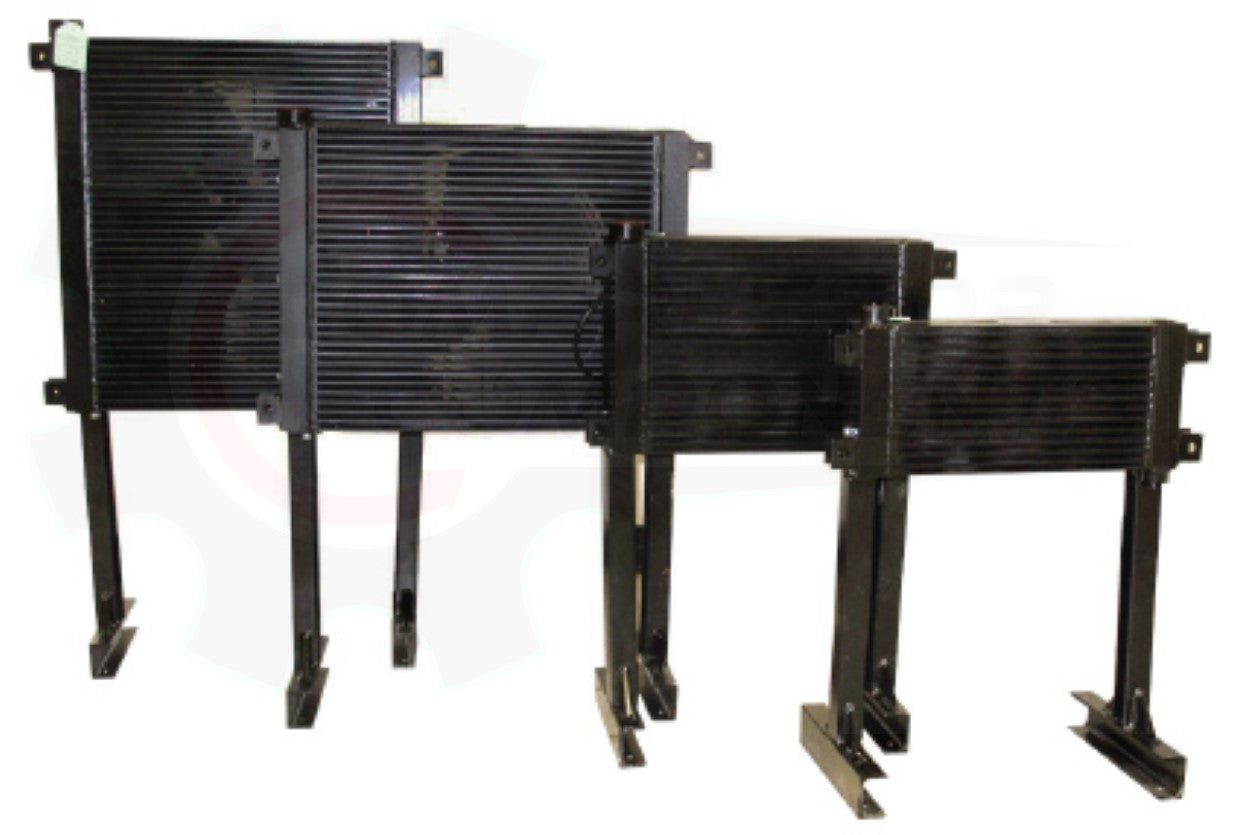

Castair FSAC50 Free-Standing Aftercooler - 50 CFM, 1" NPT
Castair FSAC50 Free-Standing Aftercooler - 50 CFM, 1" NPT
Regular price
$942.95 USD
Regular price
Sale price
$942.95 USD
Unit price
per
Orders $25 or more ship free to the lower 48. Shipping details.
Condition :
New
Couldn't load pickup availability
View full details
Product Description
Castair FSAC50 is a free-standing, fan-cooled compressed-air aftercooler rated for 50 CFM. It is designed to reduce compressed-air discharge temperature and help condense moisture before air enters the receiver or downstream treatment equipment.
Specifications
| Manufacturer | Castair |
|---|---|
| Model | FSAC50 |
| Capacity | 50 CFM |
| Inlet / outlet connections | 1" NPT |
| Dimensions | 21" L × 12" W × 31" H |
| Weight | 40 lb |
| Electrical | 115V, single phase, 60 Hz |
| Maximum operating pressure | 250 PSIG |
| Maximum inlet temperature | 350°F |
| Mounting | Floor or suspended |
| Airflow orientation | Horizontal or vertical |
Under typical conditions, the aftercooler is designed to cool compressed air to approximately 15°F above ambient temperature. Size the aftercooler at or above the compressor's actual delivered CFM.
