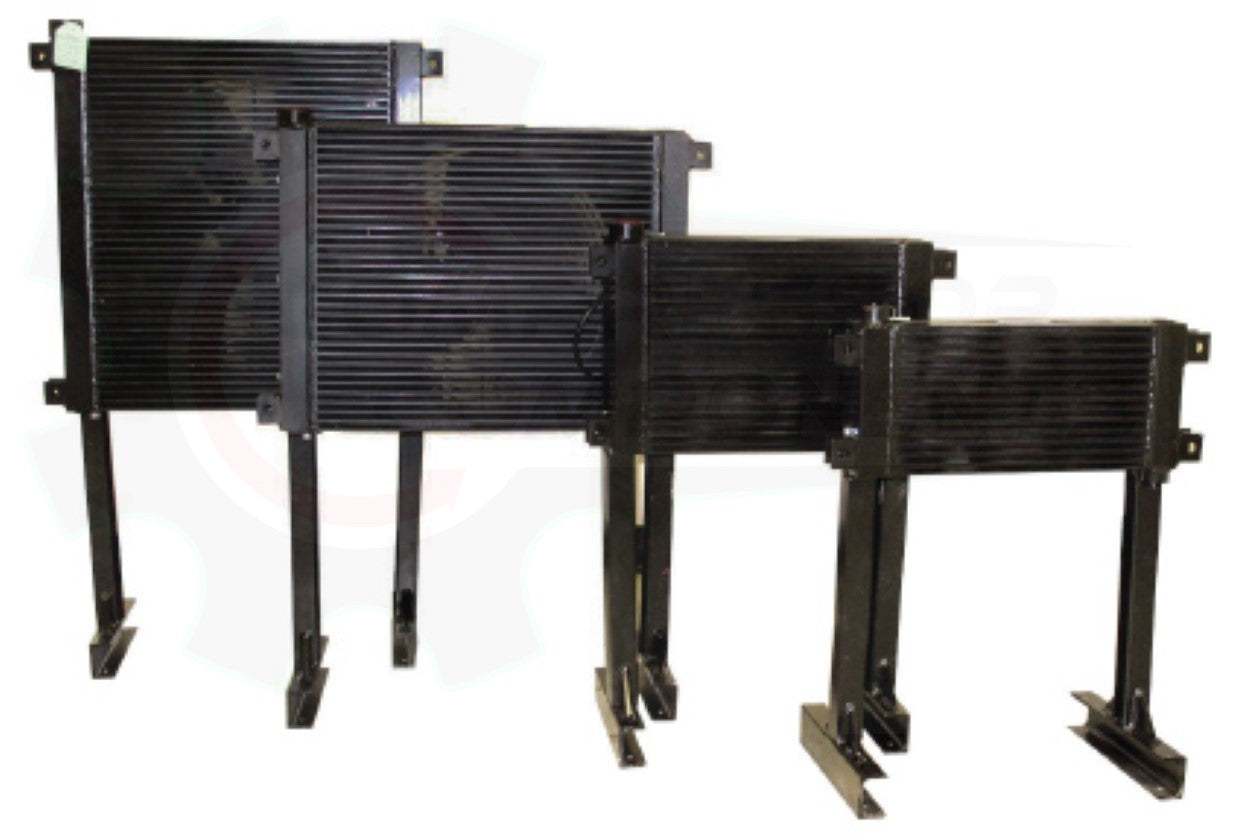

Castair FSAC75 Free-Standing Aftercooler - 75 CFM, 1" NPT
Castair FSAC75 Free-Standing Aftercooler - 75 CFM, 1" NPT
Regular price
$1,318.95 USD
Regular price
Sale price
$1,318.95 USD
Unit price
per
Orders $25 or more ship free to the lower 48. Shipping details.
Condition :
New
Couldn't load pickup availability
View full details
Product Description
Castair FSAC75 is a free-standing, fan-cooled compressed-air aftercooler rated for 75 CFM. It is designed to reduce compressed-air discharge temperature and help condense moisture before air enters the receiver or downstream treatment equipment.
Specifications
| Manufacturer | Castair |
|---|---|
| Model | FSAC75 |
| Capacity | 75 CFM |
| Inlet / outlet connections | 1" NPT |
| Dimensions | 27" L × 15" W × 36" H |
| Weight | 70 lb |
| Electrical | 115V, single phase, 60 Hz |
| Maximum operating pressure | 250 PSIG |
| Maximum inlet temperature | 350°F |
| Mounting | Floor or suspended |
| Airflow orientation | Horizontal or vertical |
Under typical conditions, the aftercooler is designed to cool compressed air to approximately 15°F above ambient temperature. Size the aftercooler at or above the compressor's actual delivered CFM.
