WEG 01018ES1E215T-W22 10 HP 215T 208-230V Single-Phase TEFC Motor
WEG 01018ES1E215T-W22 10 HP 215T 208-230V Single-Phase TEFC Motor
Regular price
$1,649.95 USD
Regular price
Sale price
$1,649.95 USD
Unit price
per
Free LTL freight to the lower 48. Liftgate +$150. Shipping & delivery terms.
Condition :
New
Freight delivery — Required
Please select an unloading method before adding this motor to your cart.
Couldn't load pickup availability
View full details
Product Description

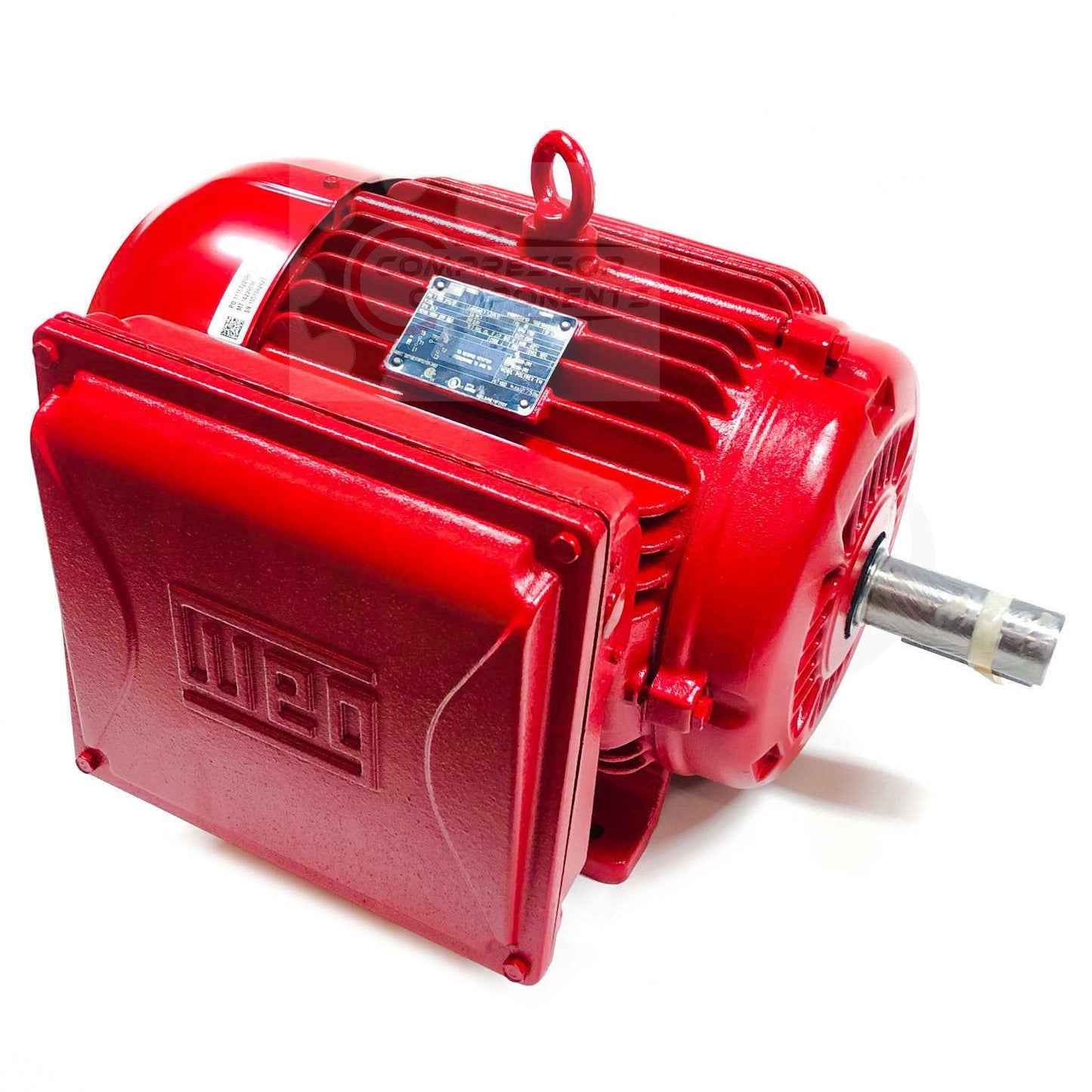

WEG 01018ES1E215T-W22 is a 10 HP single-phase W22 cast-iron TEFC motor for 1800 RPM-class industrial applications.
FREE LTL Freight Shipping
FREE LTL freight shipping is included with this motor within the contiguous United States.
A delivery/unloading method must be selected before adding this motor to your cart. Liftgate service is available for an additional $150.00.
Specifications
| Horsepower | 10 HP |
|---|---|
| Phase | Single phase |
| Voltage | 208-230V |
| Frame | NEMA 215T |
| Rated speed | 1740 RPM |
| Full-load amps | 44.5A @ 208V / 40.8A @ 230V |
| Service factor | 1.15 at 230V / 1.00 at 208V |
| Enclosure | TEFC |
| Shaft diameter | 1-3/8 in. |
| Rotation | Reversible CW/CCW |
| Approximate weight | 192 lb |
Application / Selection
Verify horsepower, voltage, frame, mounting, shaft, RPM and rotation before ordering.
