WEG RW27-2D3-U004 2.8–4.0A 3-Pole Thermal Overload Relay
WEG RW27-2D3-U004 2.8–4.0A 3-Pole Thermal Overload Relay
Regular price
$64.95 USD
Regular price
Sale price
$64.95 USD
Unit price
per
Orders $25 or more ship free to the lower 48. Shipping details.
Condition :
New
Couldn't load pickup availability
View full details
Product Description

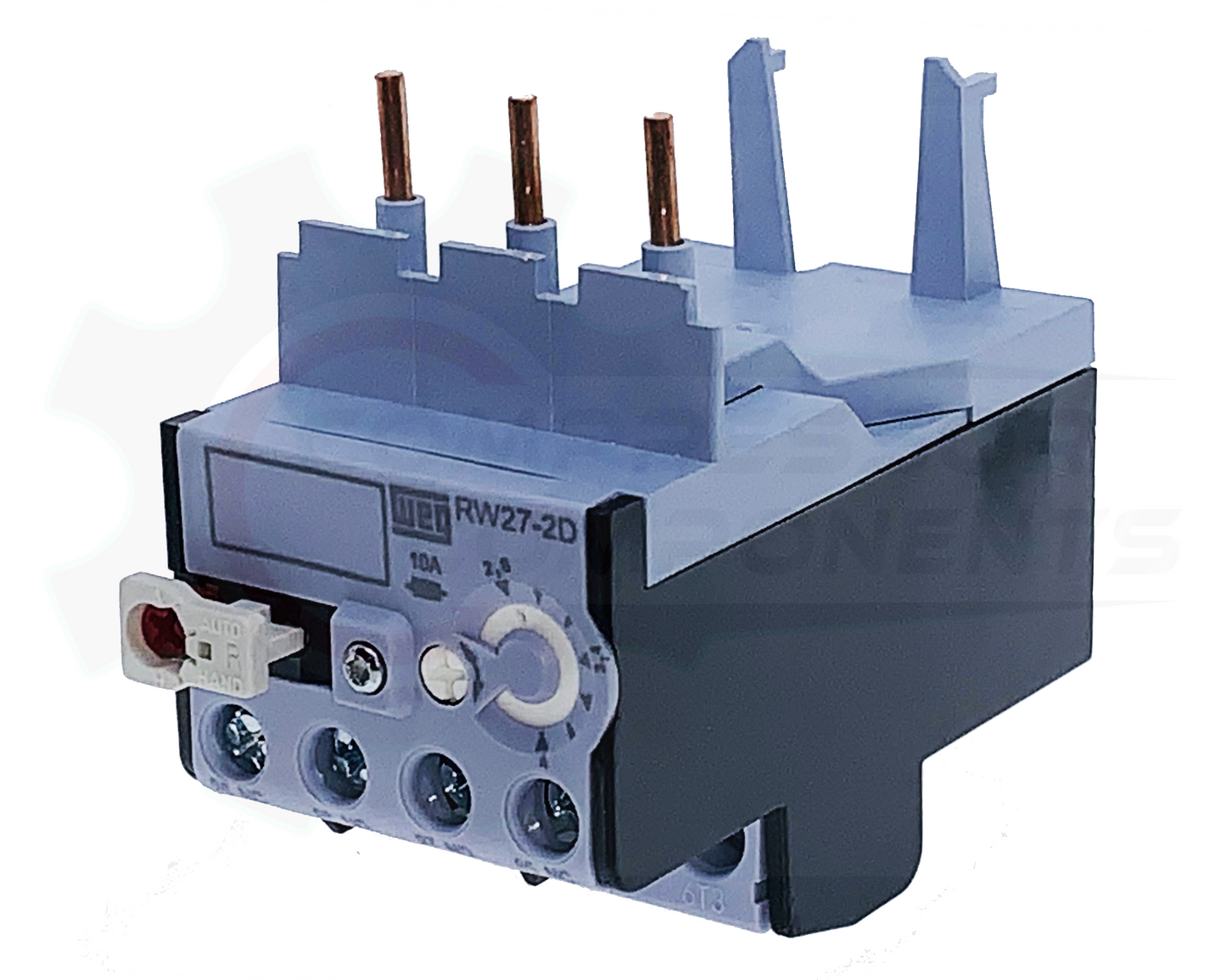

WEG RW27-2D3-U004 Thermal Overload Relay
Three-pole, Class 10 bimetallic thermal overload relay with an adjustable current range of 2.8–4.0 A. Designed for direct mounting to WEG CWB9 through CWB38 contactors. WEG product code 12140447.
Technical Specifications
| WEG SKU | RW27-2D3-U004 |
|---|---|
| WEG product code | 12140447 |
| Adjustable overload range | 2.8–4.0 A |
| Poles | 3 |
| Trip class | Class 10 |
| Auxiliary contacts | 1NO + 1NC |
| Reset | Manual or automatic |
Compatible contactor platform: CWB9–CWB38
Phase-loss sensitivity
Ambient temperature compensation
Compatible WEG Contactors We Carry
- CWB12-11-30D02 — 12A, 3-pole, 24 VAC coil
- CWB12-11-30D15 — 12A, 3-pole, 120 VAC coil
- CWB12-11-30V24 — 12A, 3-pole, 208–240 VAC coil
- CWB25-11-30D02 — 25A, 3-pole, 24 VAC coil
- CWB25-11-30C03 — 25A, 3-pole, 24 VDC coil
- CWB25-11-30D15 — 25A, 3-pole, 120 VAC coil
- CWB25-11-30V24 — 25A, 3-pole, 208–240 VAC coil
Selection Note: Mechanical compatibility with a CWB9–CWB38 contactor does not by itself determine the correct overload for a motor. Select the overload range according to the motor nameplate current and applicable installation requirements.
